Quick Details
-
Model Number:
-
ZL-4005
-
Material:
-
SUS
-
Size:
-
500 (W)*300 (H) mm or custom
-
Name:
-
X-ray Baggage Scanner
-
Channel size:
-
1000 (W) * 800 (H) mm or custom
-
Ray beam divergence angle:
-
80°
-
Conveyor speed:
-
0.22m / s
-
Conveyor belt rated load:
-
220 kg
-
Noise level:
-
<58dB
-
Leakage dose:
-
<0.1μGy/h
-
Power loss:
-
1.5KW (maximum)
-
Working voltage:
-
220VAC (±10%) 50±3HZ
Quick Details
-
Warranty:
-
2 years, 24 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-4005
-
Material:
-
SUS
-
Size:
-
500 (W)*300 (H) mm or custom
-
Name:
-
X-ray Baggage Scanner
-
Channel size:
-
1000 (W) * 800 (H) mm or custom
-
Ray beam divergence angle:
-
80°
-
Conveyor speed:
-
0.22m / s
-
Conveyor belt rated load:
-
220 kg
-
Noise level:
-
<58dB
-
Leakage dose:
-
<0.1μGy/h
-
Power loss:
-
1.5KW (maximum)
-
Working voltage:
-
220VAC (±10%) 50±3HZ

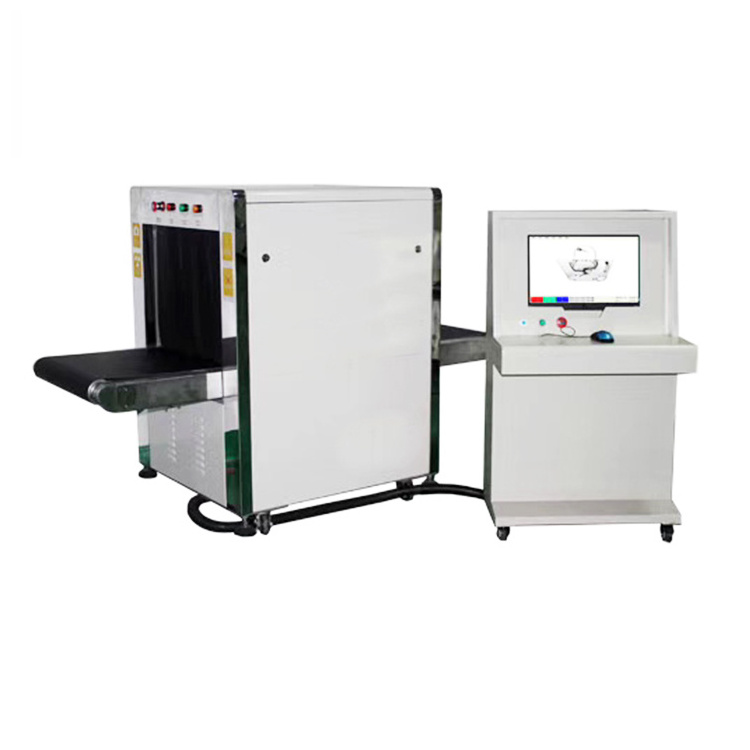

Subway Cargo X Ray Baggage Scanner Security Detector X-ray Airport Luggage Scanner Equipment
Main purpose and scope of use:
1. X-ray baggag scanner can quickly and effectively detect various dangerous items hidden in small items, parcels, mail, small bags, suitcases, shoulder bags, backpacks. Such as guns, knives, detonators, fireworks and firecrackers.
2. And widely used in airports, railway stations, bus stations, high-speed rail stations, customs, express companies, hotels, tourist attractions, government agencies, luggage storage, embassies, sports venues, convention centers, courts, shopping centers, cultural venues , Post office, shoe factory, toy factory, luggage factory, handbag factory, school, prison and other security inspection occasions.
5030:
|
Channel size |
500 (width) × 300 (height) mm or custom |
|
Conveyor speed |
0.22m/s |
|
Conveyor belt rated load |
150 kg |
|
Resolution |
0.101 mm diameter wire |
|
Penetration |
18 mm steel film |
|
Safety |
For ISO1600 film |
|
Safety leakage dose |
<0.05μGy/h |
|
X-ray generator |
beam direction |
|
Tube current |
0.4~0.5mA (adjustable) |
|
Tube voltage |
80 KV (adjustable) |
|
Beam divergence angle |
60° |
|
Cooling / duty cycle |
sealed oil cooling / 100% |
10080:
|
1000 (width) × 800 (height) mm or custom |
|
|
Conveyor speed |
0.22m / s |
|
Conveyor belt rated load |
220 kg |
|
Resolution |
0.101 mm diameter metal wire |
|
Spatial resolution |
Horizontal:1.3 mm in diameter Vertical:1.0 mm in diameter |
|
Penetration resolution |
diameter 0.511 mm |
|
Penetration |
34 mm steel plate |
|
Film Safety |
ISO1600 Film Safety |
|
Leakage dose |
<0.1μGy/h |
Unique features:
1. Sound and light alarms are issued when the sound and light alarms meet the conditions.
2. Energy-saving design: The machine can automatically sense the object, and the baggage is put on the machine to start running. No baggage, the machine is still.
3. Environmental design: lead curtain plus protective film to prevent customers from touching lead and avoid lead pollution.
4. Dynamic picture switching: The picture can be switched when it is still, and it can be switched freely when it is dynamic.
5. The eagle eye can easily see the current zoomed area
6. One-button shutdown control: Only need to rotate the key when shutting down, the device automatically shuts down safely, reducing equipment failure.
Use environment:
|
Working temperature/humidity |
0°C~45°C/20%~95% (non-condensing) |
|
Storage temperature / humidity |
-20 ° C ~ 60 ° C / 20% ~ 95% (non-condensing) |
|
Working voltage |
220VAC (±10%) 50±3HZ |
|
Power loss |
1.5KW (maximum) |
|
Noise level |
<58dB |
Image Processing System:
|
Multi-energy color |
organic matter is shown in orange, inorganic is shown in blue, and mixture is shown in green |
|
High energy / low energy |
Two energy switching display. |
|
Explosives Assisted Detection |
More helpful in detecting dangerous goods such as some typical explosives. |
|
1, X-ray sensor |
L-shaped photodiode array detector (multi-energy), 12-bit depth. |
|
2, Display |
high resolution 22 inch LCD monitor. |
|
3, Color image display |
24-bit true color display according to material material. |
|
4,Edge enhancement |
the outline of the object is clearer. |
|
5, Super Image Enhancement |
Image details are clearer. |
|
6, High penetration display |
Improve the contrast of bright areas in the image, making the easy-to-penetrate area clearer. |
|
7, Low penetration display |
Improve the contrast of dark areas in the image, making the difficult-to-penetrate area clearer. |
|
8, Magnifying glass |
partial zoom function, real-time dynamic zoom. |
|
9, Brighten/Darken |
Increase the brightness of the image/darkness of the image. |
|
10, Image pull back / front pull |
display the first 20 images, and can perform any image processing on the image. |
|
11, Image restoration |
Image display returns to its original state. |
|
12, Image storage |
save any image in real time, and can perform arbitrary image processing and save it continuously. |
