Quick Details
-
Voltage:
-
220/380/400/415V, 220V/240V/380V/415V
-
Dimension(L*W*H):
-
1950*900*1950mm
-
Weight (T):
-
2
-
Name:
-

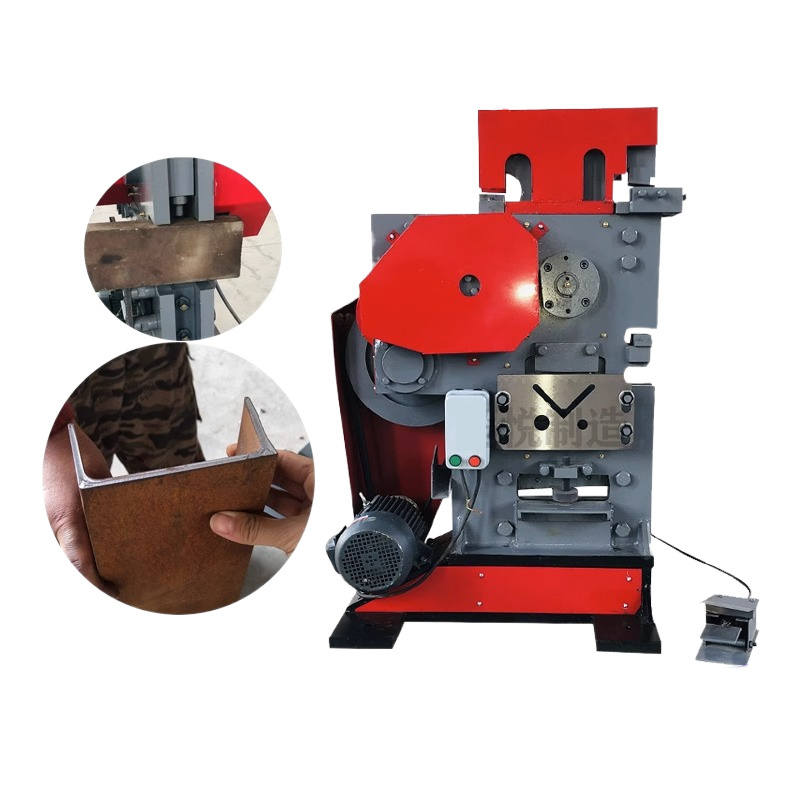

multifunctional punching and shearing machine
-
Cutting Material:
-
Steel, iron, copper, aluminum
-
Weight:
-
2T
-
Punching Pressure(KN):
-
90
-
Cutting thickness:
-
6mm
-
Model:
-
QA32-8
Quick Details
-
Nominal Force (kN):
-
90
-
Place of Origin:
-
Henan, China
-
Year:
-
new
-
Voltage:
-
220/380/400/415V, 220V/240V/380V/415V
-
Dimension(L*W*H):
-
1950*900*1950mm
-
Weight (T):
-
2
-
Name:
-
multifunctional punching and shearing machine
-
Cutting Material:
-
Steel, iron, copper, aluminum
-
Weight:
-
2T
-
Punching Pressure(KN):
-
90
-
Cutting thickness:
-
6mm
-
Model:
-
QA32-8
Product overview
|
Industrial grade combined punching and shearing machine
|
|
|
|
|
||||
|
model
|
08 type
|
10 type
|
12 type
|
|
||||
|
Shear strength
|
360kn
|
500kn
|
900kn
|
|
||||
|
maximum cutter travel
|
27mm
|
30mm
|
36mm
|
|
||||
|
Slide Strokes Per Minute
|
30 times/m
|
30 times/m
|
30 times/m
|
|
||||
|
Motor Power(kw)
|
2.2kw-380v
|
3kw-380v
|
4kw-380v
|
|
||||
|
Overall dimensions
|
900*600*1100mm
|
900*600*1250mm
|
900*600*1450mm
|
|
||||
|
Weight(kg)
|
550kg
|
700kg
|
160kg
|
|
||||
|
Tool material
|
9crsi
|
|
|
|
||||
|
Punching shear type
|
QA32-08B
|
QA32-10B
|
QA32-12B
|
|
||||
|
Shear maximum Angle steel
|
75*75*8
|
100*100*10
|
125*125*12
|
|
||||
|
Punch maximum round hole
|
ø22*8
|
ø25*10
|
ø31*12
|
|
||||
|
Maximum long punch
|
17*40*8
|
18*40*8
|
21*40*12
|
|
||||
|
Shear maximum plate
|
110*8
|
200*8
|
330*12
|
|
||||
|
Shear maximum round steel
|
ø30
|
ø38
|
ø40
|
|
||||
|
Square shear Angle of Angle steel
|
50*50
|
50*50
|
50*50
|
|
||||
|
V-shaped shear Angle
|
50*50
|
50*50
|
50*50
|
|
||||
|
Diagonal shear
|
50*50
|
50*50
|
50*50
|
|
||||
|
Shear maximum channel steel
|
GB100 #
|
GB120 #
|
GB160 #
|
|
||||
|
|
|
|
|
|
||||
