Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
IES1000-4P-2F
-
Place of Origin:
-
China
-
Product Name:
-
Industrial POE Switch
-
Interface:
-
4*10/100/1000Mbps RJ45 PoE port
-
Uplink Ports:
-
2*1000Base-X uplink SFP fiber slot port (Data)
-
Warranty:
-
1 Year
-
Management:
-
Unmanaged, managed model is optional
-
PoE Standard:
-
IEEE802.AF/AT
-
Keywords:
-
Industrial Unmanaged PoE Switch
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
IES1000-4P-2F
-
Place of Origin:
-
China
-
Product Name:
-
Industrial POE Switch
-
Interface:
-
4*10/100/1000Mbps RJ45 PoE port
-
Uplink Ports:
-
2*1000Base-X uplink SFP fiber slot port (Data)
-
Warranty:
-
1 Year
-
Management:
-
Unmanaged, managed model is optional
-
PoE Standard:
-
IEEE802.AF/AT
-
Keywords:
-
Industrial Unmanaged PoE Switch

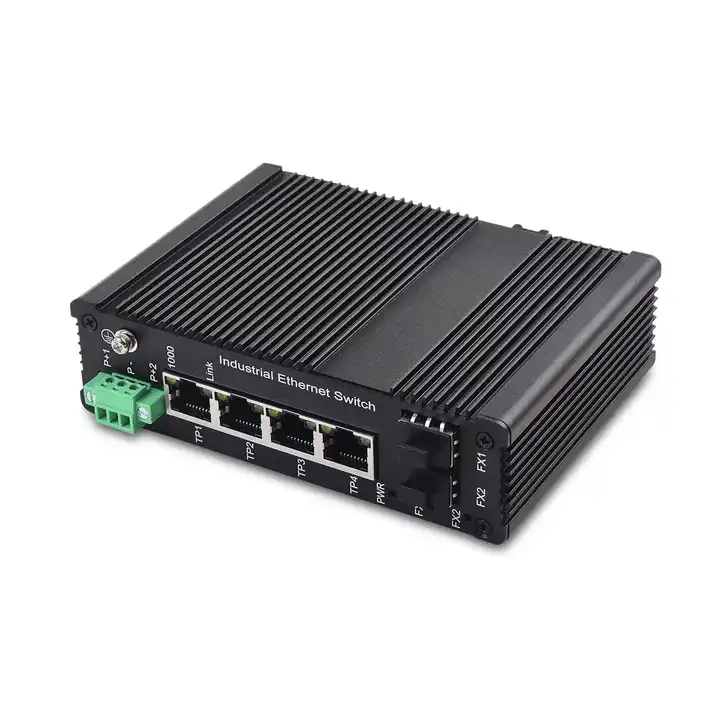

Product Description
I
ndustrial PoE Switch
4 ports 1000M with 2 SFP uplink Din Rail mount
@ 4*10/100/1000M PoE ports ( PoE is optional )
@ 2*1000M SFP port Industrial PoE Switch ( Optional 20KM SC modules)
@ Port 1-4 support IEEE 802.3af/at PoE
@ Standard power is 15.4W/port, Maximum power: 30W/port
@ PoE default: 1, 2(+)/3, 6(-), alternative: 4, 5(+)/7, 8(-)
@ Switching capacity:16Gbps, MAC table:8K
@ Input voltage: DC42-57V, Redundant dual power 5-bit industrial terminals
@ IP protection level: IP40;
@ Din rail installation
@
Working temperature:-40~+80°C for hash environment
@ Plug and play, no requirement for configuration ( Web-Management is optional)
|
Technical items
|
Description
|
|
Model
|
IES1000-4P-2F
|
|
Interface |
4*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP fiber slot port (Data) 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal) |
|
Ethernet Port |
Port 1-4 support 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X
self-adaption |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IIEEE802.3x |
|
PoE Standard
|
IEEE802.3af/at
|
|
SFP Port |
Gigabit SFP optical fiber port, default matching optical modules (optional
order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable |
Multimode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
16Gbps
|
|
Forwarding Rate@64byte
|
8.93Mpps
|
|
MAC
|
8K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frames
|
9.2K
|
|
MTBF
|
539608 hours
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
|
Power Supply Pin
|
Default:1/2 (+), 3/6 (-) optional: 4/5(+),7/8(-)
|
|
Working Voltage
|
48-57VDC; 5P industrial phoenix terminal, anti-reverse protection.
|
|
Max Power Per Port
|
30W; IEEE802.3af/at
|
|
Total PWR / Input Voltage
|
60W/48VDC (IEEE802.3af) 120W/48VDC (IEEE802.3at)
|
|
Power Consumption
|
Standby:<4W; Full load:<60W Standby:<5W; Full load:<120W
|
|
Power Supply
|
No, optional 48V/60W or 48V/120W industrial power supply
|
|
LED Indicator
|
Power: PWR (green), Network: Link, Link/Act (yellow), PoE: PoE (green)
|
|
Operation TEMP / Humidity
|
-40~+80°C;5%~90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40~+85°C;5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
119*100*30mm
|
|
Net /Gross Weight
|
<0.5kg/<0.7kg
|
|
Installation
|
Desktop, 35mm DIN rail
|
|
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32
(free fall) |
|
Certification
|
CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
|
|
Warranty
|
1 year ,2 years maintenance.
|
Welcome to contact for more details or customized model
More Hot-Selling Products
Packing & Delivery
Package Type:
1.ESD bag+ Kraft Paper Box+ Carton Box
2.One standard set including 1 device, 1 manual instruction, 1 warranty card.
3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country.
4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time
