Quick Details
-
Size:
-
880*830*1190mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HuaYi or OEM, HuaYi
-
Power:
-
1.5, 5-8Kw
-
Material:
-
SUS 304 stainless
-
Control:
-
Computer
-
Cleaning Process:
-
Cold Water Cleaning
-
Fuel:
-
Electric heating
-
function:
-
washing,dewatering,drying
-
energy saving:
-
>20%
-
Dimension(L*W*H):
-
880*800*1975
-
product name:
-
Commercial double stack washer and dryer
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
280KG
-
Size:
-
880*830*1190mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HuaYi or OEM, HuaYi
-
Power:
-
1.5, 5-8Kw
-
Material:
-
SUS 304 stainless
-
Control:
-
Computer
-
Cleaning Process:
-
Cold Water Cleaning
-
Fuel:
-
Electric heating
-
function:
-
washing,dewatering,drying
-
energy saving:
-
>20%
-
Dimension(L*W*H):
-
880*800*1975
-
product name:
-
Commercial double stack washer and dryer

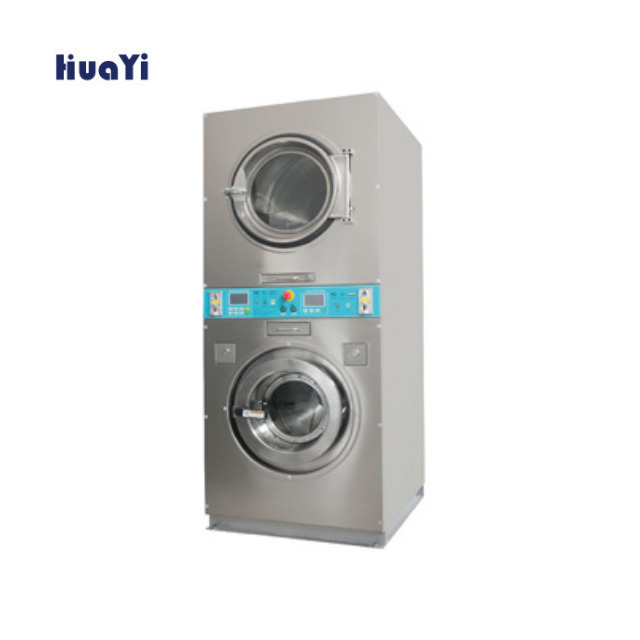

Commercial vended stack washer dryer is based on the organic integration of the washing machine,dehydration machine and dryer. It has three functions washing,dehydration and drying. Fully automatic Stack-able washer and dryer machine is composed of the upper and lower parts.It is the first domestic double vertical structure model which can be divided into two parts,the upper part is dryer,the lower part is washing and dehydration machine.
Washing,dehydration and drying conduct centralized control all by computer board.A machine completely replace the traditional washer extractor and dryer two machines.The whole machine structure is reasonable and compact,the occupied space can save 100%.
Can Set up the coin operation function.
| Stack Washer dryer | ||
| Model | SXTH-12 | SXTH-15 |
| Capacity(kg) | 12 | 15 |
| Rated Voltage(V) | 220/240/380/415 | 220/240/380/415 |
| Washing Capacity(kg) | 12kg | 15kg |
| Washer Drum Dimesion(mm) | Φ630×380 | Φ630×480 |
| Motor Power(kw) | 1.5 | 1.5 |
| Heating Power(kw) | 5.25 | 5.25 |
| Water inlet(inch) | 1/2" | 1/2" |
| Drainage(inch) | 2" | 2" |
| Drum of Solute (L) | 120 | 150 |
| The washing speed(r.p.m.) | 46 | 46 |
| Drying Capacity(kg) | 12kg | 15kg |
| Dryer Drum Dimension(mm) | Φ750x500 | Φ750x650 |
| Fan Power(kw) | 0.33 | 0.33 |
| Dryer Motor(kw) | 0.12 | 0.12 |
| Heating Power(kw) | 7.5 | 9 |
| Air-out diameter(mm) | 110 | 110 |
| Dimension(L.W.H) (mm) | 880*830*2040 | 880*1130*2140 |
| Weight(kg) | 500 | 620 |
| Coin operated washing machine | |||
| Model | XGQ-12F | XGQ-15F | XGQ-20F |
| Washing Capacity(kg) | 12 | 15 | 20 |
| Rolling Container Dimension(mm) | Φ630X380 | Φ630X480 | Φ750X480 |
| Rolling Container Speed(wash/middle extract/high extract)(r/min) | 50/800 | 50/800 | 50/800 |
| Rated Voltage(V) | 220/240/380/415 | 220/240/380/415 | 220/240/380/415 |
| Motor Power(kw) | 1.3 | 1.5 | 2.2 |
| Frequency Converter Power(kw) | 1.5 | 1.5 | 2.2 |
| Diameter of Hot Water Pipe(lnch) | 1 | 1 | 1 |
| Diameter of Cold Water Pipe(lnch) | 1 | 1 | 1 |
| Heating Power(kw) | 6 | 6.0 | 12 |
| Dimension(L.W.H) (mm) | 880*830*1190 | 880*1080*1190 | 1000*1010*1380 |
| Weight(kg) | 280 | 300 | 450 |
