- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET AGWP 100 020 1200
-
Density:
-
100kg/m3
-
Thickness:
-
20mm
-
Width:
-
600
-
Length:
-
1200
-
Average NRC:
-
1.05
-
Thermal conductivity:
-
0.033 W/mK
-
Water Vapor Sorption (% by volume):
-
≤1%
-
Water Vapor Sorption (% by weight):
-
≤1%
-
Fire Performance:
-
A1
-
Certificate:
-
FM, ISO 9001:2008, ISO 14001:2004
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNITED INSULATION
-
Model Number:
-
UET AGWP 100 020 1200
-
Density:
-
100kg/m3
-
Thickness:
-
20mm
-
Width:
-
600
-
Length:
-
1200
-
Average NRC:
-
1.05
-
Thermal conductivity:
-
0.033 W/mK
-
Water Vapor Sorption (% by volume):
-
≤1%
-
Water Vapor Sorption (% by weight):
-
≤1%
-
Fire Performance:
-
A1
-
Certificate:
-
FM, ISO 9001:2008, ISO 14001:2004
PRODUCT INFORMATION

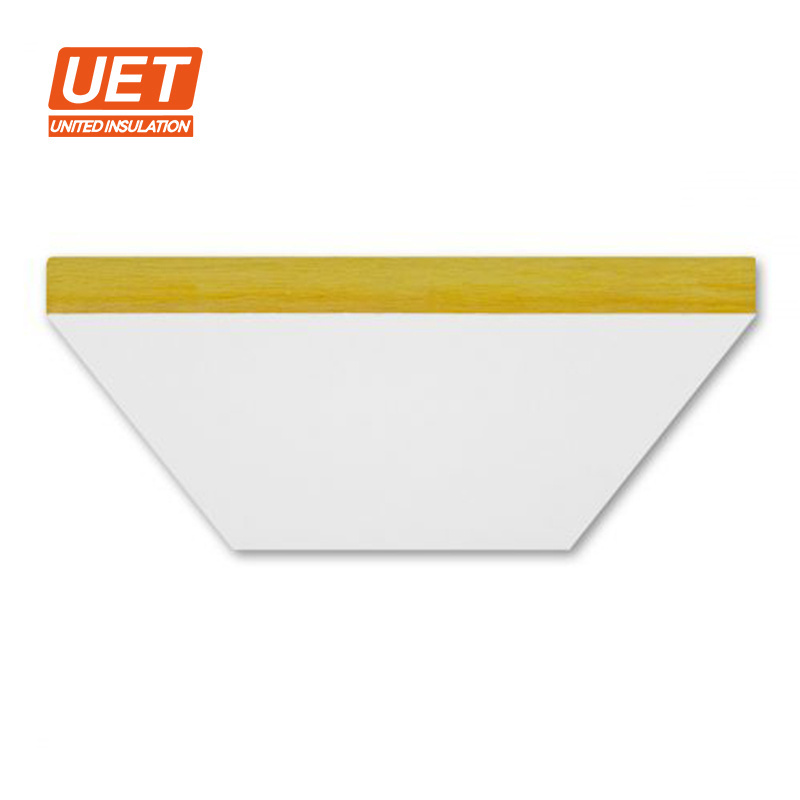

UET acoustic glass wool ceiling baffles and clouds are manufactured from high density resin bonded fiberglass wool with fine texture painted fiberglass tissue facer, plain tissue backer and sealed and painted edge. Panels are in a range of indefinite and customizable shapes. Different sizes make it possible to allow you to create "your own sky". Main advantage of these ceiling tiles are excellent sound absorption, dimensionally stable under high temperature and humidity, remarkable thermal insulation property and energy saving material.
AVAILABLE FORMS
Rectangle, Circle, Pentagon, Hexagon, Diamond, Cloud, or Star shapes Rigid Panel
DEGE FORMS
Square or Radius Edges
MATERIALS
Glass Wool (Fiberglass Wool)
AVAILABLE FACINGS
Colors painted texture facing
PACKAGING
All glass wool ceiling tiles, wall panels, bafflies and clouds, ares packed by carton boxes.
STORAGE AND TRANSPORT
Store indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
FIRE PERFORMANCE
Class A, STN EN 13501-1: 2007
Flame Spread <25, Smoke Developed <50, According to UL 723, ASTM E84
Flame Spread <25, Smoke Developed <50, According to UL 723, ASTM E84
WARRANTY YEARS
32 years
FEATURES AND BENEFITS
• Provide the best sound absorption (NRC) available to optimize acoustics on your project
• Fiberglass Ceilings are Class A fire-rated
• Inherently resist the growth of mould and mildew
• In unique visuals like shapes and available in a broad range of textures, sizes and colours
• The tiles are manufactured from high density glass wool
• The visible surface is a high-quality batch of painted fiberglass tissue in white color and black color
• The edges are facing color painted
• Fiberglass Ceilings are Class A fire-rated
• Inherently resist the growth of mould and mildew
• In unique visuals like shapes and available in a broad range of textures, sizes and colours
• The tiles are manufactured from high density glass wool
• The visible surface is a high-quality batch of painted fiberglass tissue in white color and black color
• The edges are facing color painted
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Glass wool ceiling baffles and clouds are the most effective solutions for a soundproof working environment. Perfect for offices, auditoriums, classrooms, restaurants and more commercial environments.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
