Quick Details
-
Product name:
-

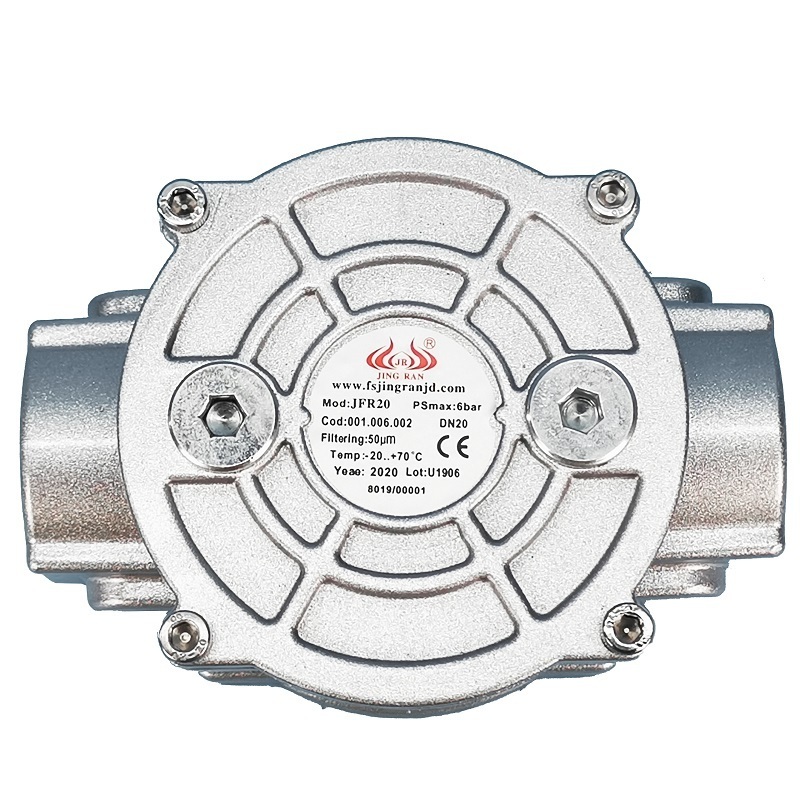

JFR Gas Filter
-
Model:
-
JFR20
-
Screw Head Type:
-
Hexagon Head
-
Material:
-
Aluminum Alloy
-
Color:
-
Silver Gray
-
Shape:
-
Circular
-
Import pressure:
-
6bar
-
Connection mode:
-
Threaded DN20 Rp3/4''
-
After Warranty Service:
-
Online support
Quick Details
-
Weight (KG):
-
30
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JR
-
Product name:
-
JFR Gas Filter
-
Model:
-
JFR20
-
Screw Head Type:
-
Hexagon Head
-
Material:
-
Aluminum Alloy
-
Color:
-
Silver Gray
-
Shape:
-
Circular
-
Import pressure:
-
6bar
-
Connection mode:
-
Threaded DN20 Rp3/4''
-
After Warranty Service:
-
Online support
| 1 | Max. inlet pressure | 6bar |
| 2 | Sealing Type | 3 layers sealing crafts |
| 3 | Applicable temperature | -20℃~70℃ |
| 4 | Filtering accuracy | ≤ 50 μ m |
| 5 | Connection mode | threaded/Flange connection |
| 6 | Material | cast aluminum alloy valve body, galvanized steel accessories, nitrile rubber ring |
| 7 | Applicable medium | non-corrosive gases such as city gas, natural gas and LPG |
| 8 | capability | High efficiency filtration |
| Model | Size | Connection | Filtering accuracy | Filter mesh area(mm2) | Maximum working pressure |
| JFR15 | DN15 | Thread | ≤50 μm | 8000 | 6bar |
| JFR20 | DN20 | Thread | ≤50 μm | 8000 | 6bar |
| JFR25 | DN25 | Thread | ≤50 μm | 8000 | 6bar |
| JFR40 | DN40 | Thread | ≤50 μm | 14700 | 6bar |
| JFR50 | DN50 | Thread | ≤50 μm | 23000 | 6bar |
| JFR80 | DN80 | Flanged | ≤50 μm | 45000 | 6bar |
| JFR100 | DN100 | Flanged | ≤50 μm | 66500 | 6bar |
| JFR125 | DN125 | Flanged | ≤50 μm | 15660 | 6bar |
| JFR150 | DN150 | Flanged | ≤50 μm | 15660 | 6bar |
