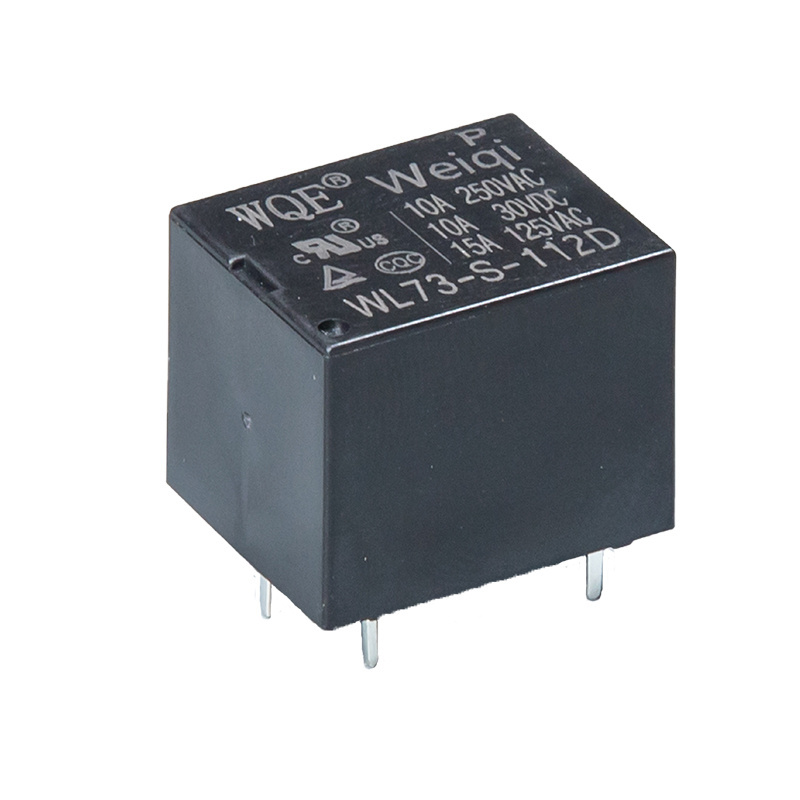

5V / 6V / 9V / 12V / 18V / 24V 10A Miniature Electromagnetic T73 PCB Relay 5 Pin WL73

WL73-S-112D

1. Up to 20A contact switching capability

2. 1 Form A and 1 Form C configurations

3. Sockets avaliable

4. Overall dimensions （19.0×15.4×15.5）mm

Contact load
Model	WL73
Contact Arrangement	1C(SPDT(B-M)	1A(SPSTNO)	1B(SPSTNC)
Maximum switching current	10A	16A	7A
Maximum switching voltage	277VAC/30VDC	277VAC/30VDC	277VAC/30VDC
Maximum switching power	2770VA/300W	4432VA/480W	1250VA/210W
Rated load (resistive)	10A 277VAC 10A 30VDC	16A 277VAC 16A 30VDC	7A 277VAC 7A 30VDC
Performance parameter
Contact material			Ag alloy
Contact resistance			Max 100MΩ
Action time			≤10ms
Release time			≤10ms
Insulation resistance			Min 100MΩ （500VDC)
Dielectric Strength	Between contacts	AC 750VAC 50/60Hz 1min

		Between contact coils	AC 1500VAC 50/60Hz 1min

To attack	Stability	98m/S ²
		Strength	980m/S ²
Vibration			10~55Hz 1.5mm Double Amplitude
Mechanical endurance min			1×10 ⁷
Electrial eddurance min			1×10 ⁵
Humidity			5%~85%RH
Ambient temperature			-40℃~105℃
Weight			Approx.10g

Coil parameters （at 20°C）
Coil Voltage			Coil Resistance	Pick-up Voltage 70% of rated voltage	Drop-out Voltage 10% of rated voltage	Coil Power
Rated	Max		Coil Resistance	Pick-up Voltage 70% of rated voltage	Drop-out Voltage 10% of rated voltage	Coil Power
VDC		VDC	Ω±10%	VDC	VDC	W
3	3.9	25	2.25	0.3	0.36
5	6.5	69	3.75	0.5
6	7.8	100	4.5	0.6
9	11.7	225	6.75	0.9
12	15.6	400	9	1.2
24	31.2	1600	18	2.4
48	62.4	6400	36	4.8
5	6.5	56	3.75	0.5	0.45
9	11.7	180	6.75	0.9
12	15.6	320	9	1.2
24	31.2	1280	18	2.4
12	15.6	180	8	1.2	0.8
24	31.2	720	16	2.4	0.8
Safetu standard
Certification category			CQC	TUV	UL
Certified load			16A/12A,277VAC/250VAC 16A/12A,30VDC 20A/15A,125VAC 10A/7A, 277VAC/250VAC 10A/7A,30VDC	16A/12A,277VAC/250VAC16A/12A,30VDC 20A/15A,125VAC 10A/7A, 277VAC/250VAC 10A/7A,30VDC	16/12A/10A, 277/250/125 VAC 16A/12A/10A 30VDC 20A, 125 VAC TV-8, 125/250VAC 5A, 120VAC 1000W, 120VAC 5A, 277VAC 1/2hp, 125VAC 1/4hp, 250VAC 10A/5A 277/250AC/30VDC
