Quick Details
-
Design Style:
-
Modern
-
Feature:
-
Thermostatic Faucets
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BSD
-
Model Number:
-
TSV-8003
-
Product description:
-
Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve
-
Function:
-
4 ways diverter outlet
-
Cartridge:
-
Brass
-
Usage:
-
shower&bathroom
-
Color:
-
Chrome Polished Plating / other plating available
-
Water flow:
-
6L/min @ 0.1bar
-
Finish:
-
Chrome plated
-
installation:
-
in-wall
-
Work Temperature:
-
0-100degree
Quick Details
-
Material:
-
Brass, Solid Brass
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Feature:
-
Thermostatic Faucets
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BSD
-
Model Number:
-
TSV-8003
-
Product description:
-
Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve
-
Function:
-
4 ways diverter outlet
-
Cartridge:
-
Brass
-
Usage:
-
shower&bathroom
-
Color:
-
Chrome Polished Plating / other plating available
-
Water flow:
-
6L/min @ 0.1bar
-
Finish:
-
Chrome plated
-
installation:
-
in-wall
-
Work Temperature:
-
0-100degree

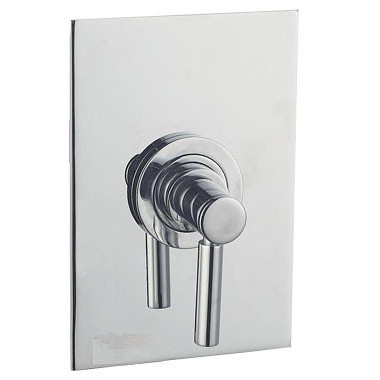

Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve
Baisida is a manufactory for faucet/brass fittings with over 20 years experiences in China. Details of us, please check below website. Catalogues are available to download there directly.
website www.bsdfaucets.com www.baisida.net
Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve
|
Item number |
TSV-8003 |
|
Production description |
Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve |
| Body | Solid Brass natural color |
| Handle | Brass with chrome plated |
| Cover plate |
Brass with chrome plated, thickness 3mm
|
| Cartridge | Brass, local brand, > 500,000 Times Open & Close |
| Outlets | 4 ways diverter |
| Surface | Chrome, bronze, gold, antique brass, red antique. brushed nickel, paint different color for choice |
| Chrome Layer Thickness | Ni:2-3um, Cr 0.1-0.2um or Ni 8um , Cr 0.25um |
| Fixed way | Built in wall, Can be fittedd vertically or horizontally |
| Departure Port | Ningbo/Shanghai |
| MOQ | 100pcs |
| Delivery Time | 50days |
| Payment Term | T/T and L/C are appreciated |
| Main Markets | UK, Russia, Italy, Germany. Australia, New zealand. Hungary, etc |
| Certificate | ISO9001, ISO14001 |
| Net weight | 1510g without package |
Product Feature:
By installing one of our shower valves, you can enjoy the following benefits:
-
Accurate flow control
-
Thermostatic control to +/-1 degree--even if the water pressure fluctuates
-
Full thermal protection to prevent scalding in the event of hot or cold water shut off
-
The cartridge imported from UK
-
Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers
-
The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing,. Simply remove the cartridge, turn 180 degree and replace.
Providing full thermal protection against scalding amd ensuring a constant temperature in your shower---Even when the water pressure fluctuates due to ither household appliances being used.
Allow hot water to be blended to a safe temperature and will shut down in 1.5 seconds if the cold wate supply fails.
Chrome Concealed One Lever Handle 4-Port Shower Diverter Valve
Transportation
- Express( TNT., DHL. UPS, Fedex, EMS, etc) is available
- Sea and Air delivery is available
Delivery Time
- General sample order : 3-20 days
- OEM is allowable for 35-45 days
Quality Control:
1. Inspection of the casting
2. Leakage test after machining
3. Surface inspection after polishing
4. Surface inspection after plating
5. Leakage test in assembly
6. Measuring for the finished products
