Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
HIGON
-
Model Number:
-

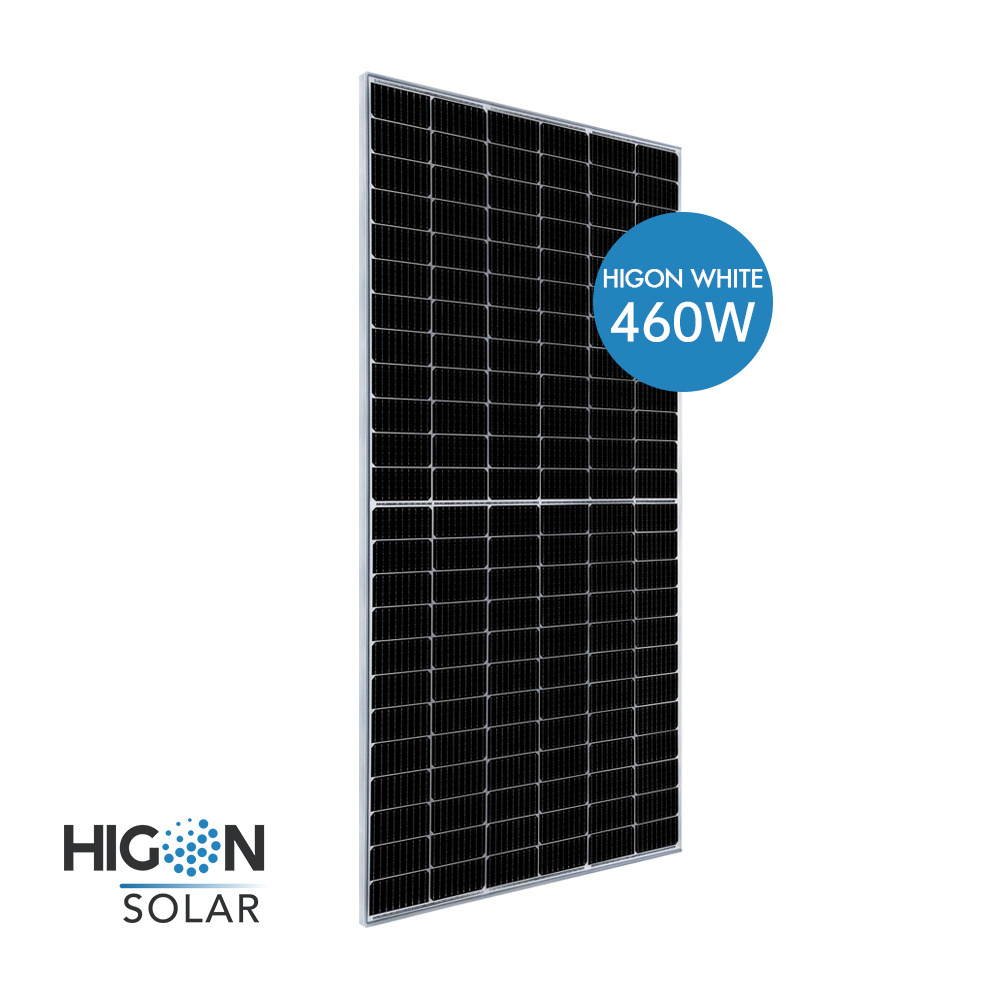

HG460-72HC8
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2094*1038*35mm
-
Application:
-
Residentail/Commercial
-
Max. Power:
-
460Wp
-
Power Tolerance:
-
-0 /+5 W
-
No.of cells:
-
144(6X24)
-
Max. Surface Load:
-
3600Pa
-
Color:
-
White
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
Weight:
-
23.3kg
-
Connector:
-
PV Connector
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.6%
-
Warranty:
-
30 Years
-
Brand Name:
-
HIGON
-
Model Number:
-
HG460-72HC8
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2094*1038*35mm
-
Application:
-
Residentail/Commercial
-
Max. Power:
-
460Wp
-
Power Tolerance:
-
-0 /+5 W
-
No.of cells:
-
144(6X24)
-
Max. Surface Load:
-
3600Pa
-
Color:
-
White
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
Weight:
-
23.3kg
-
Connector:
-
PV Connector
Product Description
Specification
|
Module Type
|
HG450-HC8
|
|
HG455-72HC8
|
HG555-72HC10
|
HG460-72HC8
|
HG560-72HC10
|
||||||
|
Testing Condition
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
||||||
|
Maximum Power(Pmax/W)
|
450
|
328.6
|
455
|
332.4
|
460
|
336.2
|
||||||
|
Operating Voltage(Vmp/V)
|
42.10
|
38.42
|
42.41
|
38.71
|
42.76
|
39.00
|
||||||
|
Operating Current(Imp/A)
|
10.69
|
8.55
|
10.73
|
8.59
|
10.76
|
8.62
|
||||||
|
Open-Circuit Voltage(Voc/V)
|
49.84
|
46.08
|
50.10
|
46.34
|
50.39
|
46.60
|
||||||
|
Short-Circuit Current(Isc/A)
|
11.34
|
9.17
|
11.37
|
9.19
|
11.40
|
9.22
|
||||||
|
Module Efficiency
|
20.7
|
|
20.9
|
|
21.2
|
|
||||||
|
Nominal Module Operating Temperature(NMOT)
|
43 ± 2 °C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
|
-0.36%/°C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
|
-0.28%/°C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc
|
+0.05%/°C
|
|
|
|
|
|
||||||
|
Contact your sales rep. for detailed technical datasheet!
|
|
|
|
|
|
|
||||||
Packing & Delivery
Rethinking Package
As a company that pursues the ultimate, HIGON has always pursued to make things perfect. We treat each customer's goods, whatever how big they are, we do with 100% care to package each product, aiming to provide the best packaging service for each customer. We trade the goods as our children, and make sure every goods is perfect when they arrive to their owner.
Why Choose Us
Higon Quality Control
Quality Comes First
Supplying customers with the very best products is key to everything we do at HIGON. For us, this means high levels of quality at every stage of production, shipping and sales, right through to the fifinal installation.
Stable supply chains:
We only source components from top suppliers, like TW Solar, Longi Solar which makes us particularly well protected from interruptions in the global supply chain.
Extreme qualifification to 3 x IEC:
Before even hitting the production lines, HIGON products are tested to at least 3 times the international quality standards for solar panels. This is central to our development program and ensures that all HIGON modules are robust enough for any climate.
Lower product claims rate:
HIGON modules consistently demonstrate a low number of product defects according to published statistics. Calculated as parts per million panels produced, HIGON's claims rate is one of the lowest in solar.
Global HIGON
Global HIGON Solar
Choose Globla Higon Solar, get more international team serivce.
Higon footprite has been covered more than 110 countries, and across five continents.
Contact us and get more localized service.
HIGON Project Show
Your Sales Rep.
CV of Alice Xu
Alice Xu - Sales Manager of Higon Solar,
expertise in European market more than 8 years.. She have a lot of experience of overseas project, and has been served more than 100 customers in past 8 years.
