Quick Details
-
Display:
-
LCD
-
Weight:
-
7.5Kg
-
Max. Consumption:
-
48W
-
Power Source:
-
DC 16.8V (Lithium Ion Battery)
-
Sample Time:
-
1---10min (Selectable)
-
Maximum Rated Particle Concentration:
-
35000 particles/L (≤0.5μm)
-
Operating Time:
-
8 hours
-
Atmosphere Pressure:
-
86Kpa-106Kpa
-
Size Channels:
-
0.3, 0.5, 1, 3, 5, 10 μm
Quick Details
-
Brand Name:
-
SUGOLD
-
Place of Origin:
-
Zhejiang, China
-
Model:
-
Y09-310ACDC
-
Display:
-
LCD
-
Weight:
-
7.5Kg
-
Max. Consumption:
-
48W
-
Power Source:
-
DC 16.8V (Lithium Ion Battery)
-
Sample Time:
-
1---10min (Selectable)
-
Maximum Rated Particle Concentration:
-
35000 particles/L (≤0.5μm)
-
Operating Time:
-
8 hours
-
Atmosphere Pressure:
-
86Kpa-106Kpa
-
Size Channels:
-
0.3, 0.5, 1, 3, 5, 10 μm
Product Application

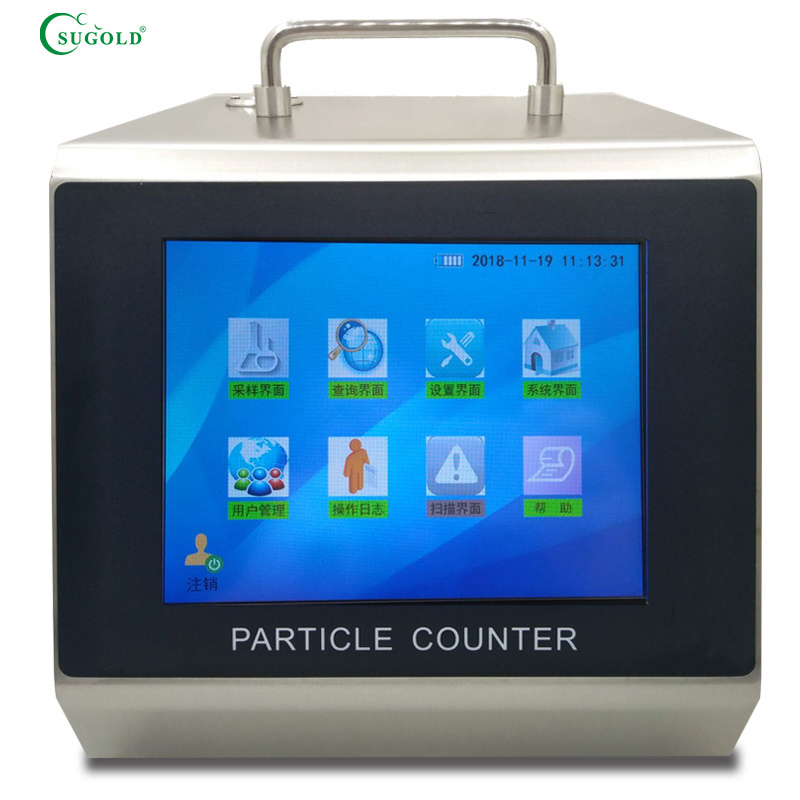

The Model Y09-310 LCD is used to detect the particles in the cleanroom. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simul taneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
|
SPECIFICATIONS
|
|
|
|
|||
|
Model
|
|
Y09-310ACDC
|
|
|||
|
Display
|
|
LCD
|
|
|||
|
Weight
|
|
7.5Kg
|
|
|||
|
Max.Consumption
|
|
48W
|
|
|||
|
Power Source
|
|
DC 16.8V (Lithium Ion Battery)
|
|
|||
|
Size Channels
|
|
0.3, 0.5, 1, 3, 5, 10 μm
|
|
|||
|
Flow Rate
|
|
28.3L/min (Imported Pump)
|
|
|||
|
Sample Time
|
|
1---10min (Selectable)
|
|
|||
|
Zero Count
|
|
10min
|
|
|||
|
Printer
|
|
Built-in Thermal Printer
|
|
|||
|
Alarm
|
|
10,100, 1000, 10000 ,100000,300000Class /ISO
|
|
|||
|
Data Storage
|
|
1000 Samples (With PC Software)
|
|
|||
|
Light Source
|
|
Laser Diode (30, 000 hours Mean Time Between Failures)
|
|
|||
|
Maximum Rated Particle Concentration
|
|
35000 particles/L (≤0.5µm)
|
|
|||
|
Operating Time
|
|
3 hours
|
|
|||
|
Environmental
|
|
Temperature:10℃-35℃
Humidity:20%-75%RH Atmosphere Pressure:86Kpa-106Kpa |
|
|||
|
Optional Equipment
|
|
PC Special Software
|
|
|||
|
Location Labels
|
|
0-999
|
|
|||
