Automatic Wine Juice 3 In 1 Bottling Liquid Filling capping Machine And Sealing And Capping And Labeling Machine

Automatic Wine Juice 3 In 1 Bottling Liquid Filling capping Machine And Sealing And Capping And Labeling Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $18000

≥10 Pieces

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±5ML

Voltage:: 380V / 415V / 220V / 110V

Place of Origin:: Shandong, China

Brand Name:: GOFAR MACHINERY

Dimension(L*W*H):: 3200*1200*2200

Weight:: 2200() ()KG

Bottle type:: Wine bottle

Usage:: Liquid Packaging

Capacity:: 2000BPH

Filling head:: 12 Heads

Model:: GFGDP-18-12-1

Gross weight:: 2200kg

Bottle height:: 150-320(mm)

Keywords:: rinser filler capper

Product name:: 3 In 1 Wine filling machine

Quick Details

Machinery Capacity:: 400BPH, 500BPH, 1000BPH

Packaging Material:: Plastic, Wood

Filling Material:: Water, Juice

Filling Accuracy:: ±5ML

Voltage:: 380V / 415V / 220V / 110V

Place of Origin:: Shandong, China

Brand Name:: GOFAR MACHINERY

Dimension(L*W*H):: 3200*1200*2200

Weight:: 2200() ()KG

Bottle type:: Wine bottle

Usage:: Liquid Packaging

Capacity:: 2000BPH

Filling head:: 12 Heads

Model:: GFGDP-18-12-1

Gross weight:: 2200kg

Bottle height:: 150-320(mm)

Keywords:: rinser filler capper

Product name:: 3 In 1 Wine filling machine

Automatic Wine Juice 3 In 1 Bottling Liquid Filling capping Machine And Sealing And Capping And Labeling Machine

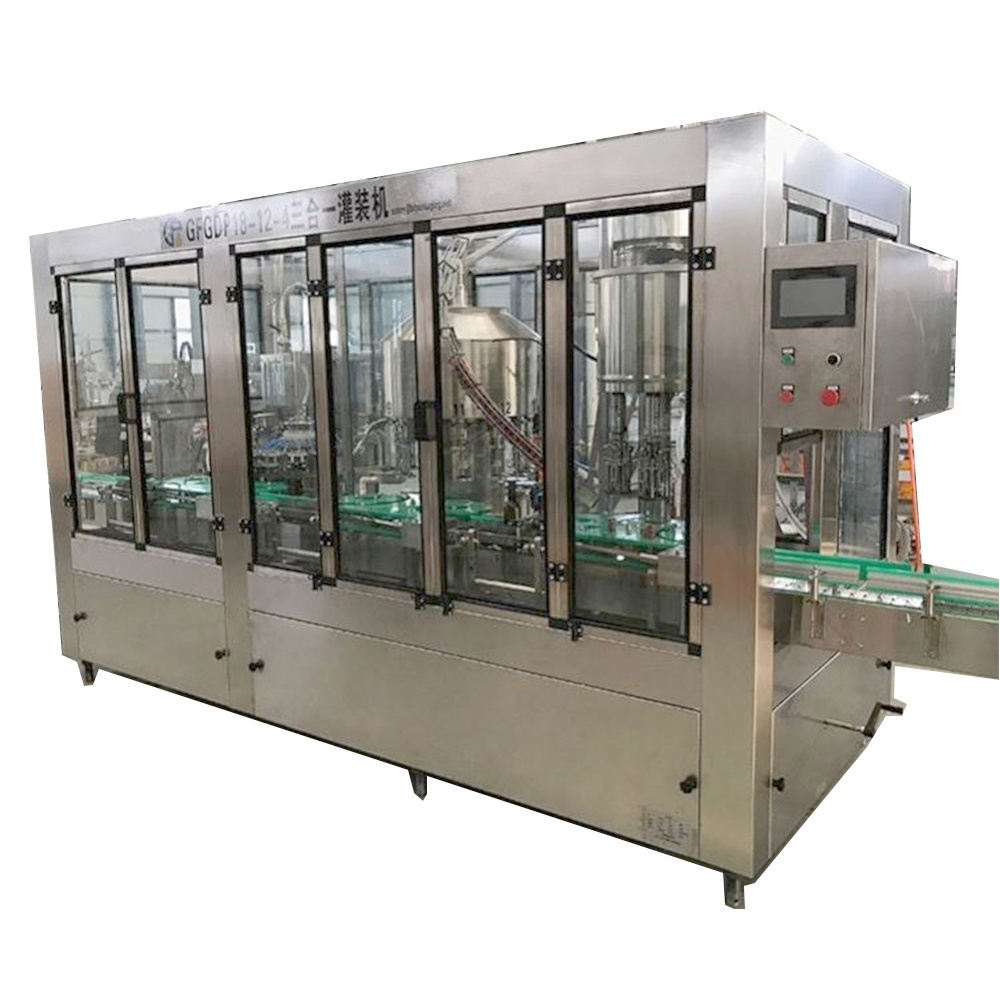

This is a wine filling production line. It consists of bottle washing machine, filling machine, sealing machine, labeling machine, carton sealing machine and conveyor line . The production line has a high degree of automation, which can greatly save labor and improve production efficiency. We can provide customized services according to the different needs of customers.

● The mono block machine including rinser filler capper function together,will save more space and improve working efficiency ● The monoblock machine with food grade SUS304 material,more hygiene. ● The filling volume could be adjusted and could suitable for various size bottles via slight adjustment and changing related parts. ● The machine with overload protection device in the bottle star wheel. It is automatically shut down when bottles jam. At the same time, the buzzer emits a "beep-beep”safe alarm. ● If you just need filling capping function together, or washing filling function togther,we can customized as your requirement.

Model	XGF14-12-5	XGF16-16-5	XGF24-24-8	XGF32-32-8
Capacity	5000ВРН	8000BPH	12000ΒРΗ	15000ВРН
Bottle Volume	200ml-2500ml	200ml-2500ml	200ml-2500ml	200ml-2500ml
Bottle diameater	50-110mm	50-110mm	50-110mm	50-110mm
Bottle high	150-320mm	150-320mm	150-320mm	150-320mm
Machine power	1.5KW	2.2KW 3.7KW 5.5KW	3.7KW	5.5KW
Machine size	235×177×225CM	270×200×225CM	280×210×225CM	355×265×225CM

Product details

Automatic Washing Part 1. The washing part will wash the bottles inside and outside automatically. 2. The washing nozzles with big flushing force to make sure more cleaning. 3. The clamping hands with accurate positioning and easy turnover of the bottle. 4. Each clamping hand part is equipped with a control sprinkler device, no bottle no flush, saving water.

Automatic Filling Part 1. The filling nozzles with bottles mouth will forming an low-vacuum in filling process,the liquid will flow into the bottle inside. 2.No bottles no filling,saving liquid. 3.The filled liquid in the bottles are at the same level and filling volume could be adjusted. 4.The filling nozzles adopt quick connection device,easy to clean and maintenance

Capping/ Corking Part As the capping part,we want to do an special introduction for you. The monoblock machine could with two function capping and corking together. 1. No bottles no capping/corking,save caps/ corks. 2. Placed corks/caps on bottle mouth automatically,save labors. 3.With perfect sealing effect and pretty outside 4. The capping part could equiped with caps/ corks elevator to achieved automatically conveying caps/corks into vibration bowl or corks hopper.

The machine parts we use famous brand,PLC,frequency converter & touch screen could use Siemens, Contactor,Breaker could used Schneider brand etc.If you have special requirements,we also could customized.We do our best to serve you.

Qingzhou Gofar Packaging Machinery Co.,Ltd is a professional manufacturer engaged in the research, development, production, sale and service of Bottle washing machine;Filling machine;Sealing machine;Labeling machine; Water treatment machine. The company was established in 20 12 years, has many famous enterprises at home and abroad to establish a long-term friendly business
relationship. We are located in WEIFANG,SHANDONG PROVINCE,CHINA. with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including laser
cutting machine\ CNC tapping machine \machining center. In addition, we have obtained I S O 9 0 0 1 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as AFRICA ,SOUTH ASIA. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance
for your application, you can talk to our customer service center about your sourcing requirements. Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation. My company will expand the scale of operation and steady development of corporate Packaging Machinery, sincerely seeking partners and common development.

Our Advantages

01 POWERFUL FACTORY

10 Years Manufacturing Experiences & 8 Years Exporting Experiences, not reseller, not tradingcompany.
02 ODM&OEM
Customized solutions are supported.
03 PROFESSIONAL TEAM AND SUPERIOR SERVICEH
Have an professional team and the staff will have be trained regularly.
04 REASONABLE PRICE
Easy operation, positioned accuracy, reasonable price.
05 QUALITY ASSURANCE
Improve your working efficiency and help you resolved the problem of difficult employment and high labor costs.
06 ONLINE INSTRUCTION
Online conferences product explanation, technical guidance, factory inspection etc are supported.
07 AFTER-SALES SERVICE
The job site installation, training, guidance are supported. The staff will have be trained regularly.

We have passed :sealing machine CE certification, filling machine CE certification, ISO9001,SGS and other certification, to ensure the quality of products.

Packing &Shipping

1.Packing: The finished well machines products immediately outside the anti-rust treatment, and the use of plastic packaging for further protection, delivery using thick wood, steel frame protection,and other diversified packaging conditions to ensure that products in the long sea is not affected. 2. Delivery time: Even though our machines are customzied as bottles size and shape, our plant also will reserve some parts on warehouse,such as electronic parts,frame,pump,SUS materials etc to shorten the delivery time. 3. Shipping:

The normally used is by sea. If you are urgent, we can ship by air or express. In short, we will choose an economic shipping way for you. 4. Port:

Qingdao, Shanghai etc,if you have forwarder in China,we can transport the washing machine to him directly.

Service

1. Technical Support:

* Professional engineers are available during the project design. * Detailed equipment drawing design to show you exact required oilfilling production line. * Make the equipment design with Auto cad, Solid work 3D for the equipment details and layout drawing. * Support project expansion design in the future. 2. Professional After-Sales Service Team is Available * The equipments testing and debuggingoperation in Gofar workshop, offer you the video and picture. * Offer all the required spare parts based on the layout drawing. * Mark all the pipelines and valves with numbers, take pictures and videos to make buy side installation easier. * Give installation instruction from video and manual. * After-sales service engineer can also go abroad for the installation, debugging and training. All the travelling cost and local food and hotel shall be afforded by the buyer. 3. Our After-sale Service * Assist purchase facilities including bottling system, steam boiler, water treatment, etc. * Free consultation service before, during, and after sales. * Manage equipments' long distance shipping from seller's factory to buyer’s sea port or location. * Remind of regular maintenance.

FAQ

Q1.How long will take for the delivery of product?

10 days for standard model, if machine in stock, will delivery immediately, customized model depend on customer requirements,usually about 20~30 days.

Q2 . What's the insurance of after-sale service after purchase?

All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable. One year warranty service for all machine, please feel free to contact us if you have any questions.

Q3.When the machine arrives at the work site, is it easy to install? How to solve the problem of quick installation and use?

All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.

Q4:During the use of the machine, how to get after-sale service?

We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.

_{Q5:Will the accessories change frequently with machine?}

The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.
