Quick Details
-
Model Number:
-
WL-5805-S4
-
Name:
-
transformer winding machine
-
Model:
-
WL-5805-S4
-
Wire size:
-
0.05-0.25mm
-
Number of turns:
-
50-3000T
-
Magnetic ring specifications:
-
13*7*4-20*16*7.5mm
-
Storage ring width:
-
2.0-6.0mm
-
Speed:
-
0-2800
-
Number of memory groups:
-
1000
-
Power supply:
-
220V/50Hz
-
Weight:
-
40KG
Quick Details
-
Usage:
-
WINDING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CROWN
-
Model Number:
-
WL-5805-S4
-
Name:
-
transformer winding machine
-
Model:
-
WL-5805-S4
-
Wire size:
-
0.05-0.25mm
-
Number of turns:
-
50-3000T
-
Magnetic ring specifications:
-
13*7*4-20*16*7.5mm
-
Storage ring width:
-
2.0-6.0mm
-
Speed:
-
0-2800
-
Number of memory groups:
-
1000
-
Power supply:
-
220V/50Hz
-
Weight:
-
40KG
Product Description

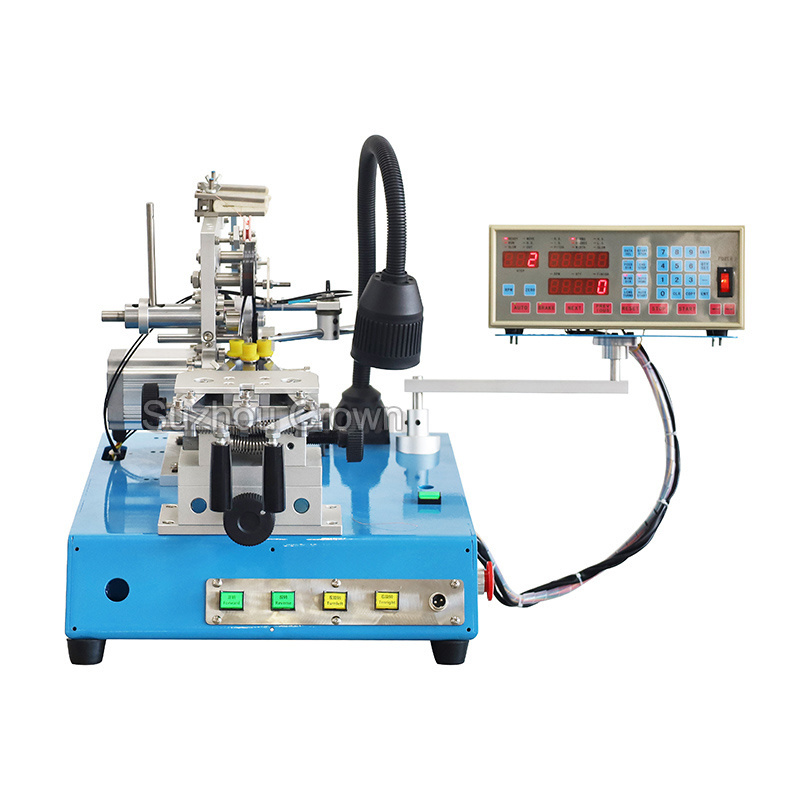

Automatic transformer coiling machine high speed Inductance coil winding machine
We bring forth a range of toroidal coil winding machines that are used in the winding applications of various types of coils, such as dimmer transformers, CTs, stabilizers, sound amplifiers, etc. These machines are manufactured using premium quality components using cutting edge technology. We also stringently test these machines to ensure them meet the international industrial norms.
|
Model
|
WL-5805-S4
|
|
Wire size
|
0.05-0.25mm
|
|
Number of turns
|
50-3000T
|
|
Magnetic ring specifications
|
13*7*4-20*16*7.5mm
|
|
Storage ring width
|
2.0-6.0mm
|
|
Speed
|
0-2800
|
|
Number of memory groups
|
1000
|
|
Power supply
|
220V/50Hz
|
|
Weight
|
40KG
|
|
Dimensions
|
900mm*700mm*600mm
|
Applicable Samples
Related product
|
Model
|
WL-2610
|
WL-2630
|
WL-2631
|
WL-2700
|
WL-2800
|
|
Winding method
|
side slip type
|
side slip type
|
side slip type
|
side slip type
|
side slip type
|
|
Finished outer diameter
|
30/80
|
60/120
|
60/120
|
60/200
|
60/200
|
|
Minimum finished inner diameter
|
18
|
30
|
35
|
35
|
50
|
|
Final completion height
|
40
|
80
|
80
|
100
|
120
|
|
Suitable winding diameter range
|
0.12-0.5
|
0.2-0.7
|
0.2-0.7
|
0.2-0.75
|
0.35-0.9
|
|
Storage ring diameter
|
180
|
195
|
195
|
230
|
260
|
|
Storage ring width
|
3-6
|
3-8
|
9-12
|
9-15
|
12-18
|
|
Maximum speed
|
800 rpm
|
800 rpm
|
800 rpm
|
700 rpm
|
600 rpm
|
|
Working voltage
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
|
Dimensions
|
480×450×600
|
500×600×700
|
500×600×700
|
500×600×750
|
500×600×800
|
|
Weight
|
90 kg
|
90 kg
|
90 kg
|
100 kg
|
110 kg
|
Packing & Delivery
Carton case
