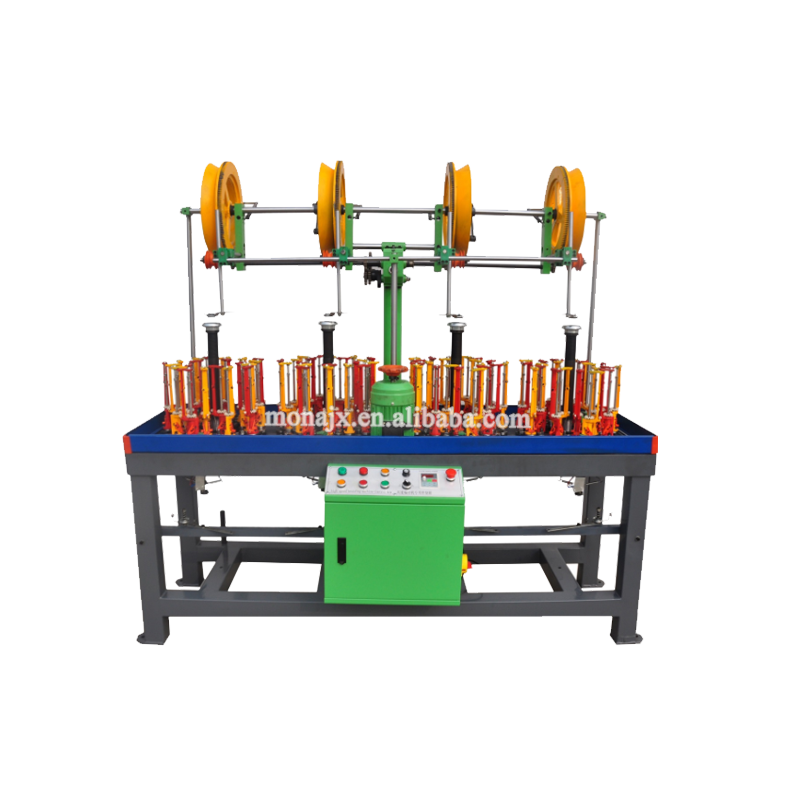

Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price
Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price

Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price

FOB Reference Price: Get Latest Price
≥1 Sets
US $2690
≥5 Sets
US $2390
≥10 Sets
US $2190
≥20 Sets
US $1790
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
900 * 870* 1420mm
Weight (KG):
398 KG
Type:
round rope braiding machines/Flat rope Knitting Machine
Product:
Shoelace
Application:
Flat Belt
Material:
Cotton Nylon
Operation:
Convenient
Bobbin Size:
48X140mm
Machine Series(Model):
90eries
Factory:
Five

Quick Details

Place of Origin:
Henan, China
Brand Name:
MONA
Power:
0.75kw, 0.75KW
Dimension(L*W*H):
900 * 870* 1420mm
Weight (KG):
398 KG
Type:
round rope braiding machines/Flat rope Knitting Machine
Product:
Shoelace
Application:
Flat Belt
Material:
Cotton Nylon
Operation:
Convenient
Bobbin Size:
48X140mm
Machine Series(Model):
90eries
Factory:
Five

Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price

Efficiency High Speed 16 32 Spindles Shoelace Round Rope Cord Braiding Machine price

Product Description

Introduction of round rope braiding machine:

This machine is mainly use for making all kinds of the woven rope.

It’s easy to make different size of products by changing the weft density

gear.

Have different models for customer’s use.

Frequency inverter controlled production speed. - Yarn broken sensor (if a yarn is broken or

a bobbin is empty, the machine stops automatically)

- Speed set - Control cabinet

Applications of round rope braiding machine:

1. Cable rope, fire rope, climbing rope, rope and other series of powerful, marine rope, safety rope, fishing net rope, etc.

2. Clothing accessories rope, sofa side ropes, rope gift bags, bedding with rope, lace rope, etc.

3. Pet rope, flagpole rope, climbing rope, pulling rope, hoisting rope, etc.

4. Dual Core Unit cable, outsourcing duct tape, wax rope belt, asbestos rope, decorative rope,

etc.

5. The flat rope, sling, elastic belt, shoelaces, underwear, belts, and so on.

6. The gift bags, high tensile rope, fishing line, fire rope, marine rope, safety rope, fiberglass

casing, with hollow circular rubber bands, hollow rope, plus core rope, and so on.

Materials of round rope braiding machine :

All flexible fibers, yarns, belts, threads

Technical parameters of round rope braiding machine

MNR90 Series High Speed Round Rope Braiding Machine

Model

Spindle

Head

Measurement

Power

Max Horngear Speed

Spindle Type

Bobbin Size

MNR90-8-4

8pcs

4pcs

900 * 870* 1420mm

0.75kw

320 rpm/min

A

Φ48 X140mm

Φ48 X113mm

MNR90-12-4

12pcs

4pcs

980 * 950 * 1420mm

0.75kw

320 rpm/min

A

Φ48 X140mm

Φ48 X113mm

MNR90-16-4

16pcs

4pcs

1190 * 1100 *1420mm

0.75kw

320 rpm/min

A

Φ48 X140mm

Φ48 X113mm

Range of products:

Gift bag ropes, high tension ropes,fishing lines,safety ropes,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc.
