Quick Details
-
Brand Name:
-
SRD
-
Thread Type:
-
EUE, NUE, STC,BTC, LTC, REG
-
Usage:
-
tubing, casing and drill pipe
-
Function:
-
protect pipe thread
-
Sizes for tubing:
-
2-3/8" to 4-1/2"
-
Sizes for casing:
-
4-1/2" to 20"
Quick Details
-
Applicable Industries:
-
Oil Production
-
Weight (KG):
-
0.25
-
Place of Origin:
-
China
-
Brand Name:
-
SRD
-
Thread Type:
-
EUE, NUE, STC,BTC, LTC, REG
-
Usage:
-
tubing, casing and drill pipe
-
Function:
-
protect pipe thread
-
Sizes for tubing:
-
2-3/8" to 4-1/2"
-
Sizes for casing:
-
4-1/2" to 20"

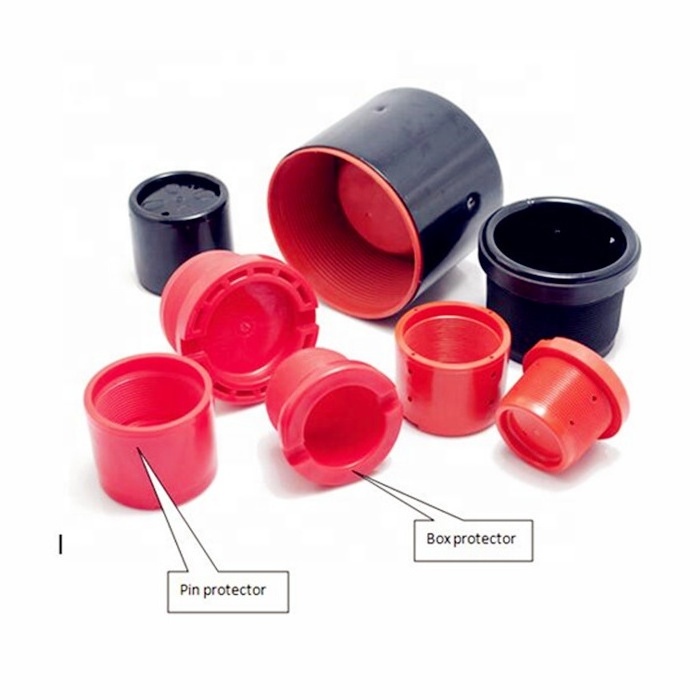

API high-quality tubing and casing thread protector with plastic and steel materials
Description of the API thread protector
|
Product Name |
Thread Protector |
|
Model Number |
2-3/8” to 20” |
|
Certification |
ISO, API |
|
Processing Type |
Injection |
|
Use |
Oil production |
|
Material |
Plastic, Steel |
|
Thread type |
Tubing 2-3/8” to 4-1/2”, EUE NUE |
|
Casing 4-1/2” to 20”, STC LTC BTC |
|
|
Drilling pipe 2-3/8” to 8-5/8” REG |
|
|
Color |
As requested |
The API composite thread protector is made of a threaded low density or high-density polyethylene bumper, which absorbs the impact shocks and a steel shell rolled over the front edge, which insures a superior protection against hazard.
The composite thread protector is available either in the open end or closed end version, liftable or non-liftable. The liftable protectors allow moving of the tubes using hooking devices and in the same time keep the tube thread and coating undamaged. The closed end protectors may have an optional vent hole designed to keep the inner pressure equal to the outer pressure. The vent hole may also have a filter, which prevents the intrusion of the foreign particles.
The composite design of the composite thread protector (steel shell and high density polyethylene bumper) insures the protector integrity within the temperature range given by the API 5CT standard (-46ºC÷66ºC). Their design allows easy setting and removing using a tube wrench.
Specifications for API composite thread protector
|
composite thread protector |
NC26 (2 3/8″IF) |
composite |
|
NC31 (2 7/8″IF) |
composite |
|
|
NC38 (3 1/2″IF) |
composite |
|
|
NC46 (4″IF) |
composite |
|
|
NC50 (4 1/2″IF) |
composite |
|
|
5 1/2″FH |
composite
|
Raw material and manufacturing process
Company Brief Introduction
Tianjin Soright Technology & Development Co.,Ltd (hereafter called Soright Tech) is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.
The company keeps on the Quality is the first. All of products are designed and processed meeting API Specifications. Quality Management System has been set up to ensure the whole process being properly controlled.
Our market distribution
Since 2005 Soright Tech has supplied petroleum machinery products to foreign oilfield market such as Sudan, Algeria, Uzbekistan, Azerbaijan, Oman, Indonesia, Peru and etc.
Hot sale products
Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc.
