The main structures are u
nwinder , coater, drying ovens, cooling roller unit, rewinder, frame, duct, electrical system.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4800*2400*1500MM
-
Weight:
-
40000 KG
-
Product name:
-
Bopp Tape Water base acrylic glueCoating Machine
-
Suitable base material::
-
BOPP film OPP film
-
Valid width::
-
500~1600mm
-
Mechanical speed::
-
50-300m/min
-
Glue type:
-
Water Based Acrylic Adhesive
-
Coating type::
-
Mayer bar, comma roll coating
-
Heating type::
-
Electric, steam, heat transfer oil, hot blast stove
Quick Details
-
Voltage:
-
380 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Cissco
-
Dimension(L*W*H):
-
4800*2400*1500MM
-
Weight:
-
40000 KG
-
Product name:
-
Bopp Tape Water base acrylic glueCoating Machine
-
Suitable base material::
-
BOPP film OPP film
-
Valid width::
-
500~1600mm
-
Mechanical speed::
-
50-300m/min
-
Glue type:
-
Water Based Acrylic Adhesive
-
Coating type::
-
Mayer bar, comma roll coating
-
Heating type::
-
Electric, steam, heat transfer oil, hot blast stove
Products Description

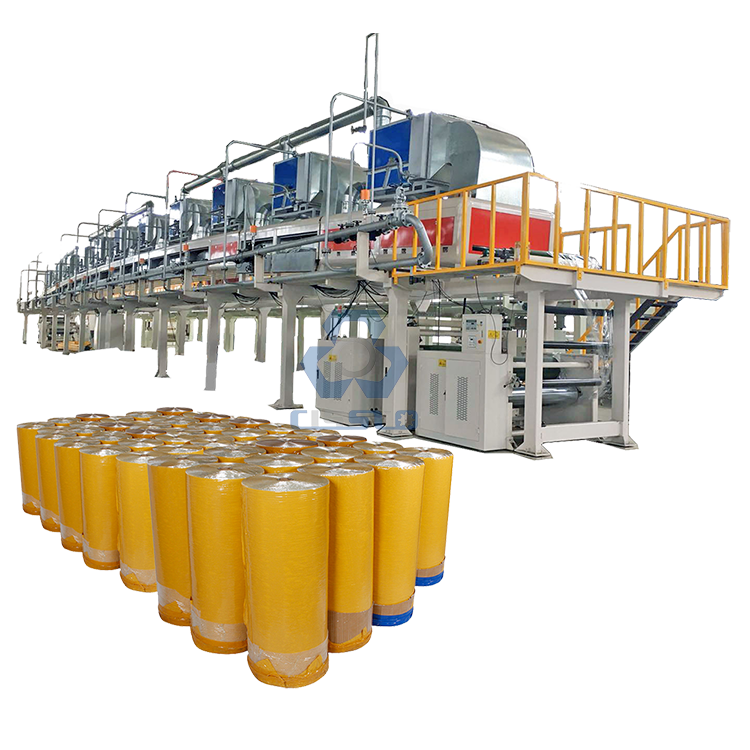

BOPP Adhesive Tape Coating Machine
This Machine used to produce BOPP adhesive tape jumbo rolls.
Function introduction
1. Unwinder: Release the BOPP blank film, automatic pick up new roll of blank film.
2. Coater: coat glue on the blank film, coating method use mayer bar coater or comma roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
2. Coater: coat glue on the blank film, coating method use mayer bar coater or comma roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit:
The raw material after high temperature drying can be cooled rapidly.
5. Rewinder: rewinding the
material into a roll, got the BOPP adhesive tape jumbo roll.
6. Machine Drawing for reference , it can be customized as the requirements.
BOPP Adhesive Tape production process
1.Coating adhesive
2.Slitting
3.Packing
BOPP, OPP film
BOPP Film
Film roll width:500~1600mm
Film thickness:23~37mic
Film Roll diameter: max.700mm
Film Length per roll:4000~6000Meters
Acrylic adhesive
Water base
Solid content:50~55%
Viscosity:100~300cps
Product Specifications
|
|
Model 500
|
Model 1000
|
Model 1300
|
Model 1600
|
|
Working width:
|
Max.500mm
|
Max.1000mm
|
Max.1300mm
|
Max.1600mm
|
|
Production speed: (Customized)
|
40~100M/min
|
60~150M/min
|
100~300M/min
|
100~250M/min
|
|
Production capacity: 8 hours
|
0.5~1ton
|
1ton~3tons
|
2.5tons~6tons
|
3tons~7.5tons
|
|
Heat consumption per hour:
|
Max.300000kcal
|
Max.600000kcal
|
Max.1200000kcal
|
Max.1200000kcal
|
|
Operator for per line:
|
2~3 workers
|
2~3 workers
|
2~3 workers
|
2~3 workers
|
Details Images
Product show
Assembling show
Assembling
Unwider, rewinder
Assembling
Coater, cooling system
Operation interface
Blower and exhaust fan for drying system
Electrical control system
Drying oven
Machining
Frame, sheet metal
Frame
Steel plate processing
Frame, machine
skeleton
Oven skeleton and inner
Packing and delivery
Standard ocean packing
Fumigation pallet, wooden case, film
FAQ
1. What products do you need to produce?
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of
base material roll:
Weight of material:
3.
What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4.
What is the type of adhesive?
Water base , solvent base, or solvent-less
5.
What is parameter of adhesive?
Solid content:
Viscosity:
6.
What is p
roduction capacity for the machine that you want?
Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7.
How long is the delivery time?
90~120days
8
.
Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.
Warranty period and after sales service
Is.
The equipment is guaranteed for one year,
Outside the warranty period, we provide paid maintenance services.
