- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PE1/4
-
Specification:
-
ID 1/4", OD 3/8"
-
Length:
-
25ft, 50ft, 100ft, 100m, 200m.
-
Thickness:
-
1.6mm
-
Standard:
-
SGS-RoHs
-
working pressure:
-
0.8 Mpa
-
bursting pressure:
-
2.4 Mpa
-
colour:
-
Natural, orange, blue black or customized.
-
Outer diameter:
-
3/8"
-
inside diameter:
-
1/4"
-
Certification:
-
ISO9001: 2015
-
MOQ:
-
5000M
-
OEM:
-
Available
-
Purpose:
-
water fluid air transfer
-
Temperature:
-
-40~60℃
Quick Details
-
Processing Service:
-
Cutting, printing, rolling
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZOQN
-
Model Number:
-
PE1/4
-
Specification:
-
ID 1/4", OD 3/8"
-
Length:
-
25ft, 50ft, 100ft, 100m, 200m.
-
Thickness:
-
1.6mm
-
Standard:
-
SGS-RoHs
-
working pressure:
-
0.8 Mpa
-
bursting pressure:
-
2.4 Mpa
-
colour:
-
Natural, orange, blue black or customized.
-
Outer diameter:
-
3/8"
-
inside diameter:
-
1/4"
-
Certification:
-
ISO9001: 2015
-
MOQ:
-
5000M
-
OEM:
-
Available
-
Purpose:
-
water fluid air transfer
-
Temperature:
-
-40~60℃

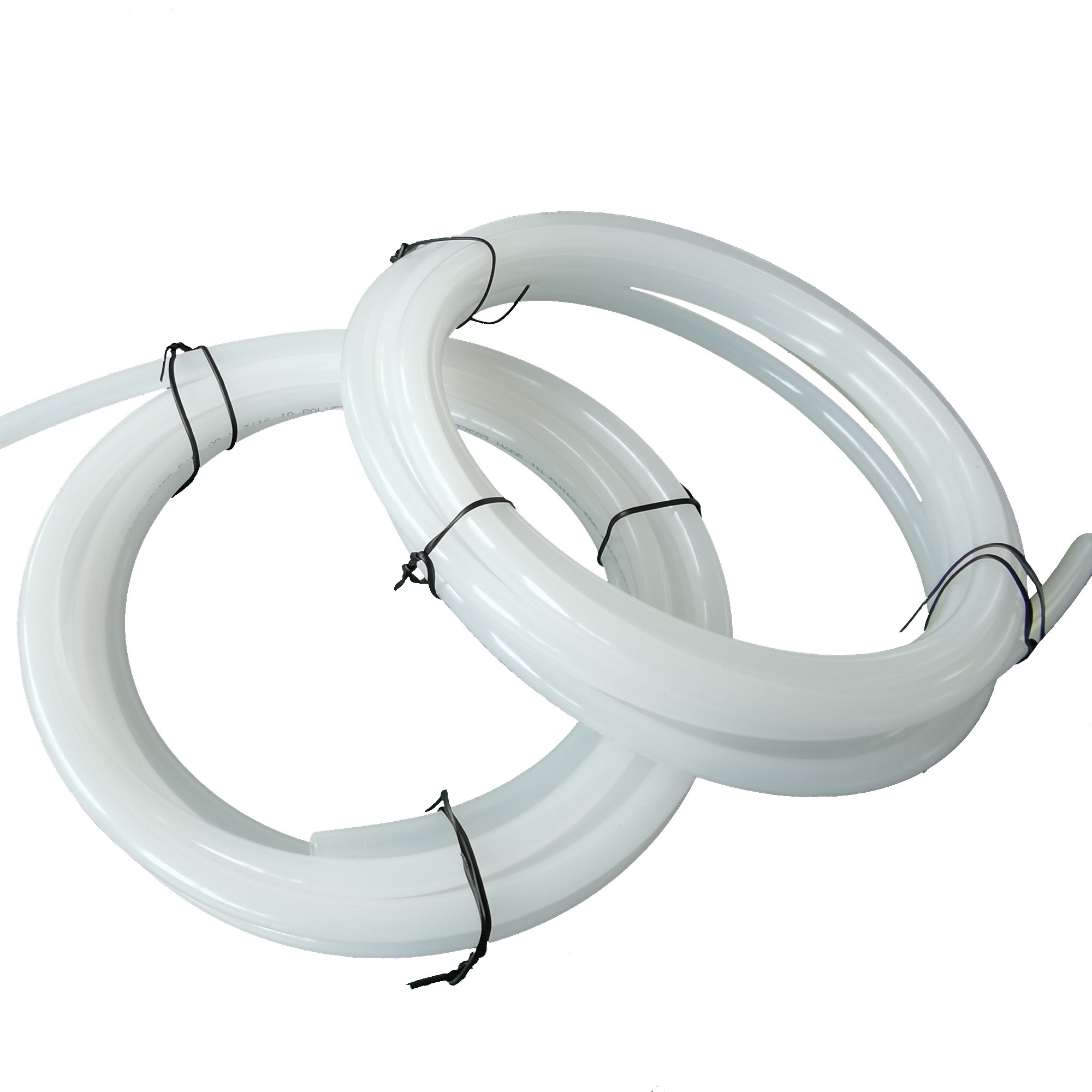

Free sample Factory price eco-friendly colored high quality 1.0mpa pe tubing
| Polythene Tube | |||||||
| Model |
Inside Diameter |
Oterside Diameter |
Iength |
Working Pressuer |
(20℃) Disruptive Pressure |
Bending Radius |
Working Temperature |
| mm | mm | M | MPa | MPa | mm | ℃ | |
| PE0425-200M | 2.5 | 4 | 200 | 0.8 | 3.0 | 20.0 | —40~60 |
| PE0604-200M | 4 | 6 | 200 | 0.8 | 3.2 | 30.0 | |
| PE0805-200M | 5 | 8 | 100 | 0.8 | 3.6 | 35.0 | |
| PE1065-200M | 6.5 | 10 | 100 | 0.8 | 3.3 | 45.0 | |
| PE1208-200M | 8 | 12 | 100 | 0.8 | 3.0 | 60.0 | |
| PE1410-200M | 10 | 14 | 100 | 0.8 | 2.8 | 80.0 | |
| PE1612-200M | 12 | 16 | 100 | 0.8 | 2.7 | 100 | |
| PE1/8"-200M | 2 | 3.2 | 200 | 1.0 | 3.1 | 20.0 | |
| PE5/32"-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 20.0 | |
| PE1/4"-200M | 4.35 | 6.35 | 200 | 1.0 | 3.0 | 30.0 | |
| PE5/16"-100M | 5 | 8 | 100 | 1.0 | 3.6 | 35.0 | |
| PE3/8"-100M | 6.5 | 9.6 | 100 | 0.8 | 3.0 | 45.0 | |
| PE1/2"-100M | 9.6 | 12.6 | 100 | 0.8 | 2.7 | 65.0 | |
PRODUCTION LINE
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
Payment>=20000USD, can also accept L/C at sight.
If you have another question, pls feel free to contact us as below
