Quick Details
-
Max. Turned Length (mm):
-
2000 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
C6251
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
239x115x143cm
-
Weight (KG):
-
2070 KG
-
CNC or Not:
-
Normal
-
Color:
-
Customized Option
-
Swing over cross slide:
-
305mm
-
Swing over gap:
-
735mm
-
Spindle taper:
-
No.7 Morse
-
Distance between centers:
-
1000mm
-
Quill diameter:
-
75mm
-
Max. Swing Diameter:
-
510mm
-
Certification:
-
CE, ISO9001, BV
-
Power:
-
1.1KW
Quick Details
-
Max. Length of Workpiece (mm):
-
2000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
80
-
Max. Turned Length (mm):
-
2000 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
C6251
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
239x115x143cm
-
Weight (KG):
-
2070 KG
-
CNC or Not:
-
Normal
-
Color:
-
Customized Option
-
Swing over cross slide:
-
305mm
-
Swing over gap:
-
735mm
-
Spindle taper:
-
No.7 Morse
-
Distance between centers:
-
1000mm
-
Quill diameter:
-
75mm
-
Max. Swing Diameter:
-
510mm
-
Certification:
-
CE, ISO9001, BV
-
Power:
-
1.1KW
Machine Features for C6251 China Hoston Lathe Machines Metal For Sale Craigslist
Technical Parameter for C6251 China Hoston Lathe Machines Metal For Sale Craigslist
|
Specification |
Model |
|
|
C6251 |
C6251V |
|
|
Swing over bed |
510mm(20”) |
|
|
Swing over cross slide |
305mm(12”) |
|
|
Swing in gap diameter |
735mm (28-7/8”) |
|
|
Distance between centers |
1000mm(40”) 1500mm(60”) 2000mm(80”) 3000mm(120”) |
|
|
Valid length of gap |
170mm(6-11/16”) |
|
|
Width of bed |
350mm(13-13/16n) |
|
|
Spindle nose |
D1-8 |
|
|
Spindle bore |
80mm(3-1/8”) |
|
|
Taper of spindle bore |
No.7 Morse |
|
|
Range of spindle speed |
12 changes, 25 -2000r/min |
25~1600 r/min |
|
Compound rest travel |
130mm(5-1/8”) |
|
|
Cross slide travel |
316mm(12-7/16”) |
|
|
Max. section of tool |
25x25mm(1” x1’’) |
|
|
Lead screw thread |
6mm or 4T.P.I. |
|
|
Longitudinal feeds range |
35kinds, 0.059 ~ 1.646mm/rev (0.0022” -0.0612”/rev) |
|
|
Cross feeds range |
42 kinds, 0.020 -0.573mm/rev (0.00048” -0.01354”/rev) |
|
|
Threads metric pitches |
47 kinds, 0.2 -14mm |
|
|
Threads imperial pitches |
60kinds,2 -112T.P.I. |
|
|
Threads diametral pitches |
50kinds,4 -112DP |
|
|
Threads module pitches |
34 kinds, 0.1 -7MP |
|
|
Quill diameter |
75mm(2-15/16”) |
|
|
Quill travel |
180mm(7-1/16”) |
|
|
Quill taper |
No.5 Morse |
|
|
Main motor power |
7.5kW(10HP)3PH |
|
|
Coolant pump power |
0.1kW(1/8HP)3PH |
|
|
Overall dimension(LxWxH) |
239x115x143cm 284x115x143cm 334x115x143cm 434x115x143cm |
|
|
Packing size(LxWxH) |
245x119x174cm 290x119x174cm 340 x119x174cm 440x119x174cm |
|
|
Net weight |
2070kg 2160kg 2435kg 2805kg |
|
|
Gross weight |
2460kg 2550kg 2840kg 3270kg |
|

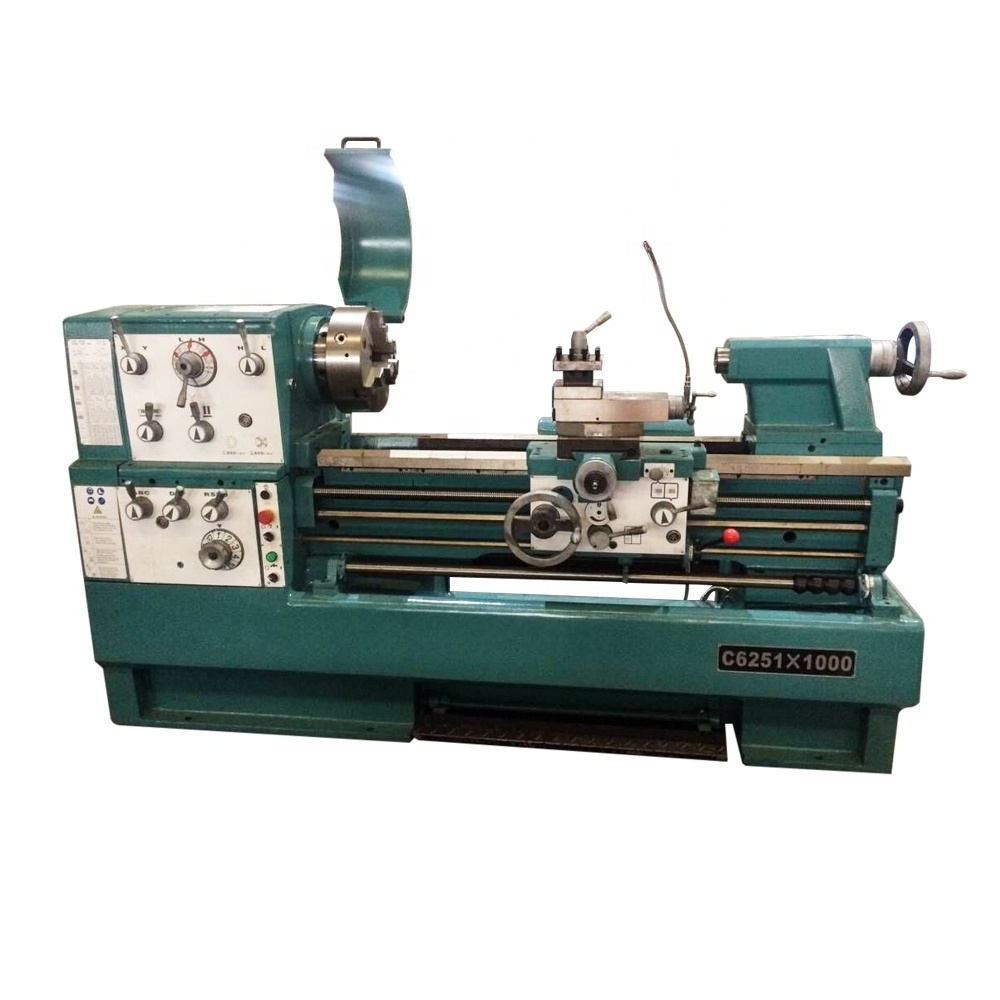

Product Pictures for C6251 China Hoston Lathe Machines Metal For Sale Craigslist
