Quick Details
-
Model Number:
-
BTR4
-
Product name:
-

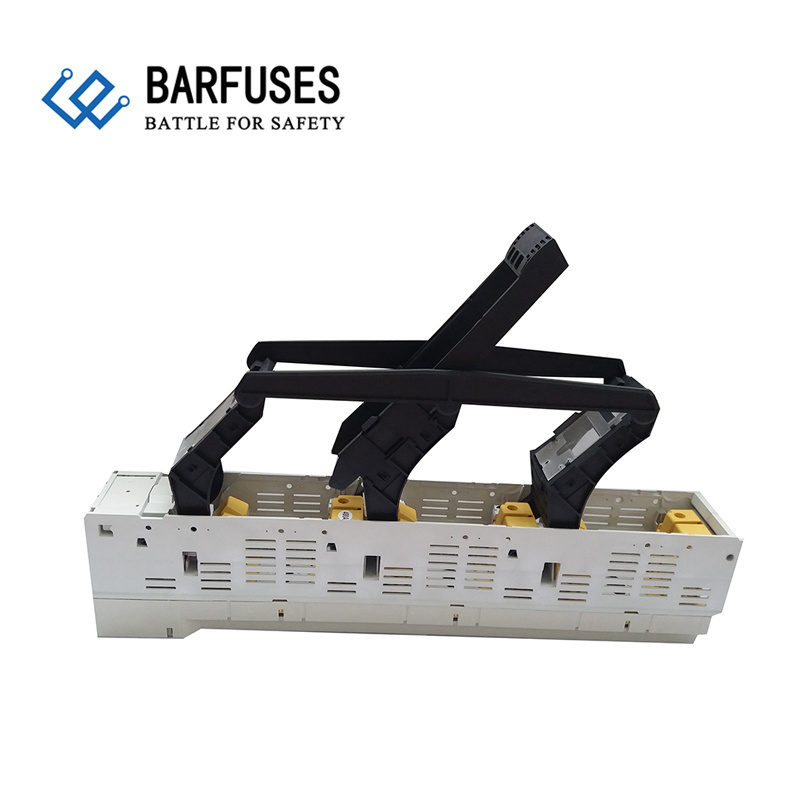

High quality BTR-4 Series 3P 630A auto fuse switch disconnector
-
Rated voltage:
-
415V, 500V, 690V
-
Rated current:
-
630A
-
rated impulse withstand voltage:
-
10KV
-
Degree of Protection:
-
IP30
-
Wire specifications:
-
300mm2
-
General connection mode:
-
V - Clamp
-
Fixed way:
-
Other accessories
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BARFUSE
-
Model Number:
-
BTR4
-
Product name:
-
High quality BTR-4 Series 3P 630A auto fuse switch disconnector
-
Rated voltage:
-
415V, 500V, 690V
-
Rated current:
-
630A
-
rated impulse withstand voltage:
-
10KV
-
Degree of Protection:
-
IP30
-
Wire specifications:
-
300mm2
-
General connection mode:
-
V - Clamp
-
Fixed way:
-
Other accessories
High quality BTR-4 Series 3P 630A auto fuse switch disconnector
| Type Of Fuse Switch | BTR4-250E | BTR4-400E | BTR4-630E | ||||||
| Rated Voltage (Ue) | 415, 500, 690V | ||||||||
| Rated Thermal Current (Ith) | 250A | 400A | 630A | ||||||
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
| Rated Insulation Voltage(Ui) | 1000V | 1000V | 1000V | ||||||
|
Rated Impulse
Withstand Voltage(Uimp) |
10KV | 10KV | 10KV | ||||||
| Application Classes | 415V | 500V | 690V | 415V | 500V | 690V | 415V | 500V | 690V |
| AC23B | AC22B | AC21B | AC23B | AC22B | AC21B | AC23B | AC22B | AC21B | |
| Degree Of Protection | IP30 | IP30 | IP30 | ||||||
| Fuse Size | 1 | 2 | 3 | ||||||
| Rated Voltage (Ue) | 415V | 500V | 690V | 415V | 500V | 690V | 415V | 500V | 690V |
| Rated Working Current(Ie) | 250A | 250A | 200A | 400A | 400A | 350A | 630A | 630A | 500A |
| Wire Specifications | 120mm² | 240mm² | 300mm² | ||||||
| The Default Connection Mode | V-clamp | ||||||||
| The Other Connection Mode | Screw&Cable lug | ||||||||
| Installation Of Busbar | 1. Punched rectangle busbar 2. Unpunched rectangle busbar 3. Other | ||||||||
| Fixed Way | 1. Screw 2. Hook 3. Other custom accessories | ||||||||
BARFUSE Electric Co., Ltd. located in Wenzhou, is a professional manufacturer of low voltage fuse swith disconnector base, fuse holder, bus bar system and high & low voltage distribution wiring managements products, such as MCB pan assembly, molded case power distributors(MCPD). The products are widely used in petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.
1.BARFUSE Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in Cartons and Pallets. If you have any special package,
we can pack the goods according to your requirements.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contact:Ms Grace
Mobile:+86 13968736669
Website: www.barfuse.com
