Quick Details
-
Horizonal Travel(mm):
-
less than 2500mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tongli
-
Weight:
-
350 kg
-
Dimension(L*W*H):
-
non-standard
-
Power:
-
220V
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Load, picking and placing
-
Max loading:
-
650kg
-
Product name:
-
Pneumatic Industrial Manipulator
-
Name:
-
Pneumatic Industrial Manipulator
-
Quantity of control axis:
-
3/5axis
-
Function:
-
Take-out Products
-
Material:
-
Iron
-
Control system:
-
Air
-
Weight (KG):
-
400 kg
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
pneumatic
-
Vertical Travel(mm):
-
1.5-2m
-
Horizonal Travel(mm):
-
less than 2500mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tongli
-
Weight:
-
350 kg
-
Dimension(L*W*H):
-
non-standard
-
Power:
-
220V
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Load, picking and placing
-
Max loading:
-
650kg
-
Product name:
-
Pneumatic Industrial Manipulator
-
Name:
-
Pneumatic Industrial Manipulator
-
Quantity of control axis:
-
3/5axis
-
Function:
-
Take-out Products
-
Material:
-
Iron
-
Control system:
-
Air
-
Weight (KG):
-
400 kg

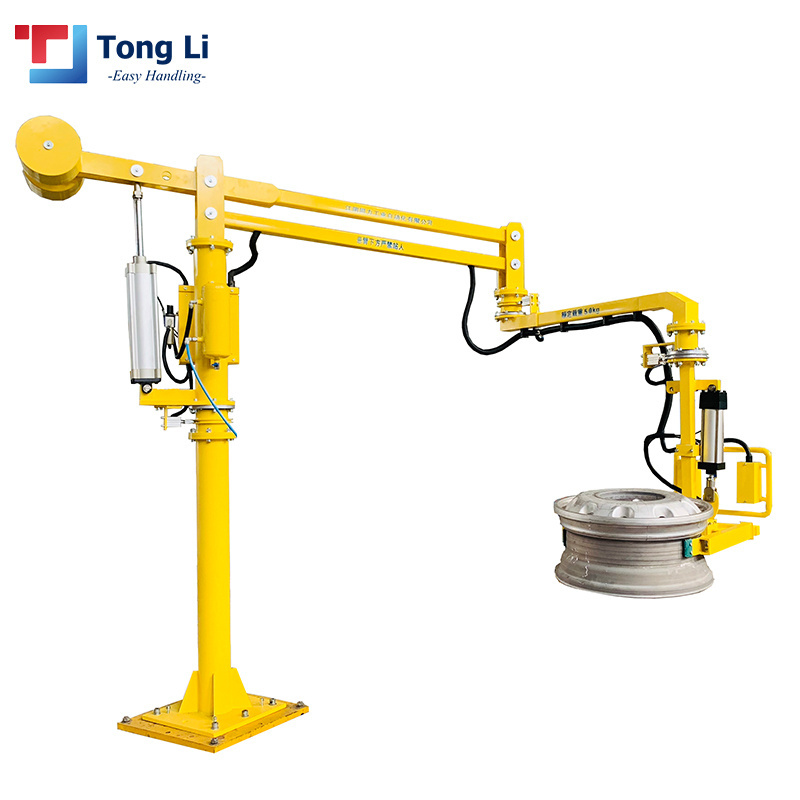

Balance Pneumatic Articulated Easy Manipulator Low Cost Heavy Robot Arm
Six reasons why you have to choose our manipulator.
flexible operation & save time and effort
reduce personnel & reduce cost
durable & energy-saving and efficient
With the high development of modern high-tech power, more and more advanced technologies have been applied to logistics activities, and one of the relevant important applications is the transport manipulator.Pneumatic manipulator, as a kind of manipulator, is widely used because of its advantages including simple structure, light weight, fast movement, stable, reliable, energy saving and environmental protection.
The carrying manipulator usually has the following three characteristics:
1.The pins can be designed with pneumatic or mechanical clamps and vacuum suckers.
2.Each arm is individually designed for practical use. The metal body of the manipulator is suitable for various industrial applications.
3.Watch moves, lifts and clamps by PLC or industrial computer to complete a set task.
Technical Parameter of Industrial Manipulator
|
Model |
Operational air pressure (bar) |
Max. Action Radius (m) (It can be adjusted according to actual conditions) |
Max payload (Kg) |
Maximum lifting stroke (m) (It can be adjusted according to actual conditions) |
|
TLJXS -50 |
5 |
2.5 |
50 |
2 |
|
TLJXS -75 |
5 |
2.5 |
75 |
2 |
|
TLJXS -100 |
5 |
2.5 |
100 |
2 |
|
TLJXS -125 |
5 |
2.5 |
125 |
2 |
|
TLJXS -150 |
5 |
2.5 |
150 |
2 |
|
TLJXS -175 |
5 |
2.5 |
175 |
1.5 |
|
TLJXS -200 |
5 |
2.5 |
200 |
1.5 |
|
TLJXS -250 |
5 |
2.5 |
250 |
1.5 |
|
TLJXS -300 |
5 |
2.5 |
300 |
1.5 |
|
TLJXS -400 |
5 |
2.5 |
400 |
1.5 |
|
TLJXS -500 |
5 |
2.5 |
500 |
1.5 |
|
Working radius and lifting stroke can be set according to workpiece size and site requirements |
||||
Send Inquiry>>
Click for More Information ! ! !
Delivery : By sea, air and land transportation
Manipulator Application:
Provide clamp customization services to meet the needs of all industries!
