Quick Details
-
Insulation Material:
-
High Temperature Fiberglass(600℃,max 800℃)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Silvertin
-
Model Number:
-
KX
-
Product name:
-
PWHT Accessories Cable Thermocouple Type K 600C ANSI
-
Size:
-
2x0.711mm
-
Packing:
-
100M/Black spool
-
Keyword:
-
PWHT Cable Thermocouple Type K Cable
-
Material:
-
Twisted glassfiber thermocouple wire
-
Negative Color:
-
ANSI color Red
-
Positive Color:
-
ANSI color Yellow
-
Working temperature:
-
600C
-
Max temperature:
-
800C
-
Single Strand Wire Diameter:
-
22 Swg/0.71 mm TC wire
Quick Details
-
Application:
-
Heating And Furnace Measerment
-
Conductor Material:
-
Chromel Alumel
-
Conductor Type:
-
Solid
-
Insulation Material:
-
High Temperature Fiberglass(600℃,max 800℃)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Silvertin
-
Model Number:
-
KX
-
Product name:
-
PWHT Accessories Cable Thermocouple Type K 600C ANSI
-
Size:
-
2x0.711mm
-
Packing:
-
100M/Black spool
-
Keyword:
-
PWHT Cable Thermocouple Type K Cable
-
Material:
-
Twisted glassfiber thermocouple wire
-
Negative Color:
-
ANSI color Red
-
Positive Color:
-
ANSI color Yellow
-
Working temperature:
-
600C
-
Max temperature:
-
800C
-
Single Strand Wire Diameter:
-
22 Swg/0.71 mm TC wire
Product Description

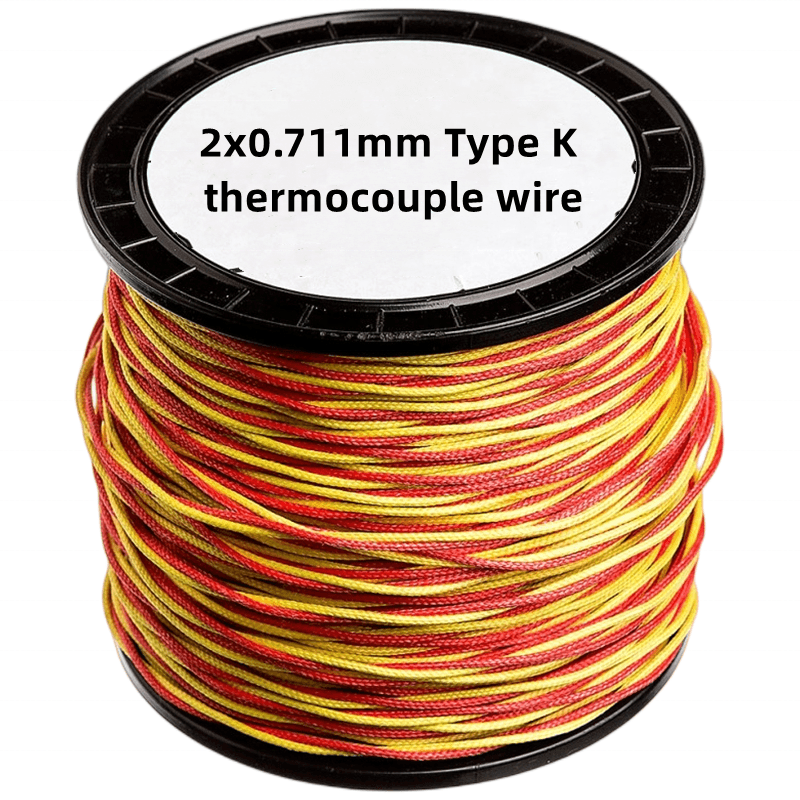

700C Max 1/0.711mm Type K Thermocouple Wire 100m roll
High Temperature Glass Fibre Insulation
Red and Yellow Thermocouple wire
Type K thermocouple wire,
which welded to the workpiece by thermocouple attachment unit, outjacket is high temperature glass fiber cloth, Accurate temperature signal transduction to PWHT equipment and recorder. Two core conductors insulated by glass-fiber twised together，Type K thermocouple wire, insulated with high temperature glass braid, is used to convert the thermal energy at the hot junction of thermocouple to an electrical mV signal which can then be used by temperature control and recording instruments to accurately record and control the temperature of the item being heat treated.
|
Specification
|
|
|
Single strand wire diameter (each conductor)
|
0.711 mm
|
|
Thermocouple type
|
K
|
|
Conductor material
|
Positive conductor - Nickel/Chrome---Yellow
Negative conductor- Nickel/Aluminium---Red
|
|
Insulation
|
Glass fibre, braided and varnished, red and yellow
|
|
Insulation temperature rating
|
Workingtemp：600℃，Max 800°C
|
|
Construction
|
Twisted pair
|
|
Applicable standards
|
BS 4937 BSEN 60584.2 relevant sections. All comparable international standards
|
|
Weight
|
1.5kg/roll
|
|
Length
|
100m/roll
|
Details Images
Applications
---- Used To Convert the thermal energy at the hot junction of the thermocouple to an electrical mV signal
---- Can then be used by temperature control and recording instruments to accurately control and record the temperature of the item being heat treated.
----Thermocouple wire is attached directly to the workpiece using the ‘Thermocouple Attachment Unit’
---- Can then be used by temperature control and recording instruments to accurately control and record the temperature of the item being heat treated.
----Thermocouple wire is attached directly to the workpiece using the ‘Thermocouple Attachment Unit’
Other Wires & Cables
Model Index
|
Material
|
PTFE
|
PFA
|
PVC
|
Fiber-glass
|
Silicon
|
Kapton
|
Quartz fiber
|
|
Max temp(°c)
|
260
|
260
|
108
|
400
|
200
|
400
|
800
|
