Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YT
-
Voltage:
-
220V &380V
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Weight:
-
1200 kg
-
Warranty:
-
1 Year
-
PLC Brand:
-
other
-
Name:
-
Flatbed Cutting Plotter
-
Tool:
-
Oscillating tool, Half cut, V cut, Router, Foam cut
-
Table:
-
Conveyor table (moving table)
-
Position type:
-
Auto camera position system
-
Power:
-
9.5KW
-
Cutting thick:
-
≤10mm
-
Cuttable material:
-
KT board/PVC sheet/white card corrugated board/Red cardboard
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
1200mm/s
-
Max. workable width:
-
1200mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YT
-
Voltage:
-
220V &380V
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Weight:
-
1200 kg
-
Warranty:
-
1 Year
-
PLC Brand:
-
other
-
Name:
-
Flatbed Cutting Plotter
-
Tool:
-
Oscillating tool, Half cut, V cut, Router, Foam cut
-
Table:
-
Conveyor table (moving table)
-
Position type:
-
Auto camera position system
-
Power:
-
9.5KW
-
Cutting thick:
-
≤10mm
-
Cuttable material:
-
KT board/PVC sheet/white card corrugated board/Red cardboard

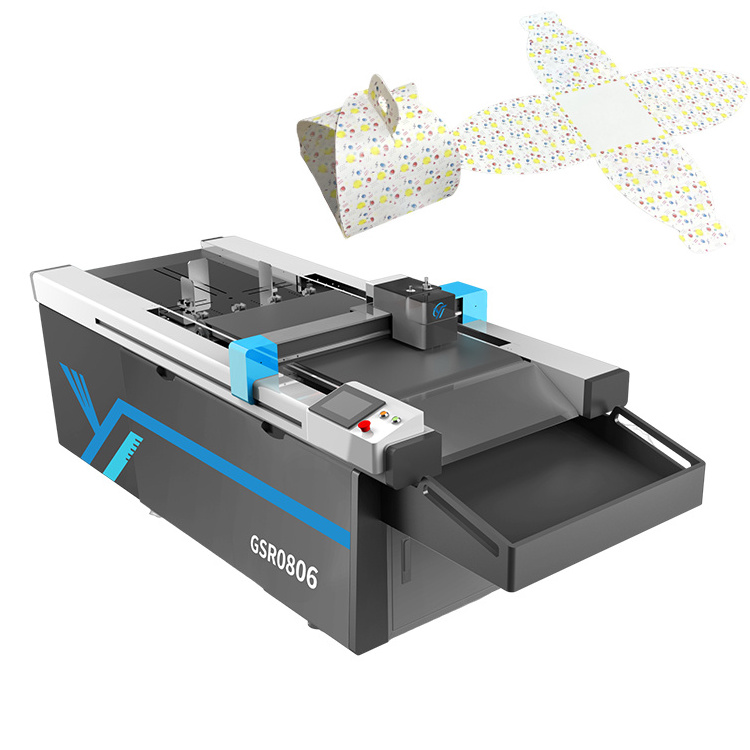

GSR Series CNC Digital Corrugated Cardboard Vinyl Flatbed Cutting Plotter Carton Box Sample Making Machine for Stickers
Technical Parameter
|
Machine model
|
GSR0604
|
GSR0806
|
GSR1209
|
||
|
Effective cutting range
|
600x400mm
|
800x600mm
|
1200x900mm
|
||
|
Standard
|
Pen,Laser light,drag knife, creasing wheel,kiss cut,CCD
|
|
|
||
|
Max.Cutting
|
≤2mm
|
|
|
||
|
Cutting Material
|
Stickers, cardboard, PP paper, labels, etc.
|
|
|
||
|
Max. Speed
|
≤1200mm/s
|
|
|
||
|
Graphic Format
|
PLT、DXF、AI、DST、SVG
|
|
|
||
|
Fixing method
|
Vacuum
|
|
|
||
|
Repeat Accuracy
|
≤0. 01mm
|
|
|
||
|
Voltage
|
220V/380V±10%50HZ
|
|
|
||
|
Dimensions
|
2580*920*1180mm
|
3180*1120*1180mm
|
4380*1420*1180mm
|
||
The integrated loading and unloading structure is adopted to realize the one-time completion of feeding, cutting and receiving, which greatly saves labor costs, improves work efficiency, and realizes fast delivery; it is equipped with a variety of different knives to realize the application and cutting of different materials; No need to make the cutting dies, saving the time and cost of making dies.
Feature
Precise and fast positioning of the cut,automatically correct cutting graphics
Taiwan Hiwin Linear guide is designed for long-term production, with high precision and low noise.
Realize arbitrary switching of tools, cutting multiple materials at the same time
Automatic Feeding System
Cutting and receiving materials are completed at one time, which greatly saves labor costs and improves work efficiency
