LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups
LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for  jars tubes container cartridges cups

LC Brand Automatic UV water bottle screen printer cylindrical screen printing machine for jars tubes container cartridges cups

FOB Reference Price: Get Latest Price
≥1 Sets
US $23000
≥3 Sets
US $19885
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
LC
Dimensions(L*W*H):
1900*1200*1600mm
Weight:
1000 KG
Certification:
CE
Warranty:
1 year
Application area:
Printing on round or oval containers.
Product name:
UV screen printer screen printing machine automatic blanking
Printing Product Shape:
Eliptical & Cylindrical
Max running speed:
4000-4500PCS/HR
UV lamp power:
4KW/PC
Auxiliary machine:
Auto-feeding system & Auto-unload platform
After Warranty Service:
Video technical support

Quick Details

Condition:
New
Color & Page:
single color
Voltage:
380V
Place of Origin:
Guangdong, China
Brand Name:
LC
Dimensions(L*W*H):
1900*1200*1600mm
Weight:
1000 KG
Certification:
CE
Warranty:
1 year
Application area:
Printing on round or oval containers.
Product name:
UV screen printer screen printing machine automatic blanking
Printing Product Shape:
Eliptical & Cylindrical
Max running speed:
4000-4500PCS/HR
UV lamp power:
4KW/PC
Auxiliary machine:
Auto-feeding system & Auto-unload platform
After Warranty Service:
Video technical support
Product description

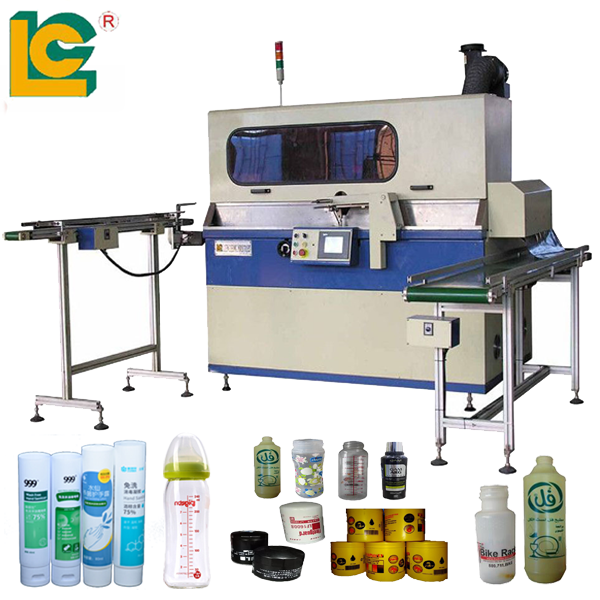

Automatic Silk Screen Printing Machine For Bottle Jar Cup Tube Cans LC-120AL-1

Machine advantage:
1. This machine is specially designed for printing round and oval bottles. One machine is suitable for many kinds of products. It is easy to replace the fixture and operate
2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is mechanical conveyor , touch control panel operation , easy to operation the machine. Fast adjustment, easy operation.Fast printing,speed:3600pc/hr.
4. Fully automatic, the machine will alarm without product loading and no printing without product. It can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.



Function:


1. Mechanical feeding hand
2. Surface flame treatment
3. Automatic lifting printing
4. UV curing treatment
5. Touch screen operation
6. Electronic sensor to detect air pressure, whether there is a bottle

Specifications
Printing Product Shape
Eliptical
Cylindrical
Max printing length
120mm
270mm
Max printing width
250mm
250mm
Object application dimension
25mm<R<260mm
25mm<D<100mm
60mm<L<300mm
60mm<L<270mm
Max running speed
4500pcs/Hr
4000pcs/Hr
UV lamp power
4KW/pcs
Air supply
6Bar
Master&Subsidiary Printer
Auto-feeding system(optional)
Auto-unload platform(optional)

Power Supply
AC380V 3Phase
AC220V 2Phase
AC220V 2Phase
45A/(1-3)pas 100A/(4-5)pas
0.4KVA
90VA

Machine Diension
Master:1900*1200*1600mm

2850*1300*1500mm

2130*530*800mm
Subsidiary:2600*1200*1600mm

Machine Weight
Master:1000kg

480kg

150kg
Subsidiary:800kg
Printing sample
Shampoo Bottle
Baby Milk Bottle
Tube
Cup
Different shape bottle
For more information,please contact me.
Feedback
company information
Luen Cheong Printing Equipment Group Limited is established in 1991,we are specislizing in manufacyuring printing machines and equioment for 28years,including a various of pad printer,silk screen printer,hot foil stamping machine,UV Curing machines and pre-post printing machine In order to give our customer more guarantee,we used the imported famous brand original spare parts to our machine.The material of our machine is alloy cast aluminum and the surface is Powder spraying.The main parts which cylinder is from Original Germany FESTO,which can keep the machine working stable and high speed.All our LC machine have CE approval.And our customer came froom American,UK,Germany,France and other 126different countries.We are sure LCis your best choice.
Our Services
1.The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.
2.The supplier must sure the machine all work well before package.
3.we will provide the working video after delivery the machines.
4.Welcome your engineers to come to our factory for training.
Packaging & Shipping
FAQ
Q:Are you a factory or a trading company?
A:We are factory manufacture of printing machine and we provide perfect OEM and after-sale service.
Q:Can you send me the video to show how the machine works?
A:Certainly,we have made video of every machine and uploaded them to Youtube.
Q:How can I know your machine works well?
A:Before delivery,we shall test the machine working condition for you.
Q:How can I know your machine is designed for my product?
A:You can send us samples of your product and we test it on machine.
Q:What is the paying methods?
A:We can accept the L/C ,Paypal,T/T and other way.
Q:Do you have a CE certificate?
A:For every model of machine,it has a CE certificate.
