- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ARKREF
-
Product name:
-

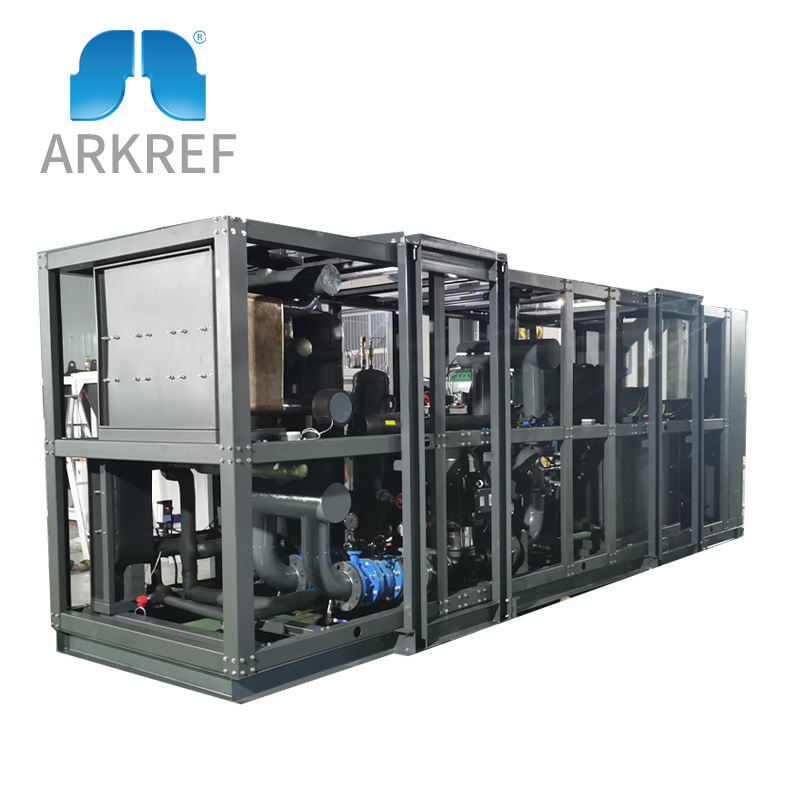

Freezing Condensing Units Co2 Compressor
-
The motor power (KW):
-
22.5
-
Voltage:
-
3P-380V-50HZ
-
accumulator (L):
-
40
-
A Exhaust pipe diameter (mm):
-
35
-
Brand Name::
-
ARKREF
-
B Exhaust pipe diameter (mm):
-
57*1
-
C Drain pipe diameter (mm):
-
22
-
D Diameter of liquid supply pipe (mm):
-
22
-
Weight:
-
908
Quick Details
-
Type:
-
Refrigeration accessories
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARKREF
-
Product name:
-
Freezing Condensing Units Co2 Compressor
-
The motor power (KW):
-
22.5
-
Voltage:
-
3P-380V-50HZ
-
accumulator (L):
-
40
-
A Exhaust pipe diameter (mm):
-
35
-
Brand Name::
-
ARKREF
-
B Exhaust pipe diameter (mm):
-
57*1
-
C Drain pipe diameter (mm):
-
22
-
D Diameter of liquid supply pipe (mm):
-
22
-
Weight:
-
908
Sucessful Cases
ADVANTAGE OF OUR CO2 COMPRESSOR CONDENSING UNIT
1)
30
Years Of Compressor Condensing Unit Manufacturing Experiences;
1
0
Years Of CO2 CDU Manufacturing Experiences;
100+
Sets
CO2
CDU Running All Over The World
Supplier Of
2022 WINTER
OLYMPIC GAMES
CO2
Refrigeration system
2)
Suitable Using For All Kinds Of Refrigeration System .
IQF+COLD ROOM + SUPER MARKET +SKATING RINK
3)
Customized
Cooling Capacity
4)
Transcritical & Subcritical
5)
Low Pressure Circulation System
1
Low Pressure Circulation Vessel +
2
Refrigeration Circulation Pump.
6)
Heat Recovery PHE.
7)
Frequency Inverter
8)
CAREL Control System
|
CDU MODEL
|
USING FOR
|
COMPRESSOR
|
|
SPBL24x27YTC
|
MARKET SHOWING CASE
|
BITZER
|
|
SPBH550YTC
|
ICE MACHINE & High Temperature Room
|
BITZER
|
|
SPBL530x550YTX
|
-42℃ Quick Freezing
|
BITZER
|
|
Project name:
|
Quick Freeze Vegetables and Fruits
|
|
Country：
|
Bulgaria
|
|
Electric system：
|
3*380V-50HZ
|
|
Refrigerant：
|
CO2
|
|
Host requirements: condensing unit/liquid storage unit/chiller unit
|
1. When the evaporation temperature is -35°C to -40°C, the cooling capacity is 300KW, and heat recovery is required; the heat recovery inlet water temperature is 40°C. The outlet water temperature is above 60°C, the higher the better.
2. Hot water for milk and cheese processing 3. Hot water circulates in a closed system The customer requires a pure CO2 system, do not overlap |
|
Evaporator:
|
1. The customer has prepared a fluidized flat plate quick-freezing machine, the quick-freezing capacity is 1800kg/h, the incoming
temperature is 6°C to 8°C; the delivery temperature is -18°C; the moisture content of the goods is 84% |
|
Condenser: air cooling/water cooling/evaporative cooling
|
Customer has installed Baltimore Open Cooling Tower; Model FXT97R
|
|
|
Bitzer compressors 4NSL-30K*5 units + 6FTE-50K*5 units run in parallel, including R744 heat recovery device and water-cooled
condenser
|
Related Products
1.
CO2 refrigerant is non-toxic, non-flammable, ODP=0, GWP=1, high density, low viscosity, and good heat transfer effect.
2.
Booster CO2 refrigeration unit Booster two-stage supercharging, auxiliary compression and other technologies are used to achieve transcritical operation.
3.
High COP On the basis of conventional transcritical system, auxiliary compression, vapor-vapor ejector and gas-liquid ejector technology are adopted to greatly improve the COP.
4.
-50℃~+20℃ wide temperature range Wide range of evaporation temperature, minimum evaporation temperature -50 ℃, maximum evaporating temperature +20 ℃, suitable for quick freezing, low temperature refrigeration, high temperature warehouse, workshop air conditioning and refrigeration system applications.
5.
40℃~100℃ hot water It can produce 40℃-100℃ high-temperature hot water while satisfying refrigeration. It can be used in applications such as heating, domestic hot water, hot water for production and processing, heat pump air conditioning, and large temperature difference improvement in the pipe network.
Why use R744 refrigerant?
1. Low operating cost:cheap and easy to buy
2. High safety: CO2 is non-toxic, non-flammable, non-flammable, non-corrosive to equipment, and has stable chemical properties
3. Technical advantages: widely used in Europe, R744 is more environmentally friendly than other refrigerants and will not destroy the ozone layer
4. Lower temperature: Cascade units can easily reach room temperature of -30°C.
3. Technical advantages: widely used in Europe, R744 is more environmentally friendly than other refrigerants and will not destroy the ozone layer
4. Lower temperature: Cascade units can easily reach room temperature of -30°C.
