Quick Details
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
2000 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QUATE
-
Voltage:
-
220 V/380 V
-
Dimension(L*W*H):
-
450*550*900 MM
-
Weight (KG):
-
120 KG
-
Product name:
-
grinding pulverizer machine
-
Machine Type:
-
GD-180
-
Function:
-
powder flour grinding
-
Usage:
-
coffee,salt,chilli,soybean etc
-
Advantage:
-
High Effieciency
-
Grind typeTurbo:
-
gear disc, Hammer,Dump Type
-
Name:
-
Flour Grinding Machine
-
Keyword:
-
Spice Powder Pulverizer
-
Machine Name:
-
Powder Mill Machine
Quick Details
-
Output (kg/h):
-
20 - 500 kg/h
-
Feeding Size (mm):
-
2 - 6 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
2000 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QUATE
-
Voltage:
-
220 V/380 V
-
Dimension(L*W*H):
-
450*550*900 MM
-
Weight (KG):
-
120 KG
-
Product name:
-
grinding pulverizer machine
-
Machine Type:
-
GD-180
-
Function:
-
powder flour grinding
-
Usage:
-
coffee,salt,chilli,soybean etc
-
Advantage:
-
High Effieciency
-
Grind typeTurbo:
-
gear disc, Hammer,Dump Type
-
Name:
-
Flour Grinding Machine
-
Keyword:
-
Spice Powder Pulverizer
-
Machine Name:
-
Powder Mill Machine
Product Description

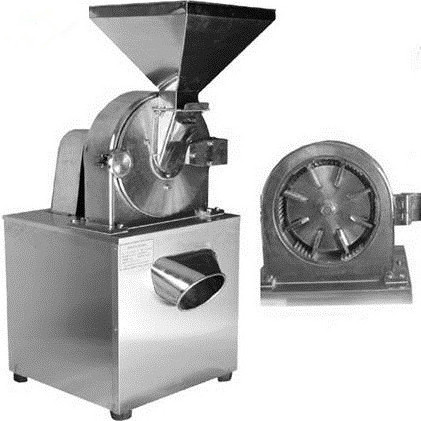

Milling Machine Dry Chilli Sugar Salt Rice Spice Grinding Machine
The structure of this machine is simple, sturdy, and runs smoothly. The crushed material is uniform, and the effect is good. This machine is made of stainless steel. All the coggings inside the casing (grinding groove) are precision machined to achieve a smooth surface and easy cleaning.The crusher mill machine is widely used in pharmaceutical, food, chemical, it can crush various of material. The machine is made up of feeding material part and crush part, and dust collect part.
Regarding this product, we have different models for you to choose,the specific information please contact us.
Product Paramenters
|
Model
|
GD-20B
|
GD-30B
|
GD-40B
|
GD-50B
|
GD-60B
|
GD-80B
|
|
Capacity
(kg/h) |
60-150
|
100-300
|
160-800
|
200-1000
|
300-1500
|
400-2000
|
|
Shaft speed (r/min)
|
4500
|
3800
|
3400
|
3200
|
2800
|
2000
|
|
Fineness size (mesh)
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
|
Motor power(kW)
|
4
|
5.5
|
7.5
|
11
|
15
|
22
|
|
Dust removal motor
(kW) |
1.5
|
1.5
|
11
|
15
|
22
|
37
|
|
Weight
(kg) |
180
|
260
|
360
|
450
|
550
|
850
|
|
Dimension (mm)
(Without dust removal system) |
550*600*1250
|
600*700*1450
|
750*800*1550
|
800*850*1600
|
1000*900*1680
|
1100*950*1960
|
|
Dimension (mm)
(With dust removal system) |
1100*600*1650
|
1200*700*1650
|
1350*800*1700
|
1450*850*1750
|
1550*1000*1750
|
|
