FOB Reference Price: Get Latest Price
≥1 Pieces
US $3000
≥50 Pieces
US $2600
≥100 Pieces
US $2200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
Min12.6kw & customized
Dimension(L*W*H):
3792*2600*4768mm
Model:
JD-Q326
Processing capacity:
≤200KG
Maximum weight per workpiece:
15KG
Maximum load capacity:
200KG
Steel shot diameter:
0.2-2.5mm
End disc diameter:
650mm
Track aperture:
10mm
Track power:
1.1Kw
Track speed:
3.5r/min
Sand blasting rate:
78m/S

Quick Details

Place of Origin:
Shandong, China
Brand Name:
JUNDA
Weight (KG):
1000 KG
Power:
Min12.6kw & customized
Dimension(L*W*H):
3792*2600*4768mm
Model:
JD-Q326
Processing capacity:
≤200KG
Maximum weight per workpiece:
15KG
Maximum load capacity:
200KG
Steel shot diameter:
0.2-2.5mm
End disc diameter:
650mm
Track aperture:
10mm
Track power:
1.1Kw
Track speed:
3.5r/min
Sand blasting rate:
78m/S
Product name:
Asphalt wire mesh tunnel ship deck steel plate stone profile beam steel vertical used wheel shot blasting machine

Product Description:

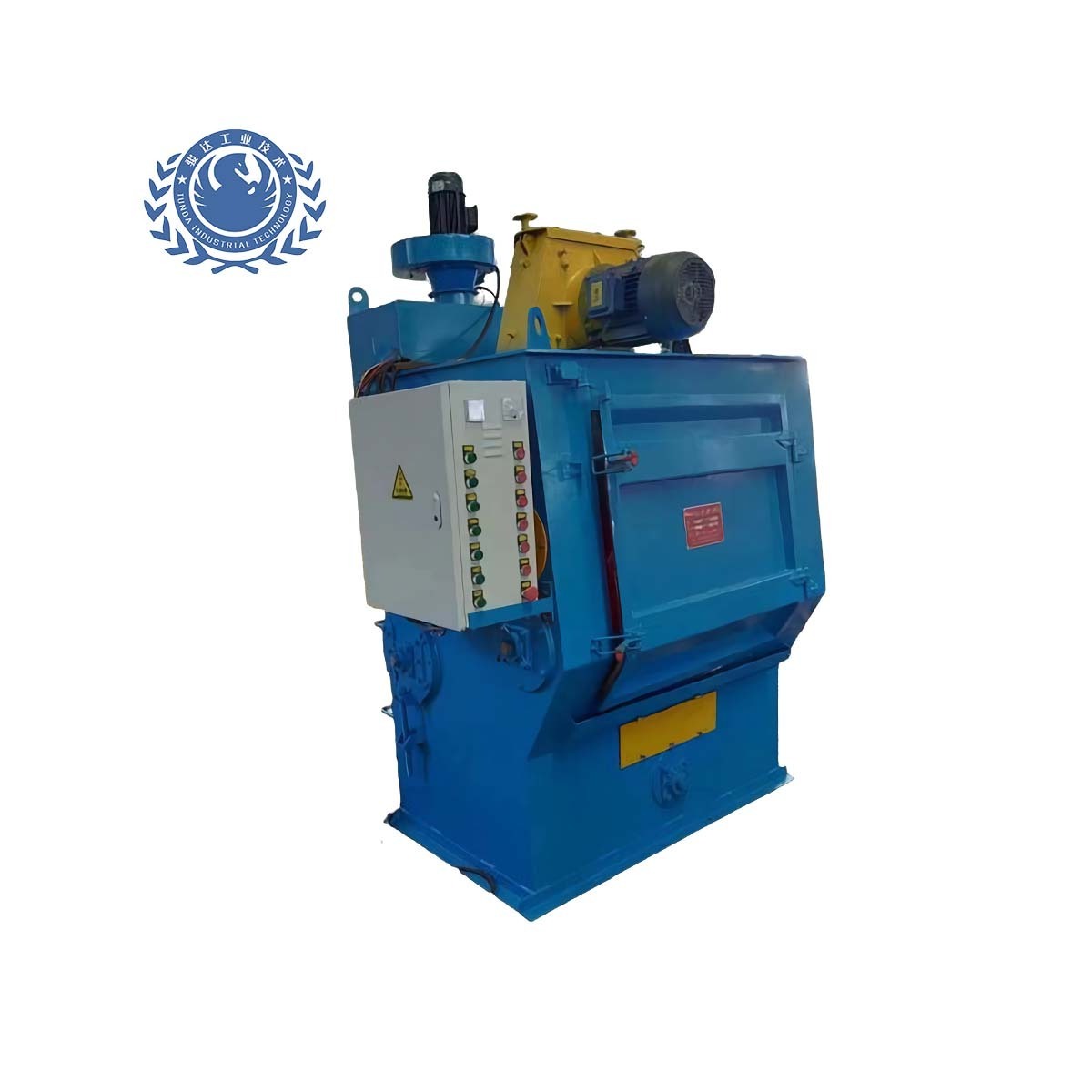

The Crawler rubber belt type shot blasting machine is a smaller blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces.
This machine is for workpiece surface cleaning, rust removal, and intensify, and is mainly used for cleaning.
many varieties of mass production parts, especially workpieces that can bear collision. This machine can be used in single
applications ,and also can be used in groups.
Specification
item
specification
Model
JD-Q326
Processing capacity
≤200KG
Maximum weight per workpiece
15KG
Maximum load capacity
200KG
Steel shot diameter
0.2-2.5mm
End disc diameter
650mm
Track aperture
10mm
Track power
1.1Kw
Track speed
3.5r/min
Sand blasting rate
78m/S
Shot blasting quantity
110KG/min
Impeller diameter
420mm
Impeller speed
2700rmp
Impeller power
7.5Kw
Lifting capacity of hoist
24T/h
Lifting rate of hoist
1.2m/s
Hoist power
1.5Kw
Separator separation amount
24T/h
Separator air volume
1500m³/h
Main ventilation volume of precipitator
2500m³/h
Dust collector power
2.2Kw
Dust collector filter material
Filter bag
First loading steel shot quantity
200KG
Throughput of bottom screw conveyor
24T/h
Compressed air consumption
0.1m³/min
Gross weight of equipment
100KG
Equipment size length, width and height
3792×2600×4768
Total power of equipment
12.6Kw
Product details
Application:
1,Agriculture industry Shot blasting: Tractor components, water pumps, farm implements, etc. 2,Automobile industry Shot blasting: Engine blocks, cylinder heads, break drums, etc. 3,Building & infrastructure industry Shot blasting: Structural steel, bars, transmission & television towers, etc. 4,Transportation industry Shot blasting: Engine blocks, axle & crank shafts, diesel engine components, etc. 5,Oil & gas industry Surface preparation: Pipes coating with paper, cement, epoxy, polythene, coal tar, etc. 6,Mining industry Shot blasting: Bulldozer, dumpers, crushers, land fill equipments, etc. 7,Foundry industry Shot blasting: Automobile, tractor, scooter & motor cycle components, etc. 8,Aviation industry Shot peening: Jet engine, blades, propeller, turbine, hubs, land gear components, etc. 9,Air polution control equipments Applications: Foundry, carbon black, furnace, cupola, etc. 10,Ceramic/paver industry Applications: Antiskid, footpath, hospital, government buildig, public places, etc.
Our Certification
Video Description
Packing & Delivery

Installation and Warranty

1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and meals, etc Customer needs arrange 3-4 skilled worker and prepare installation machinery and tools. 2. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery. 3. Supply full English documents: including foundation drawings, operating manual , electric wiring diagram, electric manual book and maintenance book,etc.
Company Profie
Jinan Junda Industrial Technology is a manufacturer for sandblasting Machinery & Shot Blasting Machine since 2005. Products cover sandblaster , sandblasting machine , sandblasting cabinet , Dust Collector and full-line Shot Blasting Machines. We owned 2 work shop area for production .ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products. 3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements. Our philosophy: Professional, Efficienct, Loyal, Our mission: To creat core vlaue for our customer, our staff and our company. Choose Junda,Get factory price and reliable shot blasting Machinery!
Company customer visit map
FAQ
Q1:What is basting speed of tumble belt shot blasting machine ? A:3-5 min per one batch. Q2:What is max loading weight of tumble belt shot blasting machine ? A:200 to 800 kgs. Q3:What kind of abrasives are used for tumble belt shot blasting machine ? A:Steel shots, steel grits or steel cut wire. Q4:Is it necessary to dig pit for installation of tumble belt shot blasting machine ? A:No Q5:Is it possible to install tumble belt shot blasting machine by buyer himself ? A:Yes Q6:How many operators are needed to run tumble belt shot blasting machine ? A:1 operator. Q7:Is the automatic and pneumatic lifting door available ? A:Optional. Q8:Is the lift loading bucket available ? A:Optional. Q9:How to choose right belt material, rubber or metal? A:Metal belt normally for hot casting or heavy duty work pieces. Rubber belt normally for normal temperature and common weight work pieces
