Quick Details
-
Brand Name:
-
Darhor
-
Keywords:
-
3 way stainless steel motorized ball valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
Quality warranty:
-
One year guarantee
-
Staff:
-
200-500
-
Connection:
-
BSP, NPT
-
Order lead time:
-
7~15 day after the payment is finished
-
Sample leadtime:
-
2-3 days
-
Body material:
-
SS304/SS316
Quick Details
-
Port Size:
-
1/2", 3/4", 1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHWX
-
Brand Name:
-
Darhor
-
Keywords:
-
3 way stainless steel motorized ball valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
Quality warranty:
-
One year guarantee
-
Staff:
-
200-500
-
Connection:
-
BSP, NPT
-
Order lead time:
-
7~15 day after the payment is finished
-
Sample leadtime:
-
2-3 days
-
Body material:
-
SS304/SS316
Product Description

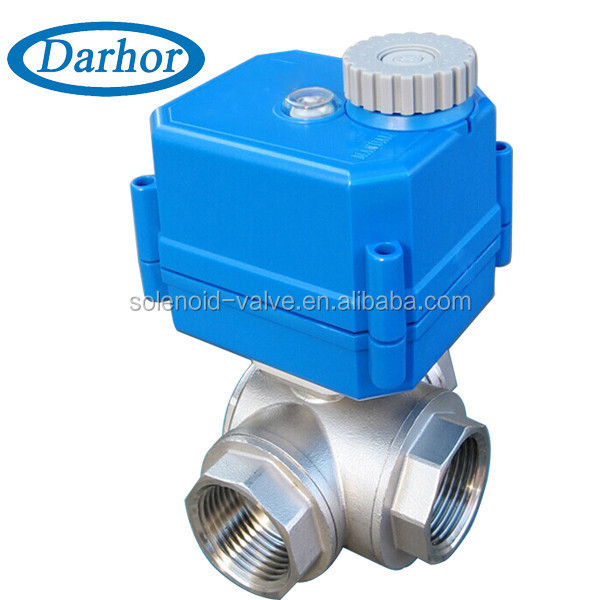

3 WAY stainless steel motorized ball valve
Features:
1.Mini dimension suits for small equipment
2.Manual override optional
3.High performance/price ratio
4.IP67 Enclosure
Applications:
1.Water treatment industry
2.HVAC
3.Cleaning equipment
4.Pharmaceutical equipment
5.Process control
1.Mini dimension suits for small equipment
2.Manual override optional
3.High performance/price ratio
4.IP67 Enclosure
Applications:
1.Water treatment industry
2.HVAC
3.Cleaning equipment
4.Pharmaceutical equipment
5.Process control
Specification
|
Max torque:
|
10N.m
|
Enclosure:
|
IP67
|
Medium:
|
Water, air, gas, etc
|
|
Operating time:
|
Less than 12s
|
Max pressure:
|
1.6Mpa
|
Life cycles:
|
80000times
|
|
Working voltage:
|
DC5V/12V/24V/9-35V/AC220V
|
Medium temp:
|
0-100C
|
Body material:
|
SS304 SS316
|
|
Threads:
|
BSP, NPT
|
Ambient temp:
|
-15-40C
|
Max power :
|
22W
|
|
WIRING
|
|
|
|
|
||||
|
CR01 2 wires
|
CR02 3 wires
|
CR03 3 wires
|
CR04 2 wires
|
CR05 5wires
|
||||
|
Standard control
|
Two point control
|
One point control
|
Auto return
|
Signal feedback
|
||||
Company Profie
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
