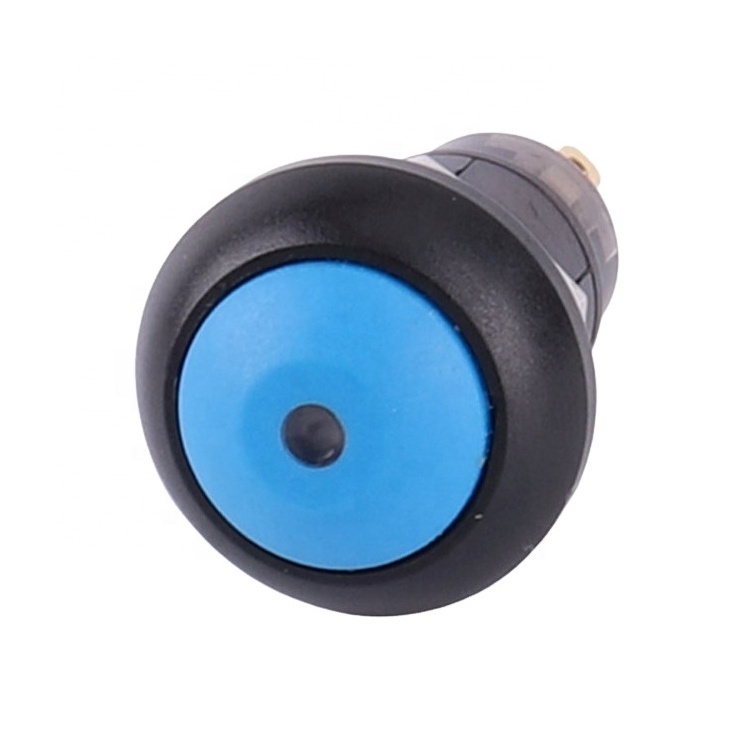

12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch

12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch

FOB Reference Price: Get Latest Price
≥20 Pieces
US $2.5
≥500 Pieces
US $1.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
VIGNUGGE
Model Number:
JDU12U-Q10Z-D-PC
Product name:
Push button switch
Mounting hole diameter:
12mm
Actuator shape:
dome head
Switch combination:
1NO
Operation type:
Latching
Material:
Plastic
Terminal:
Solder Terminal
Connector customization:
Acceptable
Sample order:
Available
Product type:
switch button

Quick Details

Protection Level:
IP67
Max. Current:
2A
Max. Voltage:
250VAC
Place of Origin:
Zhejiang, China
Brand Name:
VIGNUGGE
Model Number:
JDU12U-Q10Z-D-PC
Product name:
Push button switch
Mounting hole diameter:
12mm
Actuator shape:
dome head
Switch combination:
1NO
Operation type:
Latching
Material:
Plastic
Terminal:
Solder Terminal
Connector customization:
Acceptable
Sample order:
Available
Product type:
switch button
Products Description
12mm Mini LED Light Dot Plastic On Off Ball Head Push Button Latching Switch

Description:
Great for electron magnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls on over 500,000 cycles. High quality metal material & IP67 waterproof protection can be used in wet or dusty environment. Specification: Mounting Hole Size: Φ12mm Switch Rating: 2A Switch Combination : 1NO Operated function: Latching Head type: Dome head Enclosure Material: Plastic Degree of Protection: IP67 The Wire Connector: With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket Note: -These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater -The project you are going to be used for, don't let current go above 3 amps. Or the switch will get warm and to be burned out
Product Paramenters
Model Specification
Product Name
Push button switch
Mounting diameter
12mm
Head shape
Dome head
Switch Combination
1NO
Operation type
Latching
Rated Current
2A
Illuminating type
Dot
Housing color
black
voltage
250V
Shell material
plastic
Contact Resistance
50mΩ max
Insulation Resistance
1000MΩ Min
Dielectric Intensity
2000VAC
Accessories
Nut, Rubber Waterproof O-ring
Installation Instructions
Details Images
