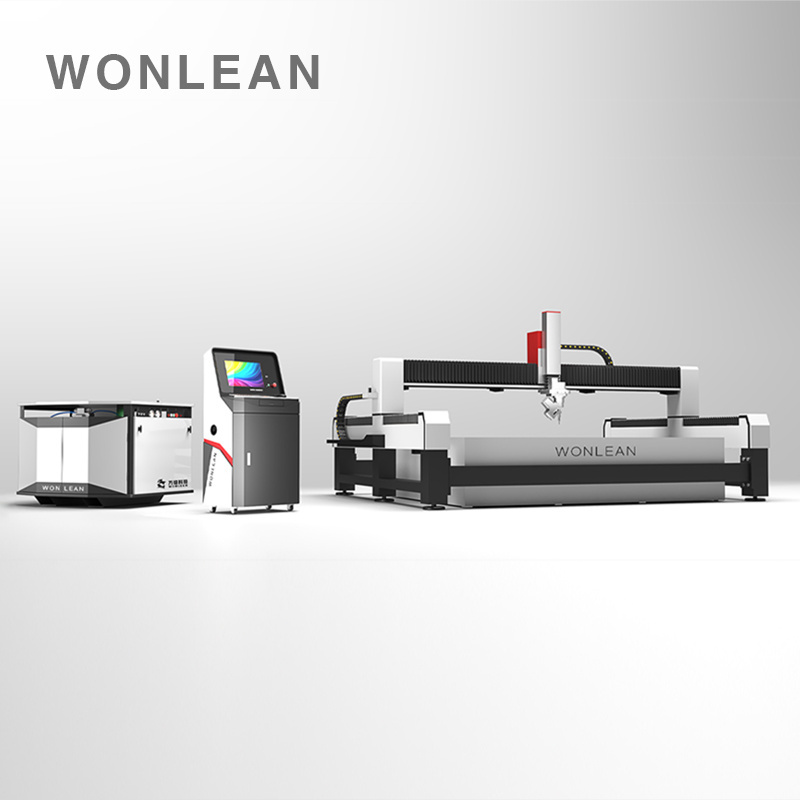

WONLEAN New Design Water Jet Cutter Cnc Water Jet Cutting Machine Cheap Price

WONLEAN New Design Water Jet Cutter Cnc Water Jet Cutting Machine Cheap Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $27000

≥2 Sets

US $26000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Table Travel (Y) (mm):: 1500

Table Travel (Z) (mm):: 150

Cutting Accuracy(mm):: 0.1

Brand Name:: Wonlean

Voltage:: 380MPA

Rated Power:: 30KW

Dimension(L*W*H):: 2000MM*1500MM

Weight (KG):: 5000 KG

Type:: Water Jet Cutters

Product name:: CNC Water Jet Cutting Machine

Structure:: Oil immersion

Machine Cover:: Stainless Steel

Intensifier:: ACCUSTREAM

Main Motor:: SIEMENS Motor

Rail Screw:: HIWIN

Servo Motor:: Yaskawa

Cutting accuracy:: ±0.1mm

Control system:: CNC Controller

Quick Details

Place of Origin:: Liaoning, China

Repeatability (X/Y/Z) (mm):: ±0.1

Table Travel (X) (mm):: 2000

Table Travel (Y) (mm):: 1500

Table Travel (Z) (mm):: 150

Cutting Accuracy(mm):: 0.1

Brand Name:: Wonlean

Voltage:: 380MPA

Rated Power:: 30KW

Dimension(L*W*H):: 2000MM*1500MM

Weight (KG):: 5000 KG

Type:: Water Jet Cutters

Product name:: CNC Water Jet Cutting Machine

Structure:: Oil immersion

Machine Cover:: Stainless Steel

Intensifier:: ACCUSTREAM

Main Motor:: SIEMENS Motor

Rail Screw:: HIWIN

Servo Motor:: Yaskawa

Cutting accuracy:: ±0.1mm

Control system:: CNC Controller

Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.

Product Description

15 Years Experience

CNC WATERJET

CUTTING MACHINE

✔ Support non-standard customization

✔ Provide free sample trial cutting service for you

ULTRA-HIGH-PRESSURE PUMP

Adopting the most advanced high-pressure technology and structure, unique double oil circuit design, reducing pressure fluctuation pulse, compared with the traditional

high-pressure pump at the same power, the cutting efficiency is increased by 20%,

which is the most advanced technology in the current liquid booster pump.

Intelligent recognition one-key processing

Actively identify CAD electronic drawings, intelligently automatically generate tool diameters to retrieve parameters, reduce manual coding and repeated operations, simple operation, and increase productivity.

15 years of practice creates classic

WONLEAN new generation water jet cutting machine

Intelligent lubrication system

Equipped with intelligent lubricating oil pump, the lubricating oil is delivered to every corner of the transmission system, with intermittent control of up to 0.01 seconds. At the same time of lubrication, the wear of the transmission system caused by waste sand can be avoided to a great extent.

High quality dust-proof folding cloth

XYZ axis adopts the fully sealed design of high-quality dust-proof folding cloth, which can be folded up to 100000 times and is durable.

Adaptive voltage stabilizing system

With pressure self-adaptive balancing device, it can greatly alleviate pressure pulse fluctuation, improve cutting efficiency, and mitigate impact wear of pressure pulse on cooling system.

Intelligent software compatibility

The software has a built-in rotating shaft control module, which does not need to borrow other transmission shaft data. No matter whether cutting plates or pipes, it does not need to switch data to start directly, which is convenient and fast.

Multi head cutting system

According to the cutting needs, it is equipped with a multi cutter head cutting scheme, which can complete the multi-channel cutting task at one time, greatly improving the cutting efficiency.

One stop tailored design

We have rich experience in material loading and unloading, moving and cutting operations, as well as the design of the whole production line. We can provide you with professional design schemes, eliminating the risk and trouble of different manufacturers' connection problems in all links, which is more reliable.

More economical high voltage system

We will design the most suitable nozzle diameter and required flow according to the cutting materials to realize the supply scheme of one pump with multiple cutter heads. The utility model solves the supply mode of one pump and one cutter head in the past, with less equipment investment and more energy saving.

High pressure system specifications
Model	WL30018Z	WL38030Z	WL42037Z
Max. Pressure	300Mpa	380Mpa	420Mpa
Continuous working pressure	260Mpa	340Mpa	380Mpa
Power	18KW	30KW	37KW
Maximum water flow	3.7L/min	3.7L/min	3.7L/min
Maximum nozzle diameter	0.33mm	0.33mm	0.33mm
Working power supply	380V/50HZ

Technical parameters of gantry cutting platform

Model

WL2015BA

WL2030BA

WL3020BA

WL2040BA

WL2060BA

WL3060BA

X axis

2000mm

3000mm

2000mm

3000mm

Y axis

1500mm

3000mm

2000mm

4000mm

6000mm

Z axis

150mm

Running speed

9000mm/min

Cutting accuracy

±0.1mm

control precision

±0.01mm

Repeat accuracy

±0.05mm

Product Advantages:

1.Cutting accuracy is up to 0.1mm.

2.The main core components of Intensifier is made in USA.

3.The guide screw with oil-immersed structure different from the traditional dry structure. The linear guide rail and ball screw are immersed in the oil tank ,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.

4.The high-power servo motor and the guide screw are connected directly by flexible coupling, which eliminates the gap of traditional belt connection and improves the cutting precision.
