Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOL
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.20mm
-
Min. Line Width:
-
3mi
-
Min. Line Spacing:
-
0.003"
-
Surface Finishing:
-
OSP
-
Product name:
-
led bulb driver pcb
-
Input Voltage:
-
AC90-120V
-
LED Chip:
-
10x30mil 2835
-
Material:
-
Aluminum PCB
-
Warranty:
-
3 Years
Quick Details
-
Base Material:
-
Aluminum Base
-
Board Thickness:
-
1.2mm
-
Model Number:
-
Customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOL
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.20mm
-
Min. Line Width:
-
3mi
-
Min. Line Spacing:
-
0.003"
-
Surface Finishing:
-
OSP
-
Product name:
-
led bulb driver pcb
-
Input Voltage:
-
AC90-120V
-
LED Chip:
-
10x30mil 2835
-
Material:
-
Aluminum PCB
-
Warranty:
-
3 Years

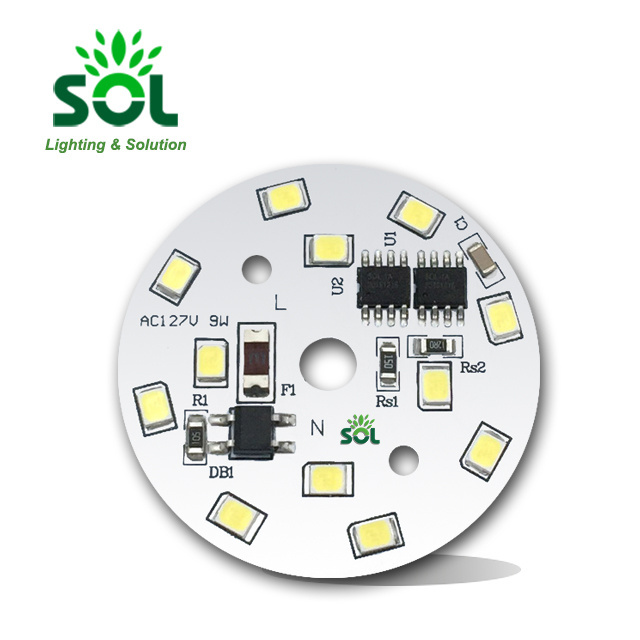

AC LED LIGHT ENGINE
AC LED LIGHT ENGINE ,also called AC MODULE and ac led module, integrate the driver components on the board together with led,No requirement of AC-DC converter. By simply design and reduces components count,it provide a lower cost for your new design or retrofit applications . Also the freedom of size and power make your design flexibility and fast, that keep you ahead of competition on the market.
Features of SOL AC LED Module
|
1.I ntegrated driver(direct to 110Vac/220Vac), high reliability,PF>0.95/no flicker 2. With OVP, OTP and OCP protection and 4KV surge protection, 3 .CE, RoHS certification, 4. CCT:2700K,3000K,4000K,5600K,6500K,CRI>80 or CRI>90 Options, 5. Long life:30,000 hrs,3 years warranty, 6.120 degree beam angle, 7. Dimmable optional(TRAIC,0-10V,PWA) 8. Sensor optional(motion sensor,PIR) 9.High efficiency,high lumen,85lm/W,,100lm/W,120lm/W 10.No UV or infrared Radiation, |
|
|
|
Country: |
India |
|
Products: |
Round AC Module |
|
|
Power: |
12W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1200lm Ra>80 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
D50mm |
|
|
Application: |
LED bulb lighting source |
|
|
Country: |
Iran |
|
Products: |
Linear AC Module |
|
|
Power: |
18W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1700lm Ra>80 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
L1160*W9.6mm |
|
|
Application: |
LED tube lighting source |
|
|
Country: |
USA |
|
Products: |
0-10V dimmable AC Module |
|
|
Power: |
20W |
|
|
Input Volate: |
90-130Vac |
|
|
Luminous Flux(CRI): |
1200lm Ra>90 |
|
|
Material: |
1.0mm thickness ALU |
|
|
Dimension: |
D118mm |
|
|
Application: |
American Lamp
|
|
|
Country: |
Croatia |
|
Products: |
AC Module with Magnet |
|
|
Power: |
15W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
1650lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
Outer D140mm Inner D88mm |
|
|
Application: |
Retrofit ceiling lamp |
|
|
Country: |
Germany |
|
Products: |
AC Module |
|
|
Power: |
3W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
400lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
286x28mm |
|
|
Application: |
Car decoration lamp |
|
|
Country: |
Brazil |
|
Products: |
AC COB |
|
|
Power: |
50W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
4000lm Ra>80 |
|
|
Material: |
1.2mm thickness alu |
|
|
Dimension: |
10080x65mm |
|
|
Application: |
Flood light |
|
|
Country: |
USA |
|
Products: |
AC Module |
|
|
Power: |
20W |
|
|
Input Volate: |
220-240Vac |
|
|
Luminous Flux(CRI): |
2000lm Ra>80 |
|
|
Material: |
1.0mm thickness alu |
|
|
Dimension: |
195x195mm |
|
|
Application: |
Retrofit light fixture |
