Quick Details
-
Voltage:
-
220V/380V/customized
-
Dimension(L*W*H):
-
130*53*105 cm
-
Motor Power (Kw):
-
3-30kw
-
Power (kW):
-
3-30kw
-
Weight (KG):
-
300 KG
-
Name:
-
Wood Pellet Machine
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Pellet size:
-
2-10mm
-
Application:
-
Make Biomass Pellets
-
Usage:
-
Biomass Energy Industry
-
Motor:
-
Electric motor, diesel engine, gasoline engine
-
Capacity:
-
100-3000kg/h
Quick Details
-
Pellet Diameter (mm):
-
2 - 10
-
Output (kg/h):
-
100 - 3000 kg/h
-
Place of Origin:
-
China
-
Voltage:
-
220V/380V/customized
-
Dimension(L*W*H):
-
130*53*105 cm
-
Motor Power (Kw):
-
3-30kw
-
Power (kW):
-
3-30kw
-
Weight (KG):
-
300 KG
-
Name:
-
Wood Pellet Machine
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Pellet size:
-
2-10mm
-
Application:
-
Make Biomass Pellets
-
Usage:
-
Biomass Energy Industry
-
Motor:
-
Electric motor, diesel engine, gasoline engine
-
Capacity:
-
100-3000kg/h
Product Description

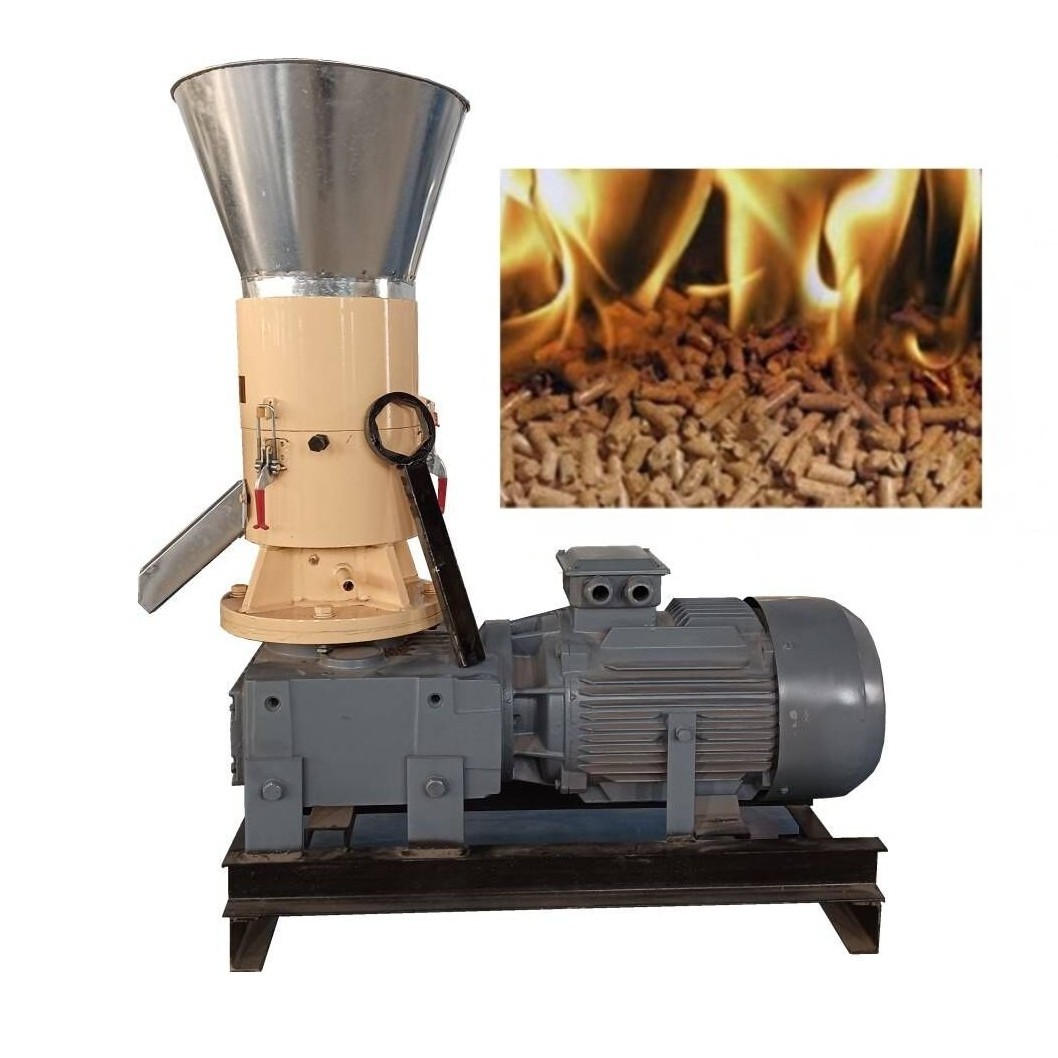

Wood Pellet Machine Biomass Fuel Wood Sawdust Straw Pellet Making Machine Granulator Production Line
Biomass energy pretreatment equipment. It mainly use biomass from agricultural and forestry processing such as wood
chips,straw, rice husk, bark and other biomass
as raw materials, and solidify it into high-density pellet fuel through pretreatment and processing.
|
Model
|
Capacity (kg/h)
|
Power (kw)
|
Weight(kg)
|
Dimension (mm)
|
|
WP-210
|
80-100
|
7.5
|
280
|
1100*400*980
|
|
WP-250
|
150-200
|
15
|
400
|
1120*440*1060
|
|
WP-300
|
200-300
|
22
|
800
|
1280*560*1220
|
|
WP-350
|
350-400
|
30
|
900
|
1300*530*1220
|
|
WP-400
|
400-600
|
37
|
1000
|
1390*650*1290
|
|
WP-450
|
650-800
|
45
|
1500
|
1620*700*1600
|
|
WP-550
|
1000-1500
|
55
|
1800
|
1700*700*1600
|
* Biomass pellet machine are divided into
flat die
biomass pellet machines and
ring die
biomass pellet machines.
* We produce biomass pellet making line machines such as
wood logs splitter, wood logs debarker, wood chipper, hammer mill, straw bale cutter, grass cutter, mixer, dryer and cooler, pellet machine and briquette machine, pellet packing machine and conveyors
etc. , for wood pellet mill details as below
Specification
|
Machine Feature
|
|
|
|
1
|
Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse.
|
|
|
2
|
The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC.
|
|
|
3
|
The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment，wear-resistance and longer lifespan.
|
|
|
4
|
The roller shaft is sealed on both sides,The sealing of spare parts is excellent.
|
|
|
5
|
The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.
|
|
|
6
|
The electric components adopt top brands in China to guarantee stable performance.
|
|
Product Application
* For feed stuff use:
The compressed piece is suitable to be used as fuels and feedstuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for farms, and organic herbal medicine and chemical industry etc.
* For wood pellets use:
This series flat die pellet presses can be used for producing wood pellets. Wood pellets are made of all kinds of wood sawdust and wood waste particle.
* For biomass pellets use
Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. Crushed agriculture waste including corn stalks, cotton stalks, wheat straw, rice husk, corn cob, groundnut shell,etc.
