Quick Details
-
Description:
-

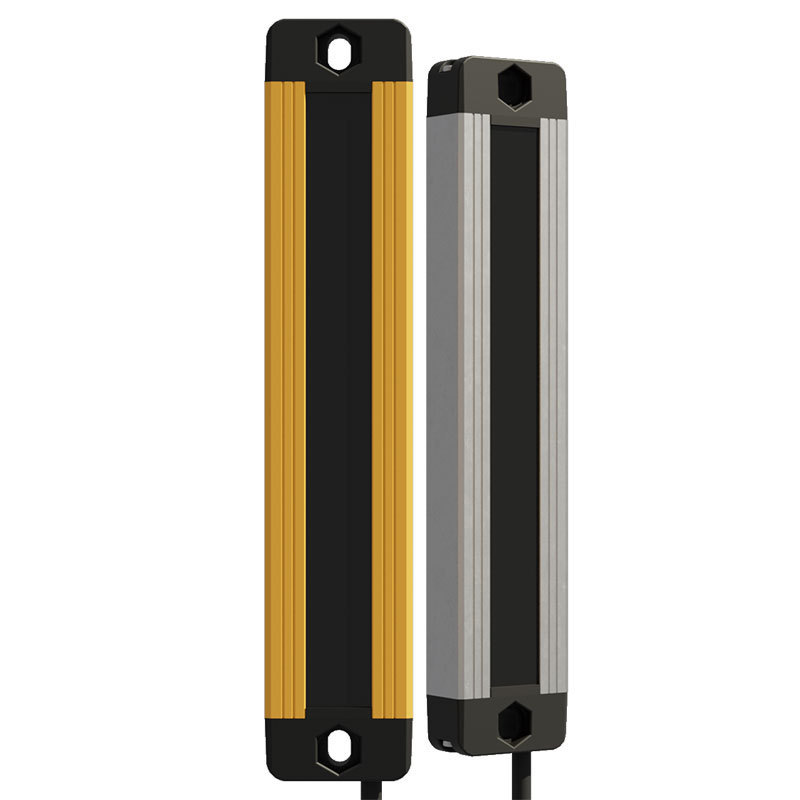

Machine safety protection, Safety light curtain sensors
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
FGM-CB
-
Type:
-
Infrared Safety Light Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUWEI
-
Theory:
-
Correlation infrared sensor
-
Output:
-
NPN/PNP
-
Power supply:
-
DC10-30V
-
Beam space:
-
10mm/20mm/40mm
-
Resolutin:
-
20mm/30mm/45mm
-
Sensing destance:
-
0.1~1.5m
-
Anti-optical interference:
-
10000 Lux(angle>5°)
-
Housing cross-section:
-
28*13mm
-
Enclosure rating:
-
IP65
-
Ambient operationg temperature:
-
-10°C-55C(with no freezing)
Quick Details
-
Use:
-
Machine safety protection
-
Series:
-
FGM-CB series
-
Mounting Type:
-
Side mounting screws
-
Description:
-
Machine safety protection, Safety light curtain sensors
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
FGM-CB
-
Type:
-
Infrared Safety Light Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUWEI
-
Theory:
-
Correlation infrared sensor
-
Output:
-
NPN/PNP
-
Power supply:
-
DC10-30V
-
Beam space:
-
10mm/20mm/40mm
-
Resolutin:
-
20mm/30mm/45mm
-
Sensing destance:
-
0.1~1.5m
-
Anti-optical interference:
-
10000 Lux(angle>5°)
-
Housing cross-section:
-
28*13mm
-
Enclosure rating:
-
IP65
-
Ambient operationg temperature:
-
-10°C-55C(with no freezing)
Product Description
Specifications
|
Product type
|
FGM-CB series
|
|
|
|
|
Power supply
|
DC10-30V
|
|
|
|
|
Capacity
|
<5W
|
|
|
|
|
Beam space
|
10mm/20mm/40mm
|
|
|
|
|
Resolutin
|
15mm/25mm/45mm
|
|
|
|
|
Beams
|
10mm Beam gap：8、12、16…128
20mm Beam gap：4、6、8…86 40mm Beam gap：4、6、8…32 |
|
|
|
|
Protective height
|
Protective height=(N-1)beamgap,N is beam quantity.
|
|
|
|
|
Wave length
|
940nm
|
|
|
|
|
Response time
|
Response time = N*0.1ms + 0.4ms (N is beam quantity)
|
|
|
|
|
Output Type
|
NPN/PNP semiconductors,current <200mA residual voltage:1V max
(Except voltage influenced by lengthen wire) leakage current:1mA max. |
|
|
|
|
Protective circuit
|
Overload voltage protection, power supply reverse polarity protection,
over current protection |
|
|
|
|
Sensing destance
|
0.1-0.5m,0.1-2m,0.1-4m (remark: if have light reflection, please let us know)
|
|
|
|
|
Anti-optical interference
|
10000 Lux(angle>5°)
|
|
|
|
|
Sensing method
|
Through-beam type
|
|
|
|
|
Synchonization
|
wire synchronization
|
|
|
|
|
Enclosure meterial
|
Aluminum alloy
|
|
|
|
|
Enclosure rating
|
IP65
|
|
|
|
|
Housing cross-section
|
28*13mm
|
|
|
|
|
Ambient operationg temperature
|
-10°C-55C(with no freezing)
|
|
|
|
|
Storagetemperature
|
30°C~70°C(with nofreezing)
|
|
|
|
|
Ambient operating humidity
|
when temperature is 20°C, humidity max 85%
|
|
|
|
Company Introduction
Guangzhou Fuwei Electronic Technology Co., Ltd. is a comprehensive high-tech enterprise integrating product solutions and services in three business areas of industrial sensors, machine vision systems and automation equipment, and is an excellent domestic supplier of industrial automation products.
The company has been committed to providing customers with "product detection, positioning, counting, color and barcode recognition, OCR character recognition, quality detection, contour detection, dimension measurement, robot guidance, weld detection" .
And provide complete industrial automation product solutions. The product range is complete, mainly including laser displacement sensor, spectral confocal displacement sensor, ranging sensor, optical fiber, photoelectric sensor, proximity sensor, light curtain sensor, 2D/3D machine vision sensor, intelligent code reader and a variety of visual detection equipment. At present, the products have been widely used in tobacco, textile, automobile, packaging, elevator, 3C electronics, robot, warehousing logistics, engineering machinery, energy control, metal processing, automation equipment, rail transit, CNC machine tools and other industries.
Package
Transport
FAQ
1. Who are we?
We are based in Guangdong, China, Guangzhou Fuwei Electronic Technology Co., Ltd. is a comprehensive high-tech enterprise integrating product solutions and services in three business areas of industrial sensors, machine vision systems and automation equipment, and is an excellent domestic supplier of industrial automation products.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Measurement sensors, laser sensors, photoelectric sensors, color sensors, label sensors, fiber optic sensors, light curtain sensors, pipeline liquid level sensors, proximity sensors, capacitive sensors
4. Why should you buy from us not from other suppliers?
Guangzhou Fuwei Electronic Technology Co., Ltd. is located in Guangzhou, a famous historical and cultural city in Guangdong Province, China. The production base is located in Guangzhou, Guangdong Province.More than 20 years of focus on sensor manufacturing, professional research and development of quality products to make you more assured.
5. What services can we provide?
Accepted Delivery Terms: EXW,FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
