Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHIKY
-
Weight (KG):
-
25 KG
-
Product name:
-
Fiber Laser Marking Machine
-
Laser Power:
-
20W/30W
-
Applicable Material:
-
Iron, copper, aluminum, gold, silver,ABS, PVC
-
Keywords:
-
Fiber Laser Marking Machine
-
Function:
-
Laser Marking Machine
-
Marking Speed:
-
≤10000mm/s
-
Working area:
-
150mm*150mm
-
Cooling system:
-
Air Cooling
-
Support Format:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Operating System:
-
Windows operating system
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHIKY
-
Weight (KG):
-
25 KG
-
Product name:
-
Fiber Laser Marking Machine
-
Laser Power:
-
20W/30W
-
Applicable Material:
-
Iron, copper, aluminum, gold, silver,ABS, PVC
-
Keywords:
-
Fiber Laser Marking Machine
-
Function:
-
Laser Marking Machine
-
Marking Speed:
-
≤10000mm/s
-
Working area:
-
150mm*150mm
-
Cooling system:
-
Air Cooling
-
Support Format:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Operating System:
-
Windows operating system
Product Overview
Intelligent F
iber Laser Marking Machine

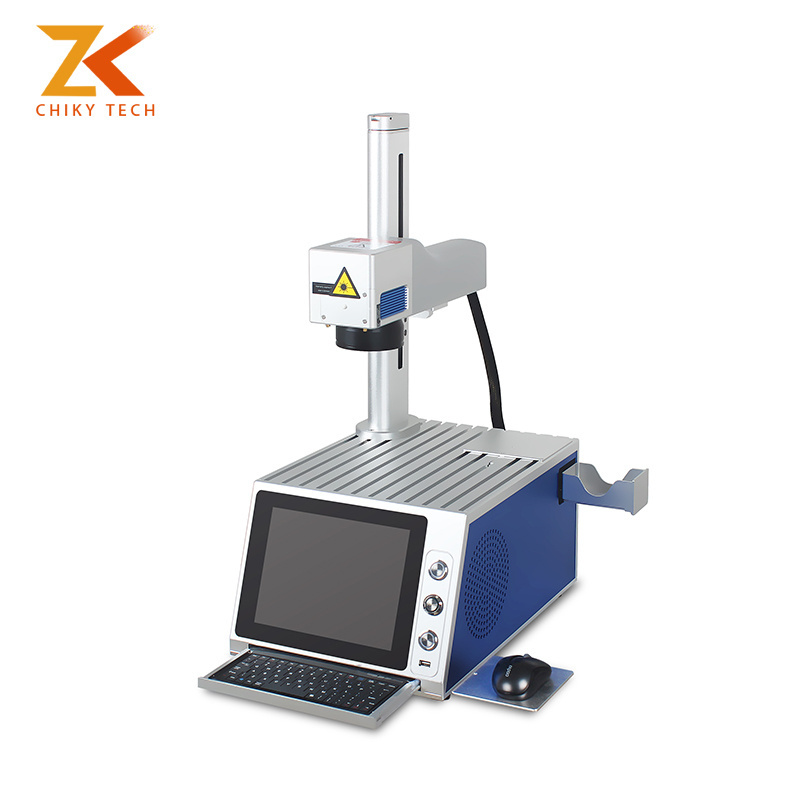

The ZK-M20B series intelligent laser marking machine belongs to the desktop fiber laser marking equipment. It is a special model specially developed by Mac Laser for the needs of simple, compact, flexible and convenient equipment. The equipment is extremely cost-effective, It adopts high-quality fiber laser source, high-stability galvanometer system, hidden keyboard and mouse design, it can easily meet most common laser marking applications.
The ZK-M20B series products use a 1064nm wavelength fiber laser source, which is suitable for various metal materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS, PVC, and PC+ABS.
FRONT
SIDE
PORTABLE CASE
PRODUCT SPECIFICATIONS
|
Model
|
|
ZK-M20B
|
ZK-M30B
|
|
|
Laser parameter
|
Output power
|
20W
|
30W
|
|
|
|
Beam quality M ²
|
≤1.4
|
|
|
|
|
Pulse repetitionrate frequency
|
27-60kHz
|
|
|
|
|
Laser wavelength
|
1064 ±5
|
|
|
|
|
Output power stability
|
＜3%
|
|
|
|
Optical properties
|
Marking range
|
100~150mm (range optional)
|
|
|
|
|
Engraving depth
|
≤1mm (depending on power and time)
|
|
|
|
|
Engraving speed
|
≤10000mm/s
|
|
|
|
|
Repeatability
|
±0.002
|
|
|
|
|
Minimum marker line width
|
0.1mm
|
|
|
|
|
Minimum character height
|
0.15mm
|
|
|
|
Use environment
|
Battery life/Working life
|
About 100,000 working hours (non-lifetime)
|
|
|
|
|
Cooling method
|
Built-in aircooling
|
|
|
|
|
Power supply to the system
|
500W / 220V / 50Hz (110V can be connected)
|
|
|
|
Other parameters
|
Operating System
|
Windows operating system
|
|
|
|
|
File format
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
|
|
|
Dimensions
|
390X210X615 mm
|
|
|
|
|
Total weight
|
Total weight is about 25kg.
|
|
|
