Quick Details
-
Model Number:
-
R7 R8
-
Size:
-
1/8" ~ 2"
-
Inner Tube:
-
oil resistant seamless thermoplastic elastomer tube.
-
Reinforcement:
-
braided high tensile synthetic fiber, steel wire braid,
-
Cover:
-
Oil and weather resistant high abrasion resistant polyurethane.
-
Working temperature:
-
-40C ~ +10C (-40F~ +212 F)
-
Working pressure:
-
1.5-53Mpa
-
Min burst pressure:
-
4.5-180Mpa
-
Min bending radius:
-
55-500mm
-
Application Field:
-
Agriculture, Horticulture, Chemical and gas transfer, Forklifts,etc
-
Main Applications:
-
exceeds all SAE 100R7 R8 requirements.
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Henghua
-
Model Number:
-
R7 R8
-
Size:
-
1/8" ~ 2"
-
Inner Tube:
-
oil resistant seamless thermoplastic elastomer tube.
-
Reinforcement:
-
braided high tensile synthetic fiber, steel wire braid,
-
Cover:
-
Oil and weather resistant high abrasion resistant polyurethane.
-
Working temperature:
-
-40C ~ +10C (-40F~ +212 F)
-
Working pressure:
-
1.5-53Mpa
-
Min burst pressure:
-
4.5-180Mpa
-
Min bending radius:
-
55-500mm
-
Application Field:
-
Agriculture, Horticulture, Chemical and gas transfer, Forklifts,etc
-
Main Applications:
-
exceeds all SAE 100R7 R8 requirements.
Henghua Hydraulic offers a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries.
Our hydraulic hose range includes 1SC, 2SC, 100 R1-R17, 4SP, 4SH ,1SN,2SN,1-3TE& suction & delivery hose, along with compatible hose inserts and ferrules.
If you’re not sure what type of hose you should be using for your application, please get in touch and we will provide you with the correct hose for the job!
We don’t only supply loose hose and hose fittings we can also make bespoke hose assemblies to your given specification, get in touch with our friendly sales team to discuss your hose assembly needs today.

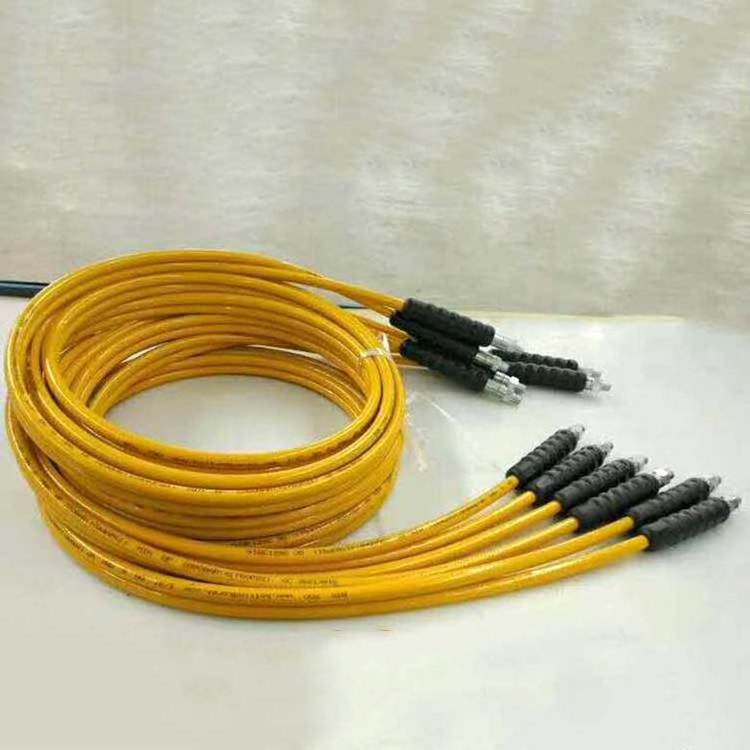

Thermoplastic offers various benefits over its rubber counterpart. Not only does it last longer, but it also often comes at a lower cost to you. Because of this, thermoplastic is quickly becoming the preferred material for OEM hydraulic equipment manufacturers who fabricate agricultural machinery, construction machinery, thermoplastic lubrication lines and industrial and material handling equipment. Our thermoplastics are manufactured using all raw material- never regrind. This results in a strong hose that is more resistant to pin hole leaks and other failure.
| Name | Thermoplastic Hydraulic Hose |
| Size | 1/8" ~ 2" |
| Inner Tube | oil resistant seamless thermoplastic elastomer tube. |
| Reinforcement | braided high tensile synthetic fiber, steel wire braid, or according to customer's requirement (one-two synthetic braid) |
| Cover | Oil and weather resistant high abrasion resistant polyurethane. |
| Working temperature | -40ºC ~ +100ºC (-40ºF~ +212 ºF) |
| Working pressure | 1.5-53Mpa |
| Min burst pressure | 4.5-180Mpa |
| Min bending radius | 55-500mm |
| Material | PA11 PA12 Pu |
| Color | Black/Red/Blue/Yellow/Gray/Green |
| Application | The hydraulic suction hose is designed with a hard outer cover, and it can be used for hydraulic fluid (except ester-based oil) suction and conveying. |
| The hydraulic suction hose is frequently applied to suction & discharge, anti-static delivery hydraulic line, and vacuum applications for petroleum-based and water-based hydraulic fluids. | |
| Certification | SGS, CE and ISO approved |
| Customized | OEM/ODM |
| Packaging Detail | By weaving belt or as your request. |
| Delivery | About 15 days for a 20' container. |
Main Applications:
>> Medium pressure hydraulic application that requires high flexibility, tight bend radius and good abrasion resistance to weather and ozone.
>> This hose is dual branded – meets or exceeds all SAE 100R7 requirements.
>> Non-conductive hose available.
>> Agriculture, Horticulture, Chemical and gas transfer, Forestry delimber, Forklifts, Freezer applications, General construction, General hydraulics, Machine tools and robotics, Portable hydraulics tools
Features:
* Extremely durable.
* Good kink resistance.
* Lightweight-less than about half that of comparable rubber/wire hose.
* Meets or exceeds SAE 100R8 impulse requirements at half of SAE recommended bend radius.
* Will not swell or degrade in contact with most hydraulic fluids or oils.
* Highly abrasion resistant.
* Inner tube will not chip or peel in service, eliminating the possibility of system contamination.
* Linear change ±3% under typical operating pressure.
| Hydraulic Hose | Reinforcement | Product Name |
| One steel wire braided | SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | |
| Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | |
| One/two wire braided | SAE R16 | |
| Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | |
| High flexibility nylon or thermoplastic | SAE R7,SAE R8 | |
| Industrial Hose | Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose | |
| Product Name | Chief Introduction |
| Air Hose | High strength synthetic yarn reinforced |
| Water Hose | High strength synthetic yarn reinforced |
| Oil Hose | Single/double synthetic yarn braided or spiraled |
| Welding Hose | High strength synthetic cord reinforced |
| Gas Hose(LPG Hose) | High tensile synthetic yarn braided or spiraled |
| Heat Resistent Hose | 1 or 2 piles of fiber braid reinforcement |
| Air Condition Hose(Freon Hose) | Strengthen lining is weaving fiber |
FAQ:
1.What hose do you provide?
HENGHUA pipeindustry company offer hundreds of products. Main hose products:
high pressure steel wire braided hose,
high pressure steel wire spiral rubber hose,
steel wire winding hose,
flame retardant,resistance to high temperature and high pressure drilling hose
assembly,marine high pressure oil hose,
expansion pipe,
metal hose,
rollers,
rubber seals,etc
2.What are the product applications?
Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage / gas discharge / warm air duct
3.What are your advantages?
High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification, ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification,mining products safety sign,etc.
Products are sold well all over the country, and exported to India,British,Russia,Turkey,Germany, the United States and other countries,favored by the users.
