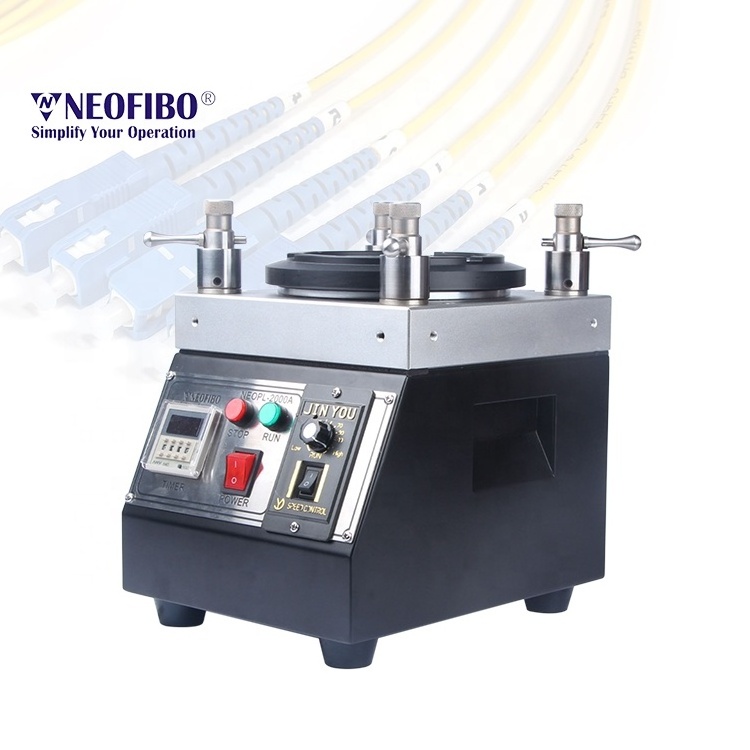

Neofibo NEOPL-2000A automatic bare fiber patch cord connector fiber jumper foursquare fiber optic polishing machine

Neofibo NEOPL-2000A automatic bare fiber patch cord connector fiber jumper foursquare fiber optic polishing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Neofibo

Use:: Fiber Polishing Machine

Warranty Time:: 1 year

Pressure Way:: 4 coil spring

Rotation Speed:: 0 ~ 220 rpm

Height of Plate Jumpiness:: <10 um

Polishing Cycle:: 2.5mins

Relative Humidity:: 15%~85%

Electric Power:: 40 W

Model:: Polishing plate size

Work Temperature:: 10 ~ 40 Celsius degrees

Machine Type:: fiber optic polishing machine

Certification:: ce

Quick Details

Type:: Fiber Optic Production Machine

Model Number:: NEOPL-2000A

Place of Origin:: Guangdong, China

Brand Name:: Neofibo

Use:: Fiber Polishing Machine

Warranty Time:: 1 year

Pressure Way:: 4 coil spring

Rotation Speed:: 0 ~ 220 rpm

Height of Plate Jumpiness:: <10 um

Polishing Cycle:: 2.5mins

Relative Humidity:: 15%~85%

Electric Power:: 40 W

Model:: Polishing plate size

Work Temperature:: 10 ~ 40 Celsius degrees

Machine Type:: fiber optic polishing machine

Certification:: ce

Neofibo NEOPL-2000A automatic bare fiber patch cord connector fiber jumper foursquare fiber optic polishing machine

Single Core Patch Cord Polishing Solution

Neofibo : Your Reliable Supplier

① Can provide you with reliable polishing solution；

② 1 6-year Manufacturing Experience for OEM/ODM polishing program；

③ Independent research and development patent - Neoholder® ；

④ Products have CE, ROHS certification；

⑤ Support online video synchronization inspection machine；

⑥ Equipment test report and operation guide can be provided；

⑦ SGS certified factory, delivery speed and secure, 50 units in stock ；

⑧ 30 days quality problems can be returned；

⑨ Free polishing film sample;

Get a free Quotation via Us >>>GO

Products Description

Description：

>Neofibo CE certified products

>pressure column pressure is applied to the four-square of a square grinding disc;

>Double motor drive,6075B/3010B optional; >The diameter of the polishing pad and the polishing sheet is 127mm

>It can polish up to 32-52 connectors;

>Applicable to the end face polishing of UPC&APC of various connectors;

>Polishing the fiber end face and 3D data service IEC standard, the effect is better with our company's polishing fixture;

>Suitable for grinding non-standard ferrules of various Rosa/Bosa/Tosa/Stub pigtails;
>Provide non-standard ferrule grinding design and customized services.

> This polishing machine can be customized according to your needs.

Get a free Quotation via Us >>>GO

Application

> Mainly used for polishing fiber optic connector, patch cord, ferrule end face;

> Or non-standard materials like metal, glass, ceramic end face polishing;

> Or precision parts end face polishing.

Get a free Quotation via Us >>>GO

Polishing Effect

Geometry Test Result:

NO.	Parameters	UPC Criterion	APC Criterion
1	Radius of Curvature	5-25mm	5-12mm
2	Apex Offset	0-50μm	0-50μm
3	Fiber Height	-100~+50μm	-100~+50μm
4	Angle	n/a	8.00+/-0.50°

ILRL Test Result:

Connector Type	SM/UPC	SM/APC	MM/UPC
Insertion Loss	≤0.30dB	≤0.30dB	≤0.50dB
Return loss	≥55dB	≥60dB	≥30dB

If you are patch cord manufacturer, your criterion could be stricter than the list above.

End-face Quality:

Polishing Process	4 Process
Return Loss	≥50dB
Top Curvatrue	10~25mm
Top Excursion	≤50μm
Core Hollow	≤0.1μm
Surface Roughness	≤50nm

Get a free Quotation via Us >>>GO

Recommend Products

About Us

Shenzhen Neofibo Technology Limited

Shenzhen Neofibo Technology Limited was founded in 2008, located in Shenzhen China. During the last 16 years, Neofibo has dedicated itself to becoming a professional supplier of fiber optic polishing solutions. Neofibo focuses on the field of fiber optic polishing solutions, specializes in manufacturing fiber optic polishing machines, designs various optical fiber connector polishing fixtures, and provides completed polishing processes and materials for all kinds of fiber optic connectors and related fiber products. Neofibo should be your cooperative partner forever.

FAQ

1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 polishing machine ?

Yes, we confirm that it works perfect with the Seikoh Giken 550.

2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.

3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.

4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.

5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;

6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
