Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USB3MP01H-L37
-
Video Compression Format:
-
H.264 / YUY2/ MJPEG
-
Data Storage Options:
-
PC
-
sensor:
-
AR0331
-
Picture format:
-
H.264, Mjpeg, YUY2
-
lens:
-
Standard 3.7mm, 2.9mm or other lens optional
-
Max resolution:
-
2048 (H) x 1536 (V) pixels Mjpeg
-
size:
-
38x38mm
-
system:
-
WinXP/Vista/WIN7/WIN8/Linux with UVC//Android 4.0 or above
-
audio:
-
with microphone
-
Driver:
-
Free driver
-
OTG:
-
USB2.0 PTG
-
USB cable:
-
1m (2m, 3 m, 5m optional)
Quick Details
-
Special Features:
-
Wide dynamic Range (WDR)
-
Function:
-
WDR, H.264 on board compression, With Built-in Microphone
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USB3MP01H-L37
-
Video Compression Format:
-
H.264 / YUY2/ MJPEG
-
Data Storage Options:
-
PC
-
sensor:
-
AR0331
-
Picture format:
-
H.264, Mjpeg, YUY2
-
lens:
-
Standard 3.7mm, 2.9mm or other lens optional
-
Max resolution:
-
2048 (H) x 1536 (V) pixels Mjpeg
-
size:
-
38x38mm
-
system:
-
WinXP/Vista/WIN7/WIN8/Linux with UVC//Android 4.0 or above
-
audio:
-
with microphone
-
Driver:
-
Free driver
-
OTG:
-
USB2.0 PTG
-
USB cable:
-
1m (2m, 3 m, 5m optional)
ELP Professional 3.0 megapixel 1080P full HD 30fps WDR USB Mini ATM Camera with AR0331 Sensor, Dynamic range up to 100dB
* 3MP WDR USB Camera module with 3.7mm pinhole lens
* 1/3” Aptina AR0331 sensor for high quality image
* Dynamic Range up to 100 dB
* With HD 3.7mm Pinhole M12 lens
* With microphone for audio recording
* Support IR CUT & IR LED for no color distortion image day & night
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Specification:
|
Model |
ELP-USB3MP01H-L37 |
|
Sensor |
AR0331 |
|
Lens Size |
1/3 inch |
|
Pixel Size |
2.2um X 2.2um |
|
Max. Resolution |
1920(H)X1080V) |
|
Compression format |
H.264/ MJPEG / YUV2(YUYV) |
|
Resolution & frame |
H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps |
|
S/N Ratio |
39dB |
|
Dynamic Range |
Up to 100dB |
|
Sensitivity |
2.0 V/lux-sec |
|
Mini illumination |
0.05ux |
|
Shutter Type |
ERS and GRP |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
Standard HOV 180 degree, optional 2.1/2.5/2.8/3.6/6mm |
|
Digital audio |
High quality digital MIC, support single, dual channel |
|
IR Cut connector |
Support 2P-1.25mm socket |
|
LED board connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm |
|
Power supply |
DC5V |
|
Operating Voltage |
130mA~190mA |
|
Working current |
-10~70℃ |
|
Working temperature |
-20~85℃ |
|
Board size /Weight |
38x38mm / about 30g |
|
Cable |
Standard 1M/ optional 2m/3m/5m |
|
Operating system request |
Win XP/Vista/Win7/Win8/win 10 Linux with UVC(above linux-2.6.26) Android 4.0 or above with UVC |
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

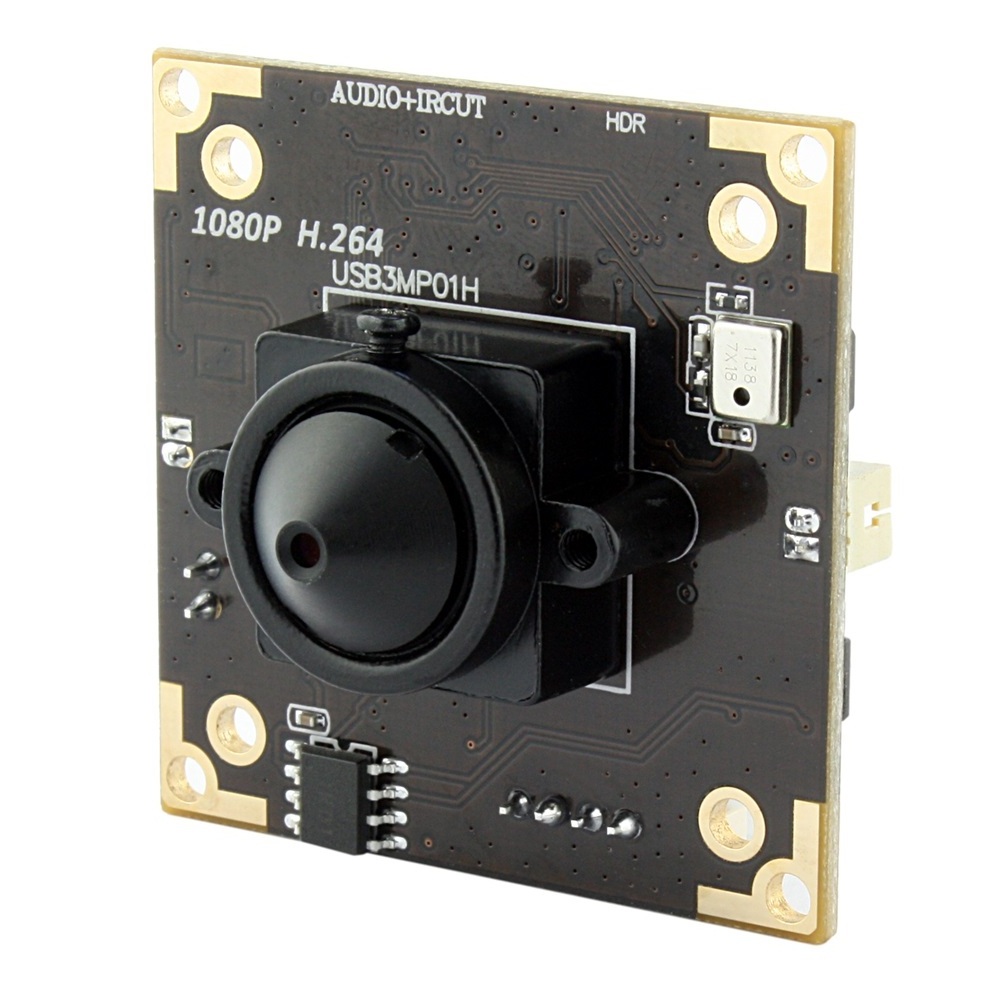

Product display :
Effect pictures:
