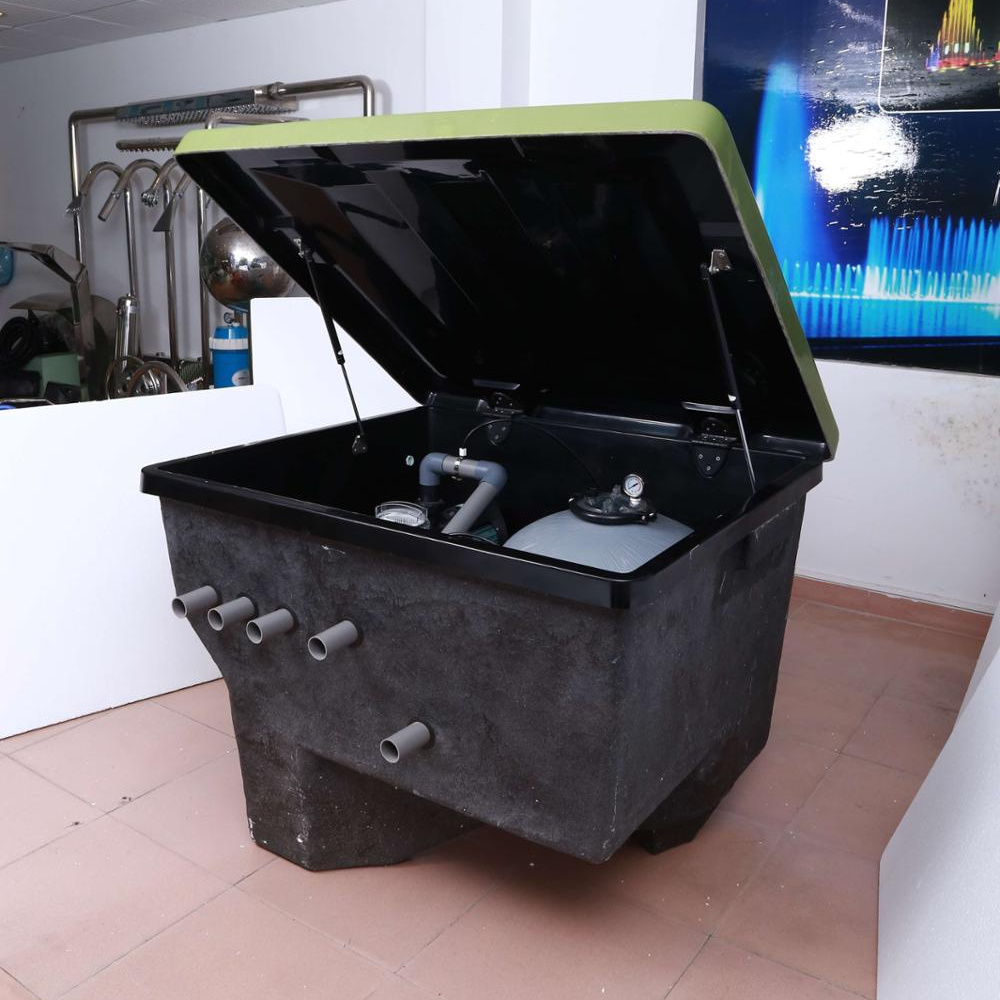

Pipeless Integration filter system, swimming pool filter cartridge

Pipeless Integration filter system, swimming pool filter cartridge

1. Integration filters technical data

Item	FN-03
Power	2 HP                      3HP
Flow rate	25  m 3 /h               35 m 3 /h
Voltage	220 V     50 Hz
Operation Noise	≤50 Db
Filter medium	Filter bag
Disinfection	Sterilizer
Ozone	500 mg
Efficiency	≤5 μ
External controller	With time
Enclosure	Lucite Acrylic
Installation	Wall mounting
Dimension	1120*690*1100 mm

2. Integration swimming pool filter cartridge features:

Integrative filter system represents the latest filter technology in the swimming pool industry, Which changes the traditional sand filter system, no need the engine room, the pipe line, easy to install, with convenient operation, high filter precision and low over head charge. It's the best choice for the swimming pool in office and the villa.

3. A revolution for pool filter

1.No pipes, No Backwashinp, No Hassle

With the pipeless filter pool, the days of endless backwashing and filter-cleaning maintenance are over. Inspired by outboard boat motors, the exclusive pipeless filtration system has a completely pipeless design, eliminating costly buried pipe-laying work and reducing the risk of leaks.

2.Integrated Filtration

This all-in-one solution can be installed into the pool structure and gives you additional options like lights, heating, therapeutic bubble jets and even crosscurrent for in-place lap swimming. With several color options your filter becomes an integral part of the pool design.

3.Surface Mounted Filtration
Our low-profile filtration system eliminates the eyesore and noise of old-school pool filters – and provides superior water quality with less energy usage.

4. Advantages of integrative c irculatory filter:

1).Simple maintenance

Renewed water in 2 hours, compared with 6 in a conventional system

Patented filter bags screen 6, 15 or 30 microns

Easy to maintain and service

Built-in spotlight

Simple winterization procedure

2).Save water & energy

No backwashing, so no wastewater disposal into the environment

No pipes = no underground pipe leaks

No pipes = little to no pressure head loss and reduced electricity consumption

Reduced filtration time = reduced system runtime = energy savings

3).Creative options

Heating

Counter-current swimming

Electrolysis to eliminate chlorine use

Integrate the filter into the deck for a lower profile

5.Details of the integration filter
The compartments of the unit it is equipped with A grade handpicked Polyvinyl Chloride. One-time plastic injection moulded technique & craftsmanship, which made it of novel appearance, super powerful technics and humanized designs. It also combined with filter, handrail, underwater light more functions together, even equipped with 11W constant thermal heater, It is much better to be assembled in the swimming pools of villas to show you the joy around the whole year.

6.FN-series integrative swimming pool water system

7.Packaging & Shipping

1.Packaging:

Small size filter is packaged to carton, large size is to wooden frame, or customized.

Wooden frame

Poly-wood

2.Delivery day:

within 3-15 days after you confirm the order, according to your order quantity

3. Shipping:

By logistics

By sea

By air

By express

8 . Our services

1).Patience pre-sale and after-sale service

2).We can provide design, drawing, budget, maintance advice, ect.

3).Tell us your pool  specification, we will provide you a best proposal

4).Accept OEM / ODM

5).Payment: T/T , Western Union or other terms available
