Quick Details
-
Rated current:
-
15A
-
Rated voltage:
-
600V
-
Screw sizeScrew size:
-
M3
-
package:
-
100Pcs/Box
-
Metal Material:
-
Iron / brass
-
Conductor plating (brass):
-
Nickel plated brass
-
Conductor plating (iron):
-
Galvanized iron
-
Weight:
-
1Box/1.53Kg
-
Screw plating:
-
White zinc / color zinc
-
Poles:
-
3p
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHFRPU
-
Model Number:
-
TB 1503
-
Rated current:
-
15A
-
Rated voltage:
-
600V
-
Screw sizeScrew size:
-
M3
-
package:
-
100Pcs/Box
-
Metal Material:
-
Iron / brass
-
Conductor plating (brass):
-
Nickel plated brass
-
Conductor plating (iron):
-
Galvanized iron
-
Weight:
-
1Box/1.53Kg
-
Screw plating:
-
White zinc / color zinc
-
Poles:
-
3p

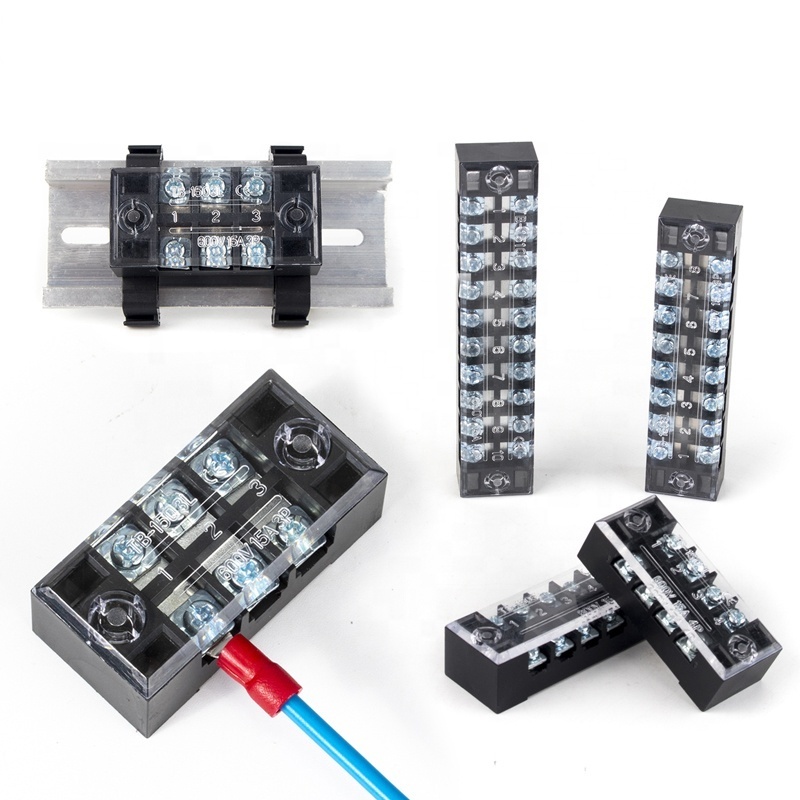

15A 3P 600V double row screw 20-16 AWG Brass conductor terminal TB1503 fixed type terminal blocks
Product Description
| Manufacturer | CHFRPU TERMINAL BLOCK CO., LTD |
| Model Number | TB 1503 |
| Type | Screw Terminal |
| Length/Height/Wide(mm) | 45.6/22/17 |
| Rated current | 15A |
| Rated voltage | 600V |
| Conductor Size | 20-16 AWG |
| package | 100Pcs/Box |
| Metal Material | Iron / brass |
| Screw size | M3 |
|
Model
|
Applicable cable
(mm²) |
Rated current
|
Rated voltage
|
Size(mm)
|
Screws
|
|||||
|
L
|
H
|
W
|
D
|
S
|
d
|
|||||
|
TB1503
|
0.5-1.5
|
15A
|
600V
|
45.6
|
17
|
22
|
35
|
7.4
|
9
|
M3
|
|
TB1504
|
54.2
|
17
|
22
|
44
|
||||||
|
TB1505
|
63.0
|
17
|
22
|
52.4
|
||||||
|
TB1506
|
72.2
|
17
|
22
|
61.3
|
||||||
|
TB1508
|
90.1
|
17
|
22
|
79.4
|
||||||
|
TB1510
|
107.2
|
17
|
22
|
96.2
|
||||||
|
TB1512
|
125.2
|
17
|
22
|
114.5
|
||||||
|
TB2503
|
0.5-2.5
|
25A
|
600V
|
55.1
|
19.2
|
30
|
44.2
|
10.3
|
12
|
M4
|
|
TB2504
|
67.2
|
19.2
|
30
|
55.8
|
||||||
|
TB2505
|
79.1
|
19.2
|
30
|
67.6
|
||||||
|
TB2506
|
91.0
|
19.2
|
30
|
79.8
|
||||||
|
TB2508
|
115.1
|
19.2
|
30
|
103.7
|
||||||
|
TB2510
|
139.2
|
19.2
|
30
|
127.6
|
||||||
|
TB2512
|
162.6
|
19.2
|
30
|
151.1
|
||||||
|
TB4503
|
0.5-4.0
|
45A
|
600V
|
69.4
|
23.5
|
37.6
|
58.6
|
15.1
|
16.6
|
M5
|
|
TB4504
|
86.1
|
23.5
|
37.6
|
75.4
|
||||||
|
TB4505
|
102.6
|
23.5
|
37.6
|
91.7
|
||||||
|
TB4506
|
119.2
|
23.5
|
37.6
|
108.3
|
||||||
|
TB4510
|
186.0
|
23.5
|
37.6
|
175.1
|
||||||
|
TB4512
|
219.2
|
23.5
|
37.6
|
286.6
|
||||||
FAQ
| FAQ: |
| 1.Are you factory ortrading company? |
| Yes,we are manuafacturing in zhejiang,China. We can give you the competitive price & after sale service. |
| 2.Could I print my own logo on the bag? |
| Yes,your logo can be pinted as your demand. we ofter OEM serice. |
| 3.What terms of payment & price condition & do you acept & use? |
|
Paymen terms:T/T,.LC,Papal,Western unon.etc.
Price condition:FOB(Shanghai & Ningbo).EXW,C&F etc. |
| 4.What money do you accept for wire transfer? |
| USD,CNY/RMB,EURO etc. |
| 5. How many days will it take to delivery the goods? |
| It denpends on your order quantity,small quantity will delivery the goods in 7-10days, if your order is big enough,it make take 10~15 days. |
