Quick Details
-
Max. Loading Capacity:
-
50L
-
Weight (KG):
-
11.5 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haocheng
-
Voltage:
-
220V/110V, 220V/110V
-
Dimension(L*W*H):
-
69*39*20
-
Power (kW):
-
0.1 kW
-
Product name:
-
Laboratory high speed motor 50L overhead stirrer mixing
-
Motor Power:
-
100w
-
Motor Type:
-
Brushless DV Moter
-
Stirring Volume(water):
-
50L
-
Stir Speed Range:
-
60-1500RPM
-
Digital Display:
-
LCD
-
Stir Rod Material:
-
SS 304
-
Holder Length:
-
700mm
-
Warrenty:
-
2 years
Quick Details
-
Barrel Volume (L):
-
50 L
-
Max. Loading Volume (L):
-
50 L
-
Range of Spindle Speed(r.p.m):
-
60 - 1500 r.p.m
-
Max. Loading Capacity:
-
50L
-
Weight (KG):
-
11.5 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haocheng
-
Voltage:
-
220V/110V, 220V/110V
-
Dimension(L*W*H):
-
69*39*20
-
Power (kW):
-
0.1 kW
-
Product name:
-
Laboratory high speed motor 50L overhead stirrer mixing
-
Motor Power:
-
100w
-
Motor Type:
-
Brushless DV Moter
-
Stirring Volume(water):
-
50L
-
Stir Speed Range:
-
60-1500RPM
-
Digital Display:
-
LCD
-
Stir Rod Material:
-
SS 304
-
Holder Length:
-
700mm
-
Warrenty:
-
2 years

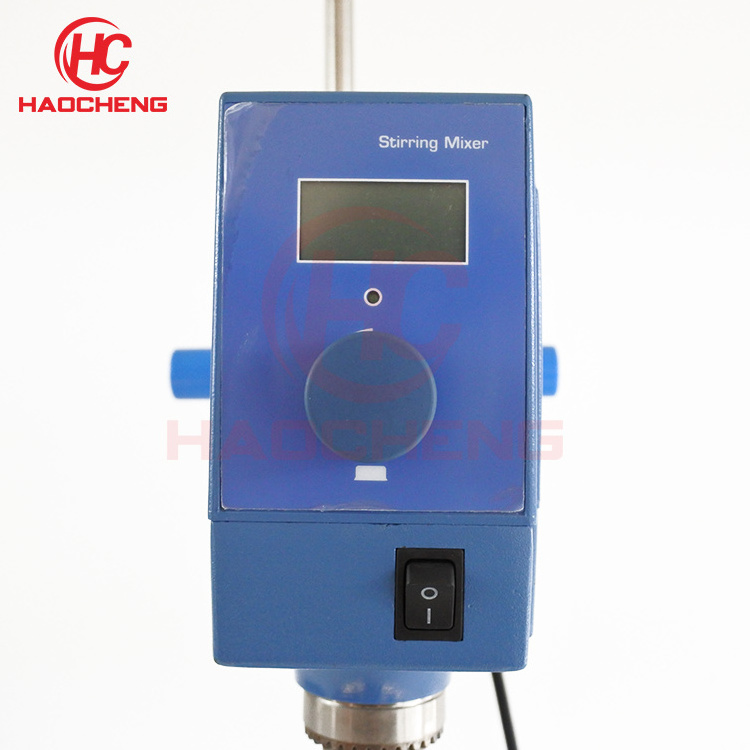

Laboratory high speed motor 50L overhead stirrer mixing
Feature
Brushless DC motor drive ,MCU closed loop control,constant and stable rotational speed,rotary encoder operation
Penetration type stirring shaft,low noise, high reliability and long continuous working.
Digital LCD display rotation speed,60-1500RPM
220/110V Optional
Specification
|
Model |
HM-0C |
HM-100C |
HM-150C |
HM-250C |
|
Motor Power |
5 0W |
10 0W |
15 0W |
25 0W |
|
Motor Type |
Brushless DC Motor |
|||
|
Motor Torque |
20 0m N.M |
45 0m N.M |
60 0m N.M |
1 N.M |
|
Voltage |
220V/110 Optional |
|||
|
Stirring Volume (Water) |
20 L |
50L |
80L |
150L |
|
Stir Speed Range |
60- 1500 RPM |
|||
|
Speed Control System |
Closed Loop MCU Control,Rotary Encoder Operation |
|||
|
Digital display |
LCD |
|||
|
Stir Rod Length |
3 0 0mm (Standard) |
|||
|
Stir Rod Material |
SS 304 |
|||
|
Holder Length |
700mm |
|||
|
Chuck Clamping Range |
Ø 1.5 -1 3 |
Ø 1.5 -1 3 |
Ø 1.5 -1 3 |
Ø 1.5 -1 3 |
|
Dimension ( CM ) |
69 x 39 x 20 |
|||
|
Gross weight (KG ) |
1 1 |
11.5 |
12 |
12 |
