Quick Details
-
Brand Name:
-
DEMENG
-
Voltage:
-
380V
-
Weight (KG):
-
5000
-
substrate:
-
steel ,ceramic, metal, glass,etc.
-
chamber material:
-
stainless steel 304
-
operation:
-
PLC Touch Screen
-
Coating Technology:
-
Multi Arc+Sputtering
-
color:
-
gold, rose gold,blue,gray, black rainbow
-
application:
-
decorative coating,ion coating ,sputtering coating
-
kinds of coating:
-
TiAIN ,TiN,TiCN,TiC,CrCetc,TiC,CrC
-
Certification:
-
ISO9001, CE
-
Structure:
-
Vertical Double Door or Horizontal Single Door
-
pump system orign:
-
pump system orign
Quick Details
-
Machine Type:
-
coating machine, Coating Equipment
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DEMENG
-
Voltage:
-
380V
-
Weight (KG):
-
5000
-
substrate:
-
steel ,ceramic, metal, glass,etc.
-
chamber material:
-
stainless steel 304
-
operation:
-
PLC Touch Screen
-
Coating Technology:
-
Multi Arc+Sputtering
-
color:
-
gold, rose gold,blue,gray, black rainbow
-
application:
-
decorative coating,ion coating ,sputtering coating
-
kinds of coating:
-
TiAIN ,TiN,TiCN,TiC,CrCetc,TiC,CrC
-
Certification:
-
ISO9001, CE
-
Structure:
-
Vertical Double Door or Horizontal Single Door
-
pump system orign:
-
pump system orign
Product Description

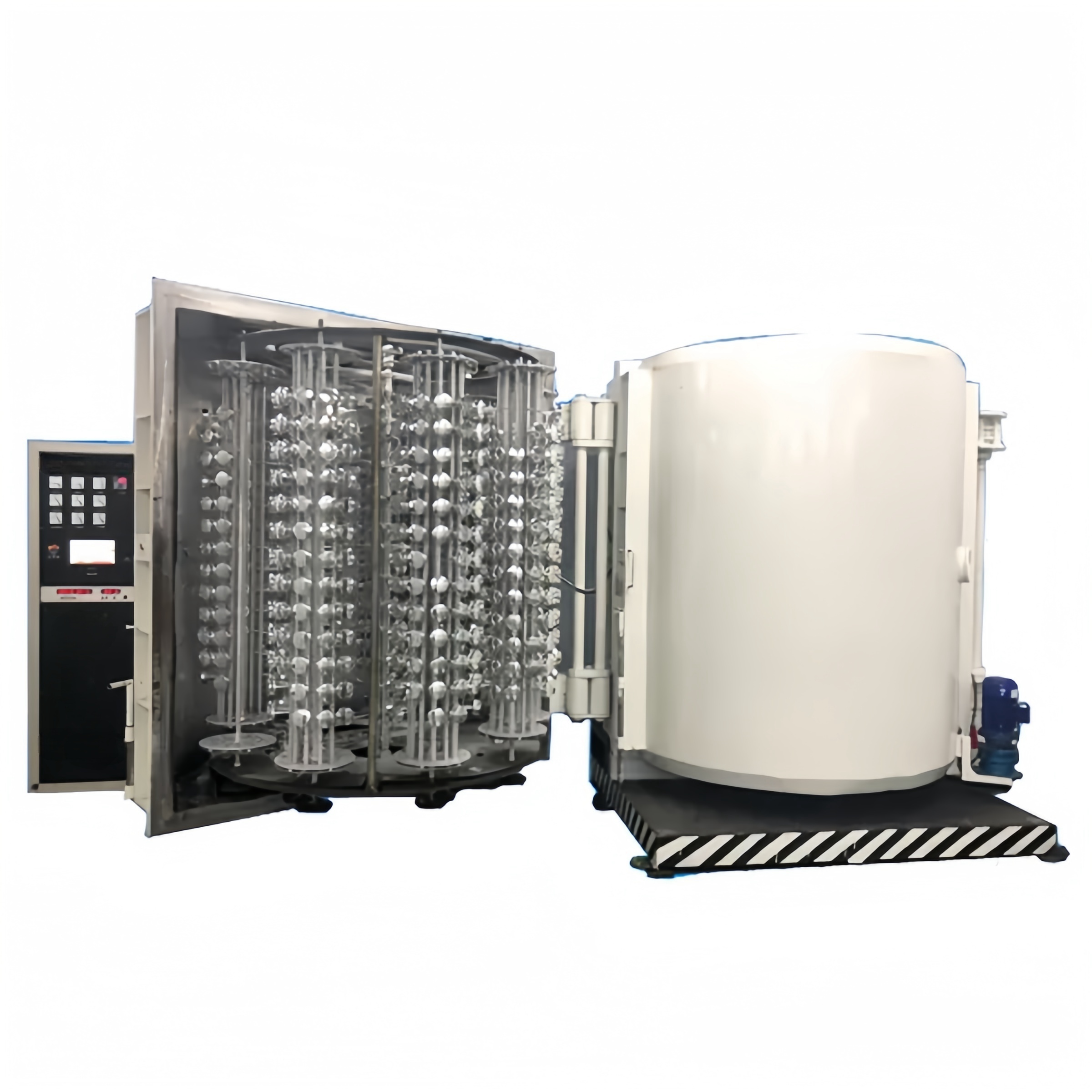

Evaporation equipment is mainly used for evaporating metal or compound films (such as aluminum, chromium, nickel, etc.) on the surface of products, which can be applied to reflective bowls, plastics, acrylic drills, resins, bottom plating, handicrafts, lamps, shoes, mobile phone shells, cosmetic shell caps, toys, Christmas gifts and other industries. Series UV metallization steamer in vacuum conditions to liquefied metal gasification, gasification of metal molecules deposited on the substrate to obtain a smooth high reflectivity metal film, to achieve the purpose of decorating and beautifying the surface of articles.
Specification
|
onfiguration
Model |
TYVAC-1000 |
TYVAC-1200 |
TYVAC-1400 |
TYVAC-1800 |
TYVAC-2200 |
||||
|
Chamber size(MM) |
D1000*H1200 |
D1200*H1500 |
D1400*H1800 |
D1800*H2000 |
D2200*H2400 |
||||
|
Vacuum system |
Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump(optional) |
|
|
|
|
||||
|
Evaporation power |
10KW |
15KW |
20KW |
30KW |
40KW |
||||
|
Ion glow cleaning system |
5KW |
5KW |
10KW |
15KW |
20KW |
||||
|
Control system |
PLC+HMI Full automatic + Remote control system ( optional) |
|
|
|
|
||||
|
Ultimate vacuum |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
||||
|
Total power |
30.6KW |
37.5KW |
58.5KW |
96KW |
125KW |
||||
|
Coating Cycle time |
6 to 10mins one cycle ( Depending on the coating film layer of different coating products) |
|
|
|
|
||||
Technical parameters
Our Factory
Longkou Demeng Machinery Equipment Co., Ltd
.is a global vacuum application solution provider, and high-tech enterprises that research,develop, produce, sell and provide technical services for various vacuum application equipment,semiconductor equipment,electronic production equipment, photoelectric equipment,new energy equipment and supporting facilities.It focuses on the research and development and application of manufacturing process and application technology, control software, process flow control software and related production automation software of equipment and products, and provide technology transfer and technical services.It provides customized and specialized vacuum equipment and process solutions for customers in different industries.
Customer photos
Packaging & delivery
FAQ
Q1:why choose us?
A:Because we have rich experience and professional team, we can guarantee the quality of equipment.
Q2：What is your MOQ?
MOQ: 1PCS, Container delivery.
Q3:Do you offer warranty?
A:Yes,1 year component warranty.
Q4:What advantages do you have?
A:We have Complete global network of consulting, engineering and renowned after sales service.
Q5:What is the delivery time?
A: Our delivery period is 60 days, which needs to be determined according to the order quantity.
Q6:What kind of products do you have?
A:we mainly pruduces multi-arc ion coating machine , magnetron sputtering coating machine, large plate plating machine, large tube plating machine, glass ceramic coating machine, LOW-E glass production line and so on.
Q2：What is your MOQ?
MOQ: 1PCS, Container delivery.
Q3:Do you offer warranty?
A:Yes,1 year component warranty.
Q4:What advantages do you have?
A:We have Complete global network of consulting, engineering and renowned after sales service.
Q5:What is the delivery time?
A: Our delivery period is 60 days, which needs to be determined according to the order quantity.
Q6:What kind of products do you have?
A:we mainly pruduces multi-arc ion coating machine , magnetron sputtering coating machine, large plate plating machine, large tube plating machine, glass ceramic coating machine, LOW-E glass production line and so on.
