- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
JOEN-EW
-
Weight:
-
200 GSM
-
Width:
-
80~230cm, 70~300cm
-
Standing Temperature:
-
550C
-
Material:
-
100% Fiberglass
-
Thickness:
-
0.2mm
-
Roll Length:
-
Customized
-
Certification:
-
ISO9001, MSDS, IMO, CE
-
Coating:
-
Silicone, Alu, PTFE, PVC, PU, etc.
-
Color:
-
White, or customized
-
Product Name:
-
Fiberglass Woven Fabric to Cover Surfboard 6OZ Fiberglass
-
Packing:
-
carton
-
HS code:
-
70195900
Quick Details
-
Application:
-
Wall/Roof covering Cloth
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOEN
-
Model Number:
-
JOEN-EW
-
Weight:
-
200 GSM
-
Width:
-
80~230cm, 70~300cm
-
Standing Temperature:
-
550C
-
Material:
-
100% Fiberglass
-
Thickness:
-
0.2mm
-
Roll Length:
-
Customized
-
Certification:
-
ISO9001, MSDS, IMO, CE
-
Coating:
-
Silicone, Alu, PTFE, PVC, PU, etc.
-
Color:
-
White, or customized
-
Product Name:
-
Fiberglass Woven Fabric to Cover Surfboard 6OZ Fiberglass
-
Packing:
-
carton
-
HS code:
-
70195900
1.Pass ISO 9001, BS EN1869 :1997, LPCB, MSDS, IMO, ASTM, etc.
2.one of the biggest fiberglass fabric manufacturers in China.
3.From R&D, weaving, coating, sewing, packing to shipping, a complete industrial chain was finished by JOEN.

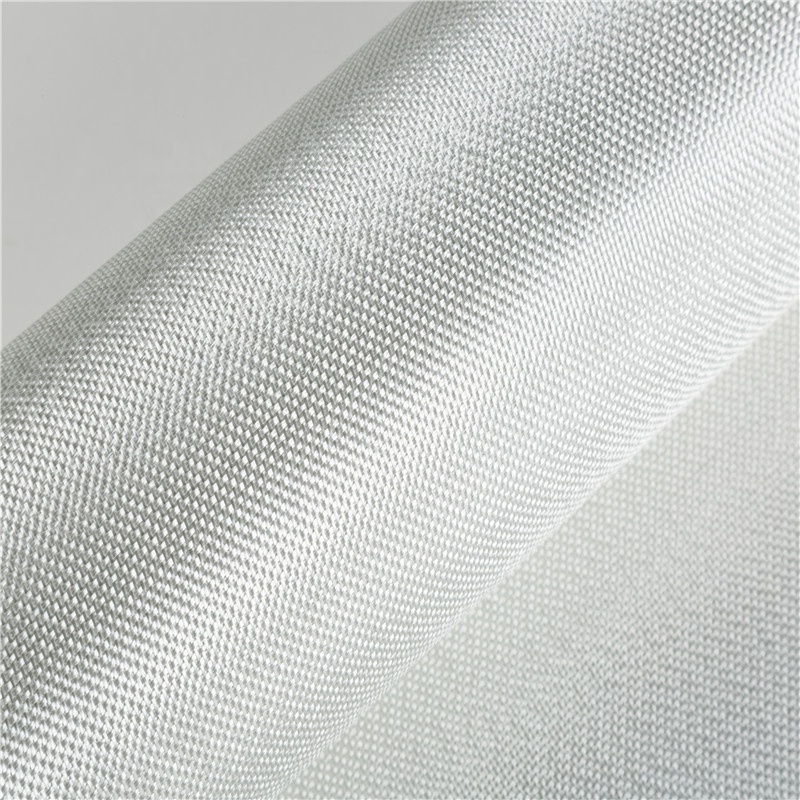

Fiberglass Woven Fabric to Cover Surfboard 6OZ Fiberglass
Fiberglass Fabric has: plain weave, twill weave, satin weave, gauze weave.
a).Plain weave: it can be used in electricity insulation materials and reinforced materials in industry, because of inseparable structure, plain and clear lines. Such as EW140, EW7628, EW200.
b).Twill weave: compared with plain weave, it is of high density, high intensity, with a soft and loose structural weave. It can be used in ordinary reinforced materials, filter materials, and painting cloth, such as EW3732, EW3784.
c) Satin weave: compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced material in machinery, such as EW3784,EW3788.
d).Gauze weave: said lattice twist weave. It can be used in spread model curtain,resin reinforced emery wheel gray cloth and lattice embed belt. specification:5*5, 6*6 and 8*8
| Product | Fiberglass Woven Fabric to Cover Surfboard 6OZ Fiberglass | |||||
| Application |
E-glass fiber fabric can be compatible with polyester, epoxy and vinylester resins. E-glass fiberglass fabric (cloth) is widely uesd in aircraft and spaceflight industry, ship industry, chemical industry, medical industry, military industry, sports goods, etc. It can be used to produce fishing pole, golf pole, baseball pole, surfboard, sailboard, boat hulls, FRP tank, swimming pools, car bodies, FRP pipe as well as other FRP products. |
|||||
| Item No. | Weight, g/m2 | Warp count, threads/cm | Weft count, threads/cm | Thickness, mm | Weave | Temperature resistance, C |
| ESP50 | 50 | 20 | 18 | 0.05 | Plain | 550 |
| ESP100 | 100 | 16 | 15 | 0.09 | Plain | 550 |
| ESP135 | 134 | 10 | 10 | 0.12 | plain | 550 |
| ESP160 | 150 | 12 | 10 | 0.13 | plain | 550 |
| ESP200A | 198 | 8 | 7 | 0.18 | plain/twill | 550 |
| ESP200B | 198 | 16 | 13 | 0.18 | plain | 550 |
| ESP300 | 300 | 8 | 7 | 0.28 | plain/twill | 550 |
| ESP320 | 320 | 8 | 8 | 0.30 | plain/twill | 550 |
| ESP340 | 340 | 9 | 8 | 0.32 | plain/twill | 550 |
| ESP360 | 360 | 10 | 8 | 0.34 | plain/twill | 550 |
| ESP400 | 400 | 8 | 7 | 0.38 | plain/twill | 550 |
| ESP430 | 430 | 8 | 8 | 0.40 | plain/twill | 550 |
Any other requirements can be customized.
Inner packing: paper core and lucid PE bag.
Outer packing: woven bag or carton.
HS code: 70195900
