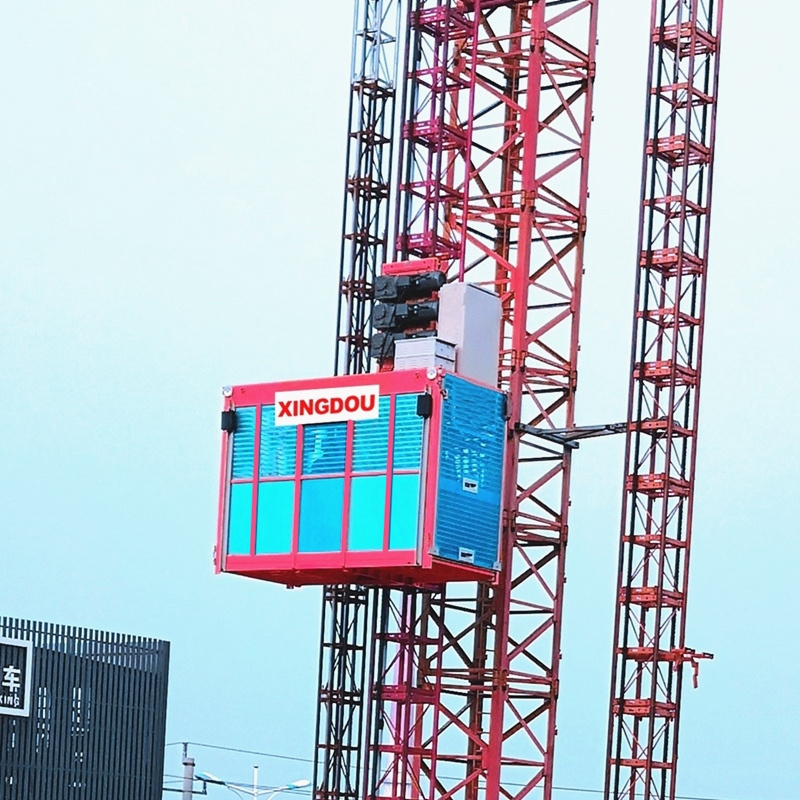

Outdoor SC200 Building Exterior tower elevator construction elevator for personnel and cargo

Outdoor SC200 Building Exterior tower elevator construction elevator for personnel and cargo

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel

Design Style:: Industrial

Place of Origin:: Shandong, China

Brand Name:: XINGDOU

Model Number:: SC200/200;SC100/100;SC150/150

Product name:: Outdoor Building Exterior tower elevator under construction

Driven type:: Rack and pinion

Cage dimension:: 3x1.5x2.2m, 3.2x1.5x2.4m, 3.5x1.5x2.4m, OEM

Size of mast section:: 650*650*1508mm, 450*450*1508mm, 650x900x1508mm

Motor power:: 3*11KW 2X15KW 3*15KW 2*23kw 2x26kw

Safety device:: SAJ4.0-1.2

Power supply:: 380v-480v/50-60hz or can be changeable

Electrical control system:: Schneider, Siemens VFD or common PLC

Experience of Production:: 15 years

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:: Hotel

Design Style:: Industrial

Place of Origin:: Shandong, China

Brand Name:: XINGDOU

Model Number:: SC200/200;SC100/100;SC150/150

Product name:: Outdoor Building Exterior tower elevator under construction

Driven type:: Rack and pinion

Cage dimension:: 3x1.5x2.2m, 3.2x1.5x2.4m, 3.5x1.5x2.4m, OEM

Size of mast section:: 650*650*1508mm, 450*450*1508mm, 650x900x1508mm

Motor power:: 3*11KW 2X15KW 3*15KW 2*23kw 2x26kw

Safety device:: SAJ4.0-1.2

Power supply:: 380v-480v/50-60hz or can be changeable

Electrical control system:: Schneider, Siemens VFD or common PLC

Experience of Production:: 15 years

Outdoor SC200 Building Exterior tower elevator construction elevator for personnel and cargo

Products Description

Technical Table for outdoor SC200 Building Exterior tower elevator construction elevator for personnel and cargo

Type	Lifting Capacity	Lifiting Speed	Motor Power	VFD	Safety device
SC100 L	1000Kg	0～40m/min	2×11Kw	30Kw	SAJ 30-1.2
SC100 L	1000Kg	SC 100 M	1000Kg	30Kw	SAJ 30-1.2	0～45m/min	2×13Kw	45Kw	SAJ 40-1.6
SC 150 L	1500Kg	0～40m/min	2×13Kw	30Kw	SAJ 40-1.2
SC 150 L	1500Kg			0～45m/min	SAJ 40-1.2	2×15Kw	37Kw
SC 200 L	2000Kg	0～33m/min	2×13Kw	30Kw	SAJ 40-1.2
				0～40m/min		3×11Kw	37Kw	SAJ 50-1.6
				0～45m/min		3×13Kw	45Kw	SAJ 50-1.6
SC300 L	3000Kg	0～45m/min	3×15Kw	55Kw	SAJ 40-1.2
SC 100/100 L	1000Kg×2EA	0～40m/min	2×11Kw×2EA	30Kw×2EA	SAJ 30-1.2
SC 100/100 L	1000Kg×2EA			30Kw×2EA	SAJ 30-1.2	0～45m/min	2×13Kw×2EA	30Kw×2EA
SC 150/150 L	1500Kg×2EA	0～40m/min	2×13Kw×2EA	30Kw×2EA	SAJ 40-1.2
SC 150/150 L	1500Kg×2EA			0～45m/min	SAJ 40-1.2	2×15Kw×2EA	37Kw×2EA
SC 200/200 L	2000Kg×2EA	0～33m/min	2×13Kw×2EA	30Kw×2EA	SAJ 40-1.2
				0～40m/min		3×11Kw×2EA	37Kw×2EA	SAJ 50-1.6
				0～45m/min		3×13Kw×2EA	45Kw×2EA	SAJ 50-1.6
SC300/300 L	3000Kg×2EA	0～45m/min	3×15Kw×2EA	55Kw×2EA	SAJ 40-1.2

LOW SPEED construction passenger lift

APPLICATION:

1. Vertical transport for construction of high building.

2. Used in Power station boiler.

3. Vertical transport for steel construction.

FEATURES:

1. Easier for installation

2. Small start-up current, energy saving.

3. Lower mechanical wear

4. Service life extension.

5. More reliable safety.

DETAILS FOR construction passenger lift

Production of common type with PLC control system, or VFD control system series of construction passenger lift for the gear, rack drive, the use of advanced technology at home and abroad, the theory combined with practice, continuous improvement and innovation, reasonable institutions, simple operation, beautiful appearance.

Models have three drives, two drives. construction passenger lift Disassembly is particularly convenient, work more secure. This product has been updated several times, the performance has been improved and improved.

Completed safety measures for Outdoor SC200 Building Exterior tower elevator construction elevator for personnel and cargo

1. Equipping with Anti-falling governor
2. Electrical and Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Wireless Calling system and auto leveling device to be choose.
8. Ramp door for (Ex.door of cage).

9. VFD construction passenger lift Self inspection system

10. Additional safety functions: Identification device, romote monitoring

Manufacturing Technique

Professional Manufacturer of construction passenger lift

Why Choose us:
- Our construction elevator : Zero Accident record, Safety is the first!
- Our construction elevator : Large product workshop and R&D Team, OEM Ability
- Our construction elevator : Advanced equipment and manufacturing workmanship
- Our construction elevator : Fast delivery, Rapidly service, Responsible Team quickly response
- Our construction elevator : Overseas Service Team Come abroad

5S International management for Workshops.

Our company have 10+ years of construction elevator manufacturing experiences, we adopt 5S workshops management. Keep everything in order to avoid mistakes and work out in principle. In busy time, it can lead to a efficient, correct work! With the innovation of construction hoist technology , and the development of the advanced equipment, the workshop becomes the industrial model factory of construction passenger lift , construction elevator, Building hoist, passenger hoist, small hoist.

Successful Case

Our construction elevator have been exported to UAE, Saudi,Arabia, Kuwait, Qatar, Russia, Kazakhstan, Mongolia, Korea, Philippines, Malaysia, Indonesia, Myammar, Thailand, Brazil, Barbados, Panama, Guatemala, Venezuela, Slovenia, Denmark and so on nearly 50 countries. The good working performance of construction passenger lift have got many praise from users.
