Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP2-010-040-21
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8" [10 mm] Hose Barb
-
Max Flow Rate:
-
1.0 GPM [3.8 LPM]
-
Max Pressure:
-
40 PSI [2.7 Bar]
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
4' [1.2 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Intermittent
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
Quick Details
-
Application:
-
Family Homes, Irrigation and Agriculture, Washing and Cleaning
-
Pressure:
-
Low Pressure
-
Voltage:
-
24 / 12 V DC
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP2-010-040-21
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8" [10 mm] Hose Barb
-
Max Flow Rate:
-
1.0 GPM [3.8 LPM]
-
Max Pressure:
-
40 PSI [2.7 Bar]
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
4' [1.2 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Intermittent
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
| Features & Benefits |
|
1.Flow rate up to 1.0 GPM [3.8 LPM]
3.Automatically turn on and off 5.Quiet operation 7.On demand or by pass use |
2.Can run dry without damage 4. Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |

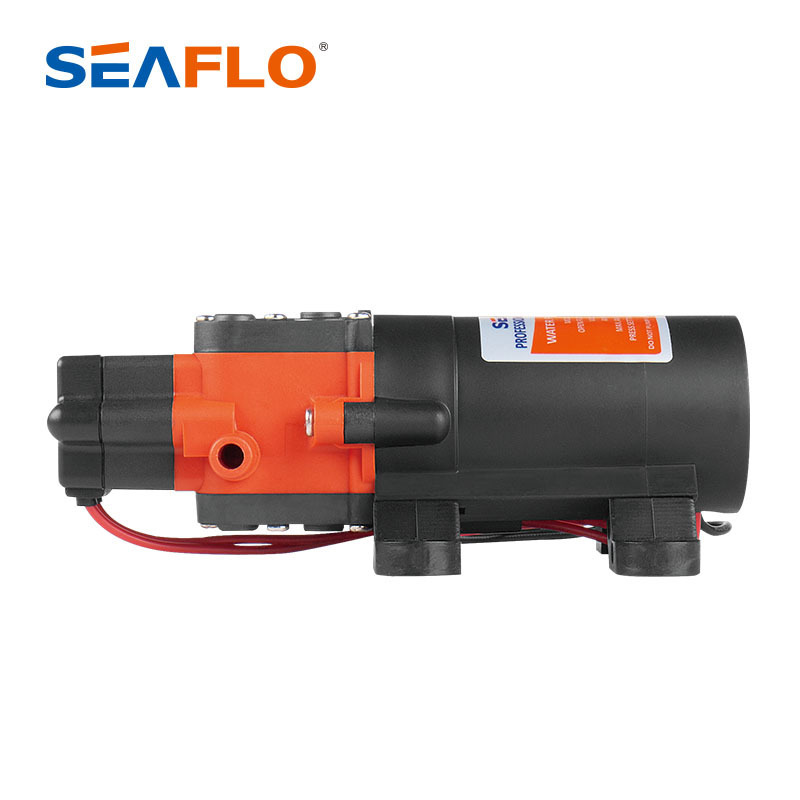

| Product Name | SEAFLO 24V DC Hot Water Diaphragm Micro Pump |
| Pump Type | 2 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 1.0 GPM [3.8 LPM] |
| Max Pressure | 40 PSI [2.7 Bar] |
| Voltage | 24 VDC, and 12 V, 115 V, 230 V are available |
| Max Amp | 2.0 A |
| Fuse | 6.0 A |
| Switch Type | On Demand [Cut-off Switch], and By Pass, none switch are available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber, and EPDM is available |
| Duty Cycle | Intermittent |
| Self Priming | 4' [1.2 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/8" [10mm] hose barb, and contact us for more ports |
| Lead | 14" [35 cm] 18 AWG lead |
The 21 Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.1 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
| Product Show |
| Dimensions |
| Performance |
| Motor Heat Rise |
| Product Details |
Standard Pump Configurations
| Model | Voltage |
Open Flow GPM [LPM] |
Cut off Pressure PSI [BAR] |
Max Draw | Diaphragm | Valve |
| SFDP1-010-040-21 | 12 V | 1.0 [3.8] | 40 [2.8] | 4.0 A | Santoprene | EPDM |
| SFDP2-010-040-21 | 24 V | 1.0 [3.8] | 40 [2.8] | 2.0 A | Santoprene | EPDM |
| SFDP1-007-070-21 | 12 V | 0.7 [2.7] | 70 [4.8] | 4.0 A | Santoprene | EPDM |
| SFDP2-007-070-21 | 24 V | 0.7 [2.7] | 70 [4.8] |
2.0 A |
Santoprene | EPDM |
| SFDP1-010-060-21 | 12 V | 1.0 [3.8] | 60 [4.1] | 4.5 A | Santoprene | EPDM |
| SFDP2-010-060-21 | 24 V | 1.0 [3.8] | 60 [4.1] | 2.5 A | Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 80 PSI [5.51 Bar] ; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 1.1 GPM [4.0 LPM]. Material can be adjusted according to your requirement.
Package Infomation
| Unit Pump Weight | 1.35 lbs [0.61 kg] | |
| Selling Unit Size (L x W x H) |
7.28" x 4.13" x 2.75" [18.5 x 10.5 x 7.0 cm] |
|
| Selling Unit Weight | 1.51 lbs [0.69 kg] | |
| Master Carton Qty | 30 pcs / carton | |
| Master Carton Size (L x W x H) |
15.43" x 13.19" x 14.05" [39.2 x 33.5 x 35.7 cm] |
|
| Master Carton Weight | 45.82 lbs [20.78 kg] |
