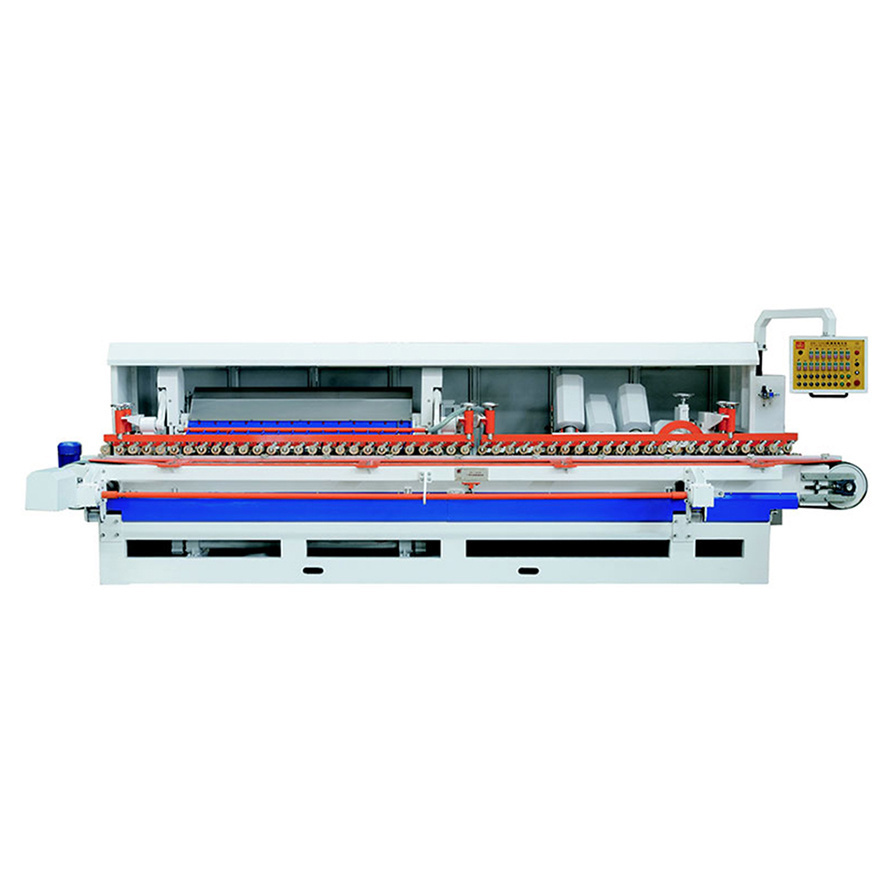

Ceramic tiles arc edge profiling polishing machine

Product Application

Ceramic tiles arc edge profiling polishing machine is for ceramic tiles and stone processing with more reliable performance. It can finish all the process for stairs tile and skirting tile for one time finishing. It can make the edge with 45 degree, 23 degree, 90 degree chamfering and polishing. It also can make notching on the stairs tiles. This machine is easy to operate and process automatically with low cost and high efficiency.

Main Features

1) For ceramic tiles and stone processing with more reliable performance.

2) Finish all the process for stairs tile and skirting tile for one time finishing

3) Can make the edge with 45 degree, 23 degree, 90 degree chamfering and polishing

4)  Easy to operate and process automatically with low cost and high efficiency

Machine Parts

1st trimming head
Main power 4kw
Chamfering wheel Ф200mm

2nd notching head
Main power 2.8kw
Notching disc Ф150mm*4pcs

Main Features

From right to left
3rd 45º chamfering head
4th 30º chamfering head
5th 45º chamfering head
6th 60º chamfering head
Main motor 2.2kw/head
Chamfering wheel Ф200mm

Machine Parts

7th 45º chamfering head

Main motor 2.2kw

Chamfering wheel Ф200mm

Main Features

14 heads polishing wheels
Main power 1.5kw/motor
Controlled by cylinder
Two head with one motor
Ф100mm chamfering wheel
