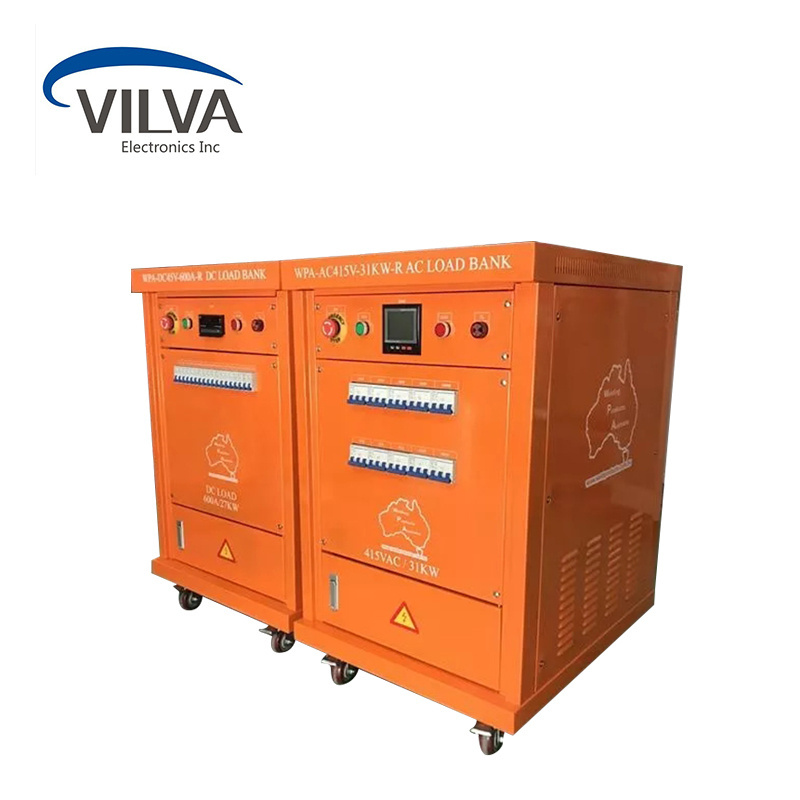

AC400V 20KW Resistive Load Bank/ 3 phase dummy load bank For UPS/Generator Testing

AC400V 20KW Resistive Load Bank/ 3 phase dummy load bank For UPS/Generator Testing

FOB Reference Price: Get Latest Price

≥1 Sets

US $999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Optional

(W*D*H):: 600*750*1110mm

Material:: Alloy Resistor

Rated Power:: 20KW

Rated Voltage:: AC400V 3 phase 4 wire 50Hz/60Hz

Load Tolerance:: ≤±5%

Control power:: AC400V 3 phase 4 wire 50Hz/60Hz

Power factor:: 1

Quick Details

Power:: Electronic

Place of Origin:: China

Product name:: 20kw resistive load bank

Color:: Optional

(W*D*H):: 600*750*1110mm

Material:: Alloy Resistor

Rated Power:: 20KW

Rated Voltage:: AC400V 3 phase 4 wire 50Hz/60Hz

Load Tolerance:: ≤±5%

Control power:: AC400V 3 phase 4 wire 50Hz/60Hz

Power factor:: 1

AC400V 20KW Resistive Load Bank/ 3 phase dummy load bank For UPS/Generator Testing

Product Description

1.20KW Resistive Load Bank is mainly used for power station, AC power supply, data center and other testing.The dummy resistive load can detect the performance of different loads of the AC power supply of the power station.The power input is uniformly optimized to meet the needs of different loads.
2.Resistive load adopt new type consumption components,Resistance thermal shrinkage and sealing installed in stainless steel tube, steel tube with insulation radiator, good moisture and corrosion resistance, good heat dissipation, high insulation, safe and reliable.High power density of resistance elements, Three phase current balance，no red heat phenomenon，The independent cooling
fan ensures the heat dissipation and service life of the whole system.
3.The load overcomes the fact that the water resistance test system cannot accurately control the resistance value,the water is easy to boil, easy to scale, can not be subjected to sudden loading/depression load reduction test, and is difficult to control.It is an upgraded product of water resistance.This product has high safety, low maintenance cost, low noise and strong overload capability.
4.The fan adopts a small axial fan, with large wind volume, good heat dissipation, low noise and other characteristics.

Product Paramenters

NO	Product Name	VILVA-AC400V-20KW-R Load Bank /20KW Resistive Load Bank
1	Rated Voltage	Three-phase four-wire ,AC400V,50HZ
2	Rated Power	20KW
3	Power factor	1
4	Load step	100W,200W,200W,500W,1KW,2KW,2KW,5KW,10kw.
5	Test accuracy	≤±5%
6	Sampling accuracy	0.5 class
7	Display accuracy	0.5%F.S
8	Display mode	Voltage /Current/Power etc.
9	Protection function	Over temperature protection, Buzzer and light alarm.Emergency stop protection
10	Control power	3-phase,AC400V
11	Work Mode	Continuous work
12	Cooling Mode	Force-air cooling
13	Control mode	Local manual control, Breaker （or button）
14	Color	Optional
15	Move mode	Four wheels
16	Ambient Temperature	-10℃～+50℃
17	Humidity	≤95%
