Quick Details
-
Brand Name:
-
YUTONG
-
Dimension(L*W*H):
-
Customer'demand
-
Capacity:
-
100-20000L
-
Weight:
-
1000
-
Inner Material:
-
Q345
-
Outer Material:
-
Q345
-
Designed pressure:
-
1.1Mpa-1.4Mpa
-
Designed temperature:
-
187-198
-
Working medium:
-
Saturation steam
-
Steam:
-
Provide by boiler
-
Mode of opening:
-
manual or automatic
-
Technical service:
-
More than 30 years manufacturing experience
-
Certificate:
-
ISO9001:2008/CE
-
Shipping:
-
by sea
-
Color:
-
Optional
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Volume (m³):
-
~100
-
Max Working Pressure(MPa):
-
3.8 MPa
-
Place of Origin:
-
China
-
Brand Name:
-
YUTONG
-
Dimension(L*W*H):
-
Customer'demand
-
Capacity:
-
100-20000L
-
Weight:
-
1000
-
Inner Material:
-
Q345
-
Outer Material:
-
Q345
-
Designed pressure:
-
1.1Mpa-1.4Mpa
-
Designed temperature:
-
187-198
-
Working medium:
-
Saturation steam
-
Steam:
-
Provide by boiler
-
Mode of opening:
-
manual or automatic
-
Technical service:
-
More than 30 years manufacturing experience
-
Certificate:
-
ISO9001:2008/CE
-
Shipping:
-
by sea
-
Color:
-
Optional
-
After-sales Service Provided:
-
Field installation, commissioning and training

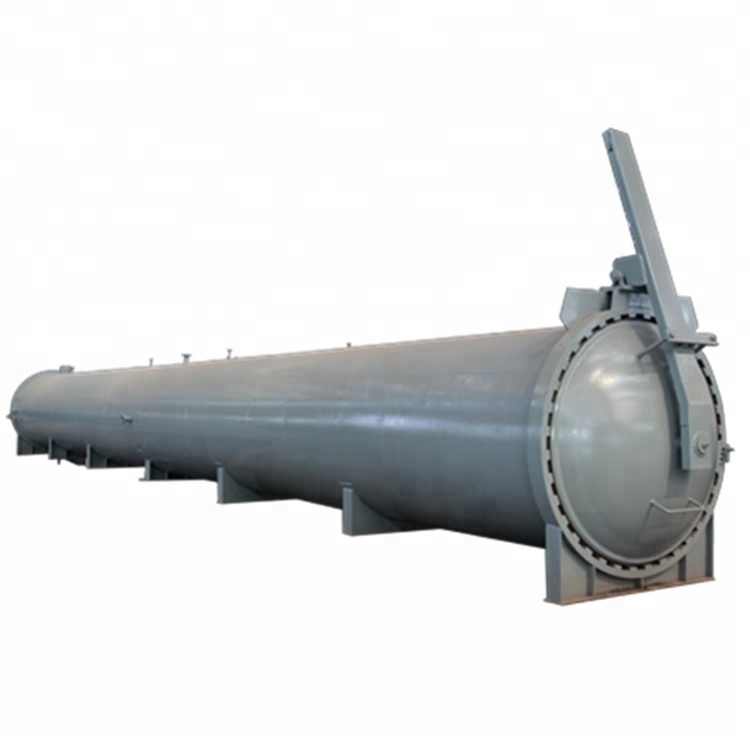

Industrial High Pressure Composite Autoclave Carbon Fiber for Lab
1.Autoclavedoor seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.
2.Autoclave body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.
Autoclave Kettle belongs large pressure vessel equipment, used for maintenance and steaming of lime-sand brick, fly-ash brick, aerated concrete blocks, new light wall material, and concrete tubular pile and other building products, presently, autoclave not only used in silicate building products, it was also used for the products steaming in chemical industry, medicine, rubber, wood, gypsum, glass, thermal insulation materials, textile, war industry and other areas.
Show Details:
Technical Parameters:
|
Model
|
FGZCS1.0-1.65x21 |
FGZCS1.3-2x21 |
FGZCS1.3-2x27 |
FGZCS1.3-2x31 |
FGZCS1.3-2.5x27 |
FGZCS1.3-2.5x31 |
|
|
Internal diameter(m) |
1.65 |
2 |
2 |
2 |
2.5 |
2.5 |
|
|
Effective length(m) |
21 |
21 |
27 |
31 |
27 |
31 |
|
|
Max working temperature(C) |
184 |
194 |
194 |
194 |
194 |
194 |
|
|
Max working pressure(Mpa) |
1 |
1.3 |
1.3 |
1.3 |
1.3 |
1.3 |
|
|
Design Pressure(Mpa) |
1.1 |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
|
|
Design Temperature(C) |
187 |
198 |
198 |
198 |
198 |
198 |
|
|
Working medium |
Saturated steam |
||||||
|
Total length(m) |
22.65 |
23.3 |
2.9 |
33.3 |
29.56 |
33.56 |
|
|
Wide(m) |
2.6 |
2.9 |
2.9 |
2.9 |
3.2 |
3.2 |
|
|
Height(m) |
2.6 |
3.3 |
3.3 |
3.3 |
4.1 |
4. |
|
Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
Our autoclave exported to many countries, India, Nigeria, Bangladesh, Ethiopia, Turkey, Uzbekistan, Egypt, Lebanon and Pakistan etc.
