Quick Details
-
Panel Size:
-
55"
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MD-550
-
Pixel Pitch:
-
3.5, 0.53mm*(H)*0.53mm(V), 0.8
-
size:
-
55 inch
-
bezel:
-
3.5mm
-
Viewing Angle:
-
Horizontal 178/Vertical178
-
Response Time:
-
8ms
-
Resolution:
-
1920x1080P
-
Input Voltage:
-
110V-240V
-
Brightness:
-
500cd/sqm
-
Outline Dimension:
-
1213.4*684.2*120.65mm
-
Port:
-
Input: HD*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
GENEVISION
-
Color:
-
Black
-
Panel Size:
-
55"
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MD-550
-
Pixel Pitch:
-
3.5, 0.53mm*(H)*0.53mm(V), 0.8
-
size:
-
55 inch
-
bezel:
-
3.5mm
-
Viewing Angle:
-
Horizontal 178/Vertical178
-
Response Time:
-
8ms
-
Resolution:
-
1920x1080P
-
Input Voltage:
-
110V-240V
-
Brightness:
-
500cd/sqm
-
Outline Dimension:
-
1213.4*684.2*120.65mm
-
Port:
-
Input: HD*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2
Click the follow next pic & text to learn more popular products:

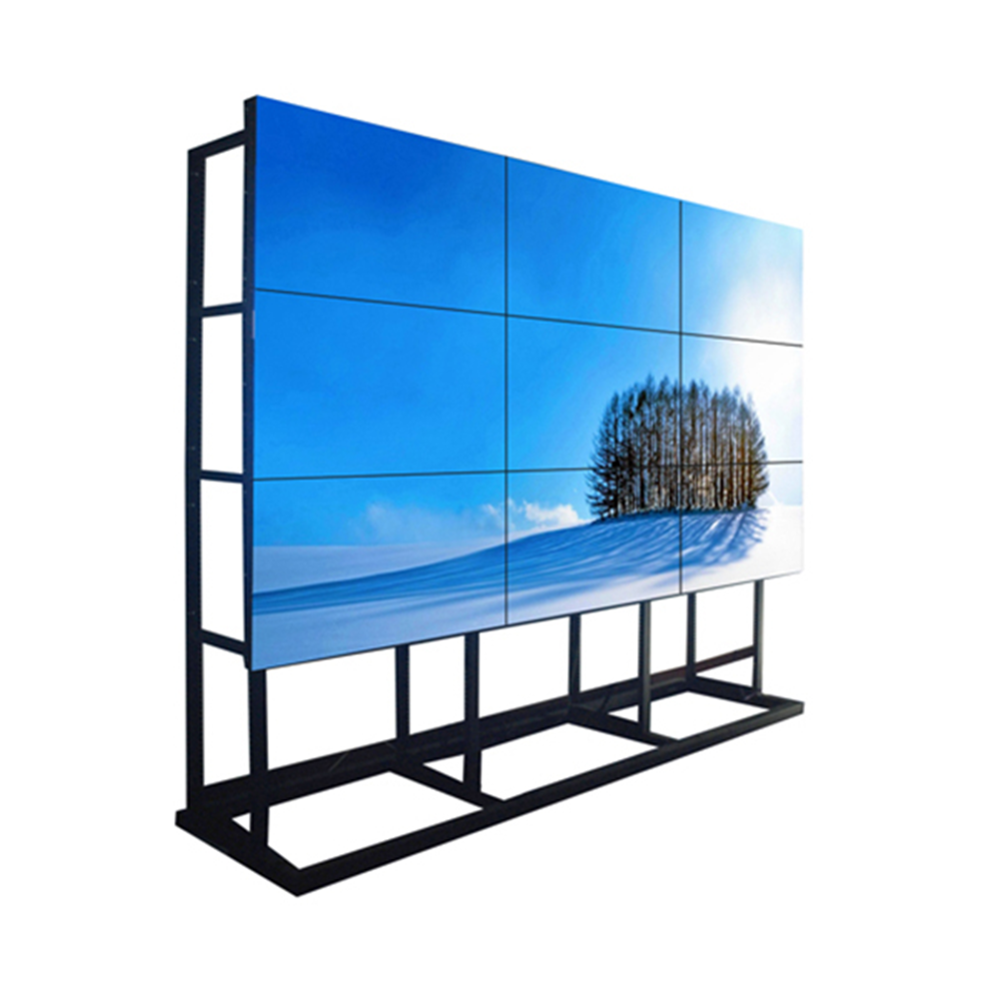

indoor 2*2 3*3 55 inch lcd video wall led video wall with narrow bezel 3.5mm for advertising
Quick details:
* LCD-DID Industrial HD&High-brightness narrow edge LCD.
* Narrow Edge Design: Minimum 10mm.
* High Resolution Ratio: 1920*1080
* High-brightness: 500-700cd/sqm
* Super wide visual angle:178(H)/178(V)
* Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
* Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming
service,scaling,PIP Support matrix joint control.
* Unique DNX motion supplement image processing technology, Dynamic image without motion trail,Splicing image processing
RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.
|
Specification:
|
|
|
|
|
|
||||
|
Specification
|
MG-550
|
|
|
Panel Size
|
55"LED
|
||||
|
Panel brand
|
Original BOE orLG A+ level
|
|
|
|
|
||||
|
Aspect Ratio
|
16:9
|
|
|
|
|
||||
|
Visual Angle
|
Horizontal 178/Vertical178
|
|
|
|
|
||||
|
Brightness
|
500-700cd/sqm
|
|
|
|
|
||||
|
Bezel
|
3.5mm
|
|
|
|
|
||||
|
Back light
|
LED backlight
|
|
|
|
|
||||
|
Contract Ratio
|
4000:1
|
|
|
|
|
||||
|
Resolution Ratio
|
1920*1080
|
|
|
|
|
||||
|
Color Components
|
16.7M
|
|
|
|
|
||||
|
Response Time
|
8ms
|
|
|
|
|
||||
|
Power Consumption
|
120W/150W
|
|
|
|
|
||||
|
Standby power consumption
|
10W
|
|
|
|
|
||||
|
Power Supply
|
Input:AC110-220V-50/60Hz
|
|
|
|
|
||||
|
Life of Panel
|
60000Hours
|
|
|
|
|
||||
|
Panel Display Area
|
1209.6*680.4mm
|
|
|
|
|
||||
|
Outline Dimension
|
1213.4*684.2*120.65mm
|
|
|
|
|
||||
|
Port
|
Input: HDMI*1，VGA*1，DVI*1，AV*2，RS-232*1,Output: AV*1，RS-232*2
|
|
|
|
|
||||
|
VGA/DVI Resolution Ratio
|
640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080
|
|
|
|
|
||||
|
HDMI Resolution Ratio
|
480I,480P,576I,720P,1080I,1080P
|
|
|
|
|
||||
|
Split Screen/PIP Mode
|
Two signals image or PIP
|
|
|
|
|
||||
|
Splice Function
|
Multiscreen Splice Function(image processing Function)
|
|
|
|
|
||||
|
Bracket carton packing(for 7pc system)
|
146*34*25cm, G.W.:33kg
|
|
|
|
|
||||
A: Nercedes is a professional manufacturer with CBU assembly production lines.Both of your oem/odm and sample testing order are high
appreciated.
2.Q:Which payment is acceptable?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union, Paypal, Cash and MoneyGram.
3.Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 1 whole years after delivery at best.
4.Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers
for years.what's more,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check
certificate. I hope those above will be persuasive enough.
5.Q: what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment
time is 3-5 working days after delivery.
6.Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7.Q: Are the pictures real?
A:All pictures of the products are in 100% real sight. And we can make a live video chat to get all angel sights.
