Competitive Price Shrimp Farming Aerator Aquaculture Machinery Fish Farming Equipment Exporter From India

Competitive Price Shrimp Farming Aerator Aquaculture Machinery Fish Farming Equipment Exporter From India

FOB Reference Price: Get Latest Price

≥20 Sets

US $290

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 105 KG, 105kgs

Name:: Electric Paddle Wheel Aerator

Motor:: AC Electric Motor

Type:: Bevel Gear

Power:: 1.5kw 2HP

Voltage:: (1ph/220V) (3ph/415V)

Output:: 2.5kg/H

Use:: Shrimp farming/Aquaculture/Fish farming

Color:: Silver & Blue

Load Qty.:: 40" - 110 Units 20" - 50 Units

Quick Details

Place of Origin:: Gujarat, India

Brand Name:: SAGAR

Model Number:: STD-B24

Weight:: 105 KG, 105kgs

Name:: Electric Paddle Wheel Aerator

Motor:: AC Electric Motor

Type:: Bevel Gear

Power:: 1.5kw 2HP

Voltage:: (1ph/220V) (3ph/415V)

Output:: 2.5kg/H

Use:: Shrimp farming/Aquaculture/Fish farming

Color:: Silver & Blue

Load Qty.:: 40" - 110 Units 20" - 50 Units

Product Description

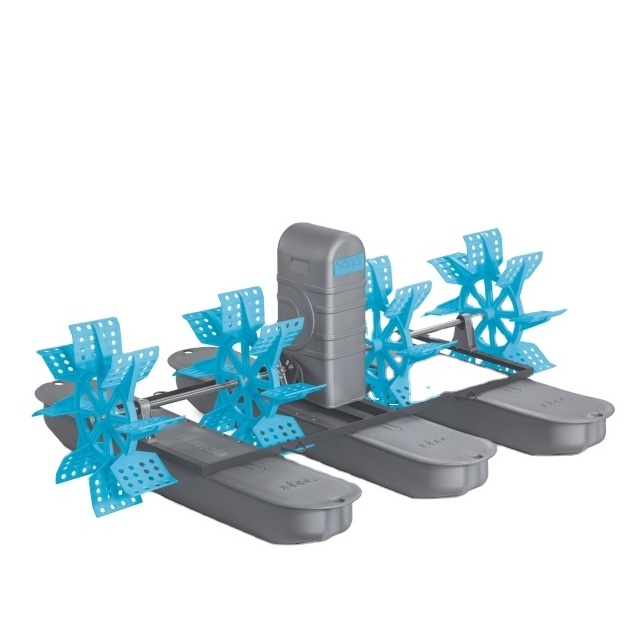

2HP Paddle Wheel Aerator

2HP Paddle Wheel Aerator - STD - B24 is specially design for extensive & modified extensive Shrimp/ Prawn & Fish Aqua Culture. It helps to increase DO concentration during pond culture & it also helps for removed temperature stratification in the daytime and eliminated oxygen gradient in the nighttime. Paddle Wheel Aerator create good water current ( Flow ) in the pond so, every time it clean Feeding Path and due to water current all feed waste & Animal Waste move to the pond center area.

SPECIFICATIONS FOR 2HP PADDLE WHEEL AERATOR
Item No.	Part Name	Qty./ Set	Short Specification
1	Motor	1	IE Class - 2 ISI mark Motor With CED Coating and F Class Insulation
2	Gear Box	1	Bevel - Helical Type Gear Box With CED Coating
3	Movable Joint	2	Stainless Steel - 304 with High Quality Rubber
4	HDPE Float	3	Virgin HDPE with UV
5	Impeller	4	Virgin Plastic with UV
6	HDPE Cover	1	Virgin HDPE with UV
7	Shafting	2	Stainless Steel - 304 L Sleeve with inside Solid Iron Road
8	SS Frame	1	Stainless Steel - 304 L Angle
9	SS Bolt Kit	1	Stainless Steel - 304
10	Tripod	2	virgin Plastic with UV

Main Features

1.Arcurate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2. The accurate-bevel gear is made of chromium-manganese-titanium with carbon-nitrite surface treatment. Ensuring long usage life spans and high rigidity.
3. Mechanical seal is available to prevent oil leakage
4.High efficiency oxygen transferring ability with 2.5kgs O2/h
5.Have good water current circulation as the making of large Area water wave
6. Easy assessment,Operation and maintenance
7. Durable service life

* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3. Your request of Oxygen per hour for your pond.

* Professional Sale Service : Make you NO-Worry for use.

1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.

Certifications

Detailed Images

Aerator Part:

Name: 2HP AC Electric Motor
Rated Power : 1.5KW
Phase: 1 Phase / 3 Phase
Voltage: 210V / 415V
Rated Frequency: 50Hz/60Hz
Speed(RPM):1440
Motor Body : Casting Body With CED Coating
Insulation : F-Class
Color: Epoxy Dark Grey

• ISI Mark heavy duty IE Class - 2 Motor having IP65 Standard to protect motor from water and dust.
• We are using High Quality SKF Bearing for long life of bearing and smooth running.
• Our motor body casting is High Presser molding system, it design gives beautiful look and generate low Heat.

Name: Bevel Gear Box
RPM: 106
Reducing Ratio: 1:13
Gear Type: Bevel & helical
Body: Cast Iron Body With CED Coating
Shaft OD: 25.4mm
Shaft: SS 304
Color: Epoxy Dark Grey

• Our gear body machining done by HMC machine for accurate Fitting & perfect output.
• We Provides External sleeves to protect water go inside. Due to this protection gears life will be long.
• All bearings are HCH, it gives more life to gearbox and support for Smooth Running.
• 100% gear box pass throw noise level testing and water leakage testing for best Quality.
• Due to Bevel type gear box, it's saving 20% power consumption compare to Warm type gear box.

Name : HDPE Float

Material: HDPE Virgin
Weight: 6.5 to 7 Kg
Color: Silver
Length: 174 CM (5 Feet 8.5")
Width: 33.02 CM (13")
Height:20.32 CM (18")

• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight.

Name: Impeller
Material: Virgin PP
Weight: 2.4KG
Bush: Brass
Die: 68 CM
Width : 19.8 CM
Color : Sky Blue
Type: Single Mould-Undetectable

• Due to Single Unit Impeller, it's create more water flow and spread more water
• Copper Brass bushing protect from rust
• Due to high technical Impeller Design, our aerator provide best performance
• By adding 4% UV float get protection for direct sunlight
• Sky Blue color with silver float combination give very attractive look

Name: Stainless Steel Frame

Material: SS-304 Original L Angle
Weight: 10.3 KG
Color: Powder Coating for better Look

• Due to Original L Angle, it is very heavy duty frame & it give good stability to Aerator in running condition
• SS 304 material with Powder Coated protect Frame from Rust.

Name: Shafting
Material: SS- 304 L Sleeve with Sleeve with solid Iron Road
Weight: 6.5 To 7 Kg
Grow: Made by HMC Machine
Die: 25.4 MM
Length: 85 CM

• Due to SS 304 L 1.5 mm thick Sleeve 100% rust proof
• due to inside solid Iron Bar, it very heavy & it has long life.

Name: HDPE Gear-Motor Cover Material: HDPE Virgin
Weight: 2.3 To 2.4 Kg
Length: 32 CM
Width: 24 CM
Height: 65.5 CM

• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight
• Silver color make our product unique from others company common blue color.

Name: Stainless Steel Movable Joint
Material: SS-304 with 10% Nickle
Rubber: High Quality 15 mm Thick rubber
Bolt: SS-304

• Due to SS - 304 movable joint - it don’t get rust
• Due to Heavy Quality Rubber it is has long life
• Due to SS - 304 Bolt it can open easily after every season ( After Harvesting )
