Two float balls are to detect the amount of the water in the water tower. if the water in the water tower is getting less, the balls will become heavy, and start the motor to pump water.
In the market, most of the float switch are provided with two small water balls, but we provided a bigger float ball, to detect the water more accurate and make sure pump be acted.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YUHO
-
Model Number:
-
FL-310
-
Application:
-
Level Control
-
Material:
-
Plastic
-
Max. working pump:
-
1HP
-
Measuring Range:
-
0-30m
-
Power supply:
-
110~220V
-
Working temperature:
-
20~80
-
Process connection:
-
1/2" and 3/4"
-
Package:
-
30pcs/carton
-
Installation method:
-
Vertical Mounted
-
Certification:
-
CE
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
1 year
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
YUHO
-
Model Number:
-
FL-310
-
Application:
-
Level Control
-
Material:
-
Plastic
-
Max. working pump:
-
1HP
-
Measuring Range:
-
0-30m
-
Power supply:
-
110~220V
-
Working temperature:
-
20~80
-
Process connection:
-
1/2" and 3/4"
-
Package:
-
30pcs/carton
-
Installation method:
-
Vertical Mounted
-
Certification:
-
CE
Product Introduction

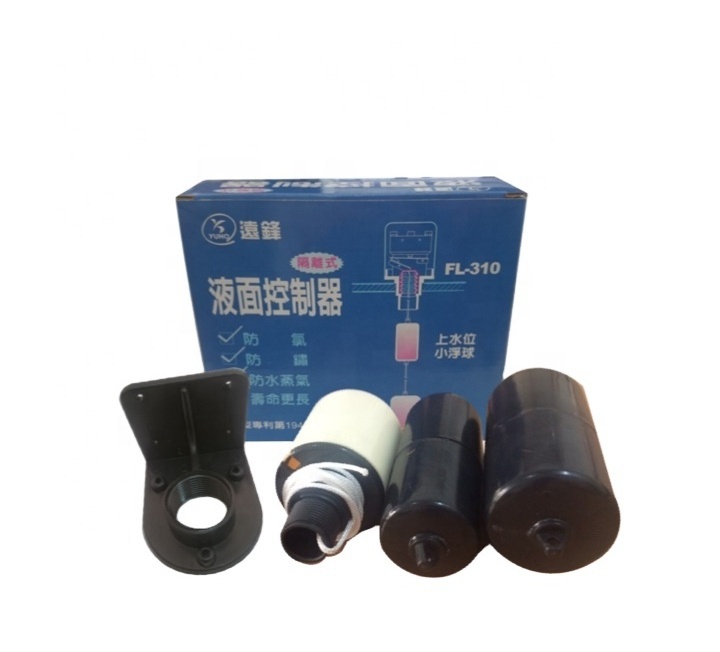

Isolated Level Controller FL-310 (chlorine, rust, water vapor)
Introduction:
1.Isolated patent design unit prevent microswitch from rotting by moisture and extend lifespan.
2.Bigger float unit provide extra weight to acting float switch.
3.Nylon with fishing line.
4.Made in Taiwan
5.Max. operation power: 15A / 1HP water pump.
6.Application: water tank/ storage tank.
Feature
:
1.Suitable for AC 110V~220V single phase / 15A, maximum work: 1HP stirrup.
2.Patented isolator design: Prevents water vapor from corroding internal electronic components, causing short circuits.
3.The patented launch ball float has an unequal weight setting and is suitable for any environment.
4.Easy to install.
5.long lasting.
6.Start fast.
7.Highly sensitive design.
8.Precise control of water level.
9.Maintain the water tank water level ratio.
10.New Patent Type No. 194305
|
Product Specification
|
|
|
|
|||
|
Model
|
Description
|
Unit price
|
Quantity
|
|||
|
FL-310
|
Max: 15A / 1HP
|
2.2
|
45/CTN
|
|||
Waterproof Rubber
Patent NO. 194305
ISOLATED RUBBER UNIT
comparing to other similar products, it can
protect the metal on the top more from water
, and i
ncrease the float switch using time.
Feature :
1.Insulate moisture
2.Insulate chlorine.
3.Prevent microswitch from rotting and stop working
4.Extend lifespan
Waterproof Thread
the waterproof thread is connect with whole float switch, from metal slice to the big one water ball.
when the water balls sinks, the thread will be pulled to start the metal which is to pump water.
the waterproof thread inside the cotton thread can increase double time longer than normal product.
micro switch top
micro switch button
when the water become less, the water ball will sink and pull the waterproof thread, then the metal slice will push the button to let the micro switch power on
micro switch bottom
power off
when the water in water tank is enough, the metal slice won''t be pulled to press the button.
power on
when the water in water tank is "not enough", the metal slice will be pulled to press the button, then start the pumper for more water.
The float switch is usually use with water tank, to detect the water whether enough, and make sure the water can be ready all the time. it can use both in domestically and industrially.
