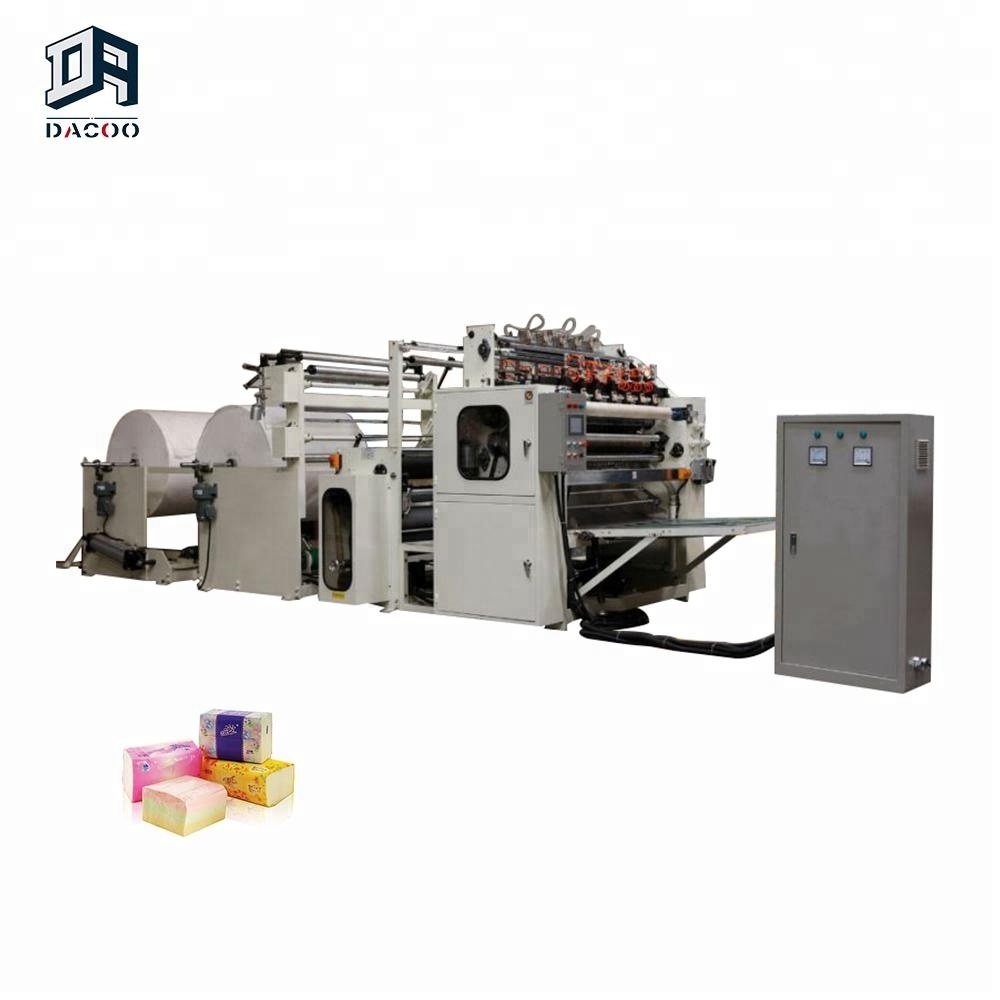

Facial tissue paper folding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $25000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: depend on final configuration

Power:: depend on final configuration

Dimension(L*W*H):: 5200*(1220~2420)*2000 mm

Weight:: 3400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: facial tissue folding machine

Quick Details

Production Capacity:: 1000~1800 sheets/minute

Place of Origin:: China

Brand Name:: DACOO

Voltage:: depend on final configuration

Power:: depend on final configuration

Dimension(L*W*H):: 5200*(1220~2420)*2000 mm

Weight:: 3400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: facial tissue folding machine

Facial tissue paper folding machine

Welcome to Sinowise

Product Description

Product Names: facial tissue making machines , tissue machines , tissue paper folding machines , facial tissue paper folding machines , face tissue paper folding machines , face tissue paper making machines , face tissue paper folding machines

We can make it in 2lanes, 4lanes, 5lanes, 6lane, 7lanes, 8lanes, 10lanes etc. depends on the requests for production capacity;

We have plenty of embossing patterns for your choice, and you may also give us your own patterns to make the embosser.

Working Procedure: Embossing → cutting → interfolding

Main Features:

1. Slitting the raw paper with slitting roller, and then fold into gemel rectangle

2. Equipped with vacuum suction system and automatic counting and dividing system

3. synchronous belt driving system

4. The machine has the advantages of high speed, accurate counting, and low wastage

5. Pneumatic parent roll loading, with paper tension controller

6. Automatic lubricate key parts regularly (optional)

Main Parameters:

Machine Model	TZ-HC-2L	TZ-HC-3L	TZ-HC-4L	TZ-HC-5L	TZ-HC-6L
Unfolded Size of Facial Tissue	180~210 × 210mm (width is adjustable)
Folded Size of Facial Tissue	(90~105) × 210mm
Parent Roll Diameter	Φ1200mm
Parent Roll Width	420mm	630mm	840mm	1050mm	1260mm
Core Dia. of Parent Roll	Φ 76.2mm
Speed(sheets/minute)	1000~1800	1500~2700	2000~3600	2500~4500	3000~5400
Slitting System	Pneumatic dot slitting
Counting System	Stack by stack
Vacuum System	5~6KW(depend on final configuration)
Pneumatic System	3 HP air compressor, mini pressure 5kg/cm2 Pa(Prepared by client)
PLC Controller, Inverter	DELTA /MITSUBISHI/SIEMENS(option)
Main Motor Power	4~8KW (depend on final configuration)
Dimension (L×W×H)	5200×(1220~2420)×2000 mm (depend on final configuration)
Weight	3400~6000kg (depend on final configuration)

Ancillary Equipment:

1. Facial tissue cutter (optional)

2. Facial tissue packing machine(packed in poly bag or carton box)

For more technical details, pictures, and video please contact us……

Packaging & Shipping

Aftersales Service: we will send engineers / technicians to make commissioning at buyer’s factory, train the works well, and also supply the technical support for free and spare parts at good price always;

Guarantee Period: one year, during the Guarantee Period, the seller guarantee to solve all problems may occur due to machine's quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the Technician to Buyer's factory on seller's account if problem is serious and can't be solved by Buyer;

Payment Terms: T/T & LC;

Lead Time: 45~55 working days;

Packing: in seaworthy wooden case.
