Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
REALPARK
-
Model Number:
-
RPL-P05-C1
-
Product name:
-
License Plate Recognition
-
Resolution:
-
1920*1080P
-
Keyword:
-
Wireless P2p Cctv Ip Camera
-
Lens:
-
3.6mm
-
Feature:
-
Night Version
-
Type:
-
Digital Camera
-
Technology:
-
Pinhole
-
APP:
-
V380pro
-
Power Supply:
-
DC12V
Quick Details
-
Special Features:
-
Vandal-proof, Motion Detection, Waterproof / Weatherproof, PAN-TILT, One-way Audio, Low Power
-
Function:
-
PAN-TILT, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, One-way Audio, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
REALPARK
-
Model Number:
-
RPL-P05-C1
-
Product name:
-
License Plate Recognition
-
Resolution:
-
1920*1080P
-
Keyword:
-
Wireless P2p Cctv Ip Camera
-
Lens:
-
3.6mm
-
Feature:
-
Night Version
-
Type:
-
Digital Camera
-
Technology:
-
Pinhole
-
APP:
-
V380pro
-
Power Supply:
-
DC12V
Related Products
Product name:
1080p Anpr Lpr License Plate Recognition Camera 2mp 3mp 4mp Lpr Camera License Plate Recognition For Parking Lot
Product Description

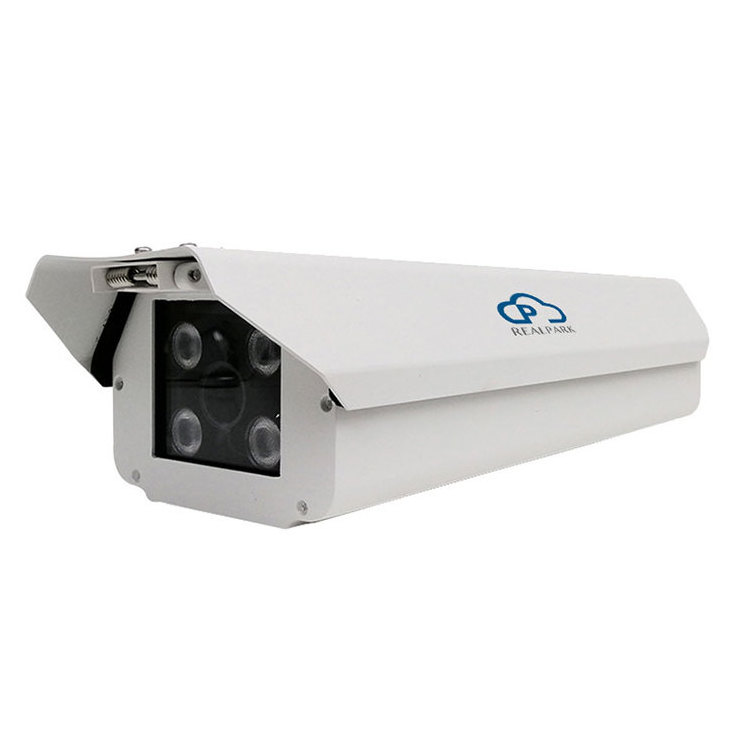

Product model: RPL-P05-C1
FHD vehicle detection integrated camera using a low-power high-performance ARM processor and a 2 megapixel low-light CMOS sensor, it is an intelligent device that integrates vehicle identification, camera, storage, and multi-interface input.
This product is specially designed for the parking lot industry based on embedded intelligent high-definition vehicle identification products, which can be widely used in various parking lot entrances and exits, community entrances and exits, highway entrances and exits.
Functional characteristics
All-day vehicle detection rate is higher than 99.9%;
Support multiple input interface configurations;
Video compression technology H.264 is used for video coding, and capture frames are JPEG encoded;
Built-in fill light; forced switching on the built-in fill light by segments; Support PC local recording;
Support TF card storage;
Supports three detection methods: coil detection, video detection, coil detection + video detection;
Support OSD information overlay function, support video/picture overlay watermark;
Support whitelist import and export function, you can do fuzzy matching on whitelist;
Support remote client control functions, parameter configuration, video preview, remote upgrade;
Support configuration file import backup;
Support manual key reset, one key to restore initial IP address, user name, password and restore default factory configuration;
Surge protection rating: 6KV;
Dimensions
Technical Parameter
|
Type
|
Project
|
Parameter
|
|
Intelligent Recognitio n
|
Vehicle detection rate
|
≥99.9%
|
|
|
Adapt to the speed range
|
0~30Km/h
|
|
|
Recognition angle
|
≤45°
|
|
Video input
|
Sensor type
|
CMOS
|
|
|
Lens and focal length
|
Zoom 2.8 ~ 12mm
|
|
|
Exposure time
|
1/100～1/10000s
|
|
Video output
|
Image size
|
1080P, 720P, 4CIF, CIF
|
|
|
Compression standard
|
H.264/JPEG
|
|
|
Compressed output bit rate
|
384Kbps to 4Mbps
|
|
|
Maximum frame rate
|
Main stream 25FPS, sub-stream 25FPS
|
|
|
Image setting
|
Adjustable shutter, gain, brightness, etc.
|
|
Business functions
|
Capture trigger type
|
Video, coil, video + coil
|
|
|
Output information
|
Vehicle big picture,vehicle small picture
|
|
|
OSD information overlay
|
Support, define time, location, etc.
|
|
|
Built-in fill light
|
Built-in LED fill light, adjustable brightness
|
|
|
One-button reset |
Short press 2 seconds to restore the default IP, username and password；Press and hold for 10 seconds to restore the
default IP, username and password, factory configuration |
|
|
Local video |
Support PC local recording |
|
External interface
|
The internet
|
1 RJ45 100M adaptive network interface
|
|
|
Communication
|
2 RS485 interfaces
|
|
|
Power supply
|
1 AC90~ 265V voltage interface
|
|
|
Input
|
2-way switch/level, 2-way switch input
|
|
|
Output
|
2-way switch output interface (relay)
|
|
|
Reset
|
1 reset button interface
|
|
|
Storage
|
1 TF card interface
|
|
|
USB
|
1 standard A type USB interface
|
|
Working environme nt
|
Total power
|
Turn off the light <4W, turn on the light <5W
|
|
|
Operating temperature
|
-30 to +75 ℃
|
|
|
Working humidity
|
<95% (no condensation)
|
|
|
Protection level |
IP65 |
|
Appearanc e
|
Size (mm)
|
443×146×105
|
|
|
Weight (Kg)
|
1.8
|
Details Images
Company Introduction
Our Service
1.We offer OEM services. Can print your own logo on the License Plate Recognition.
2.For all your inquires about us products , we will reply you in detail within 24 hours.
3.Good Quality: We have strict quality control system. Good reputation in the market.
4.We own professional team have professional attitude to recommend products and services, We will recommend to you that according to your requirements ;
After sending, we will track the products for you once every two days, until you get the products.When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Certifications
FAQ
1.What is the strength of your company in this industry?
We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current.
3. How about Quality Control?
4. How about some special design?
5. Do you have agency for after-sales service?
6. What time do you need to delivery?
7. How about the payment method?
Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand
REALPARK
is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For
installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment. Customized products: 50%
deposit, 50% balance payment before shipment. Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment. T/T, PayPal, Alibaba Credit guarantee order.
deposit, 50% balance payment before shipment. Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment. T/T, PayPal, Alibaba Credit guarantee order.
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
